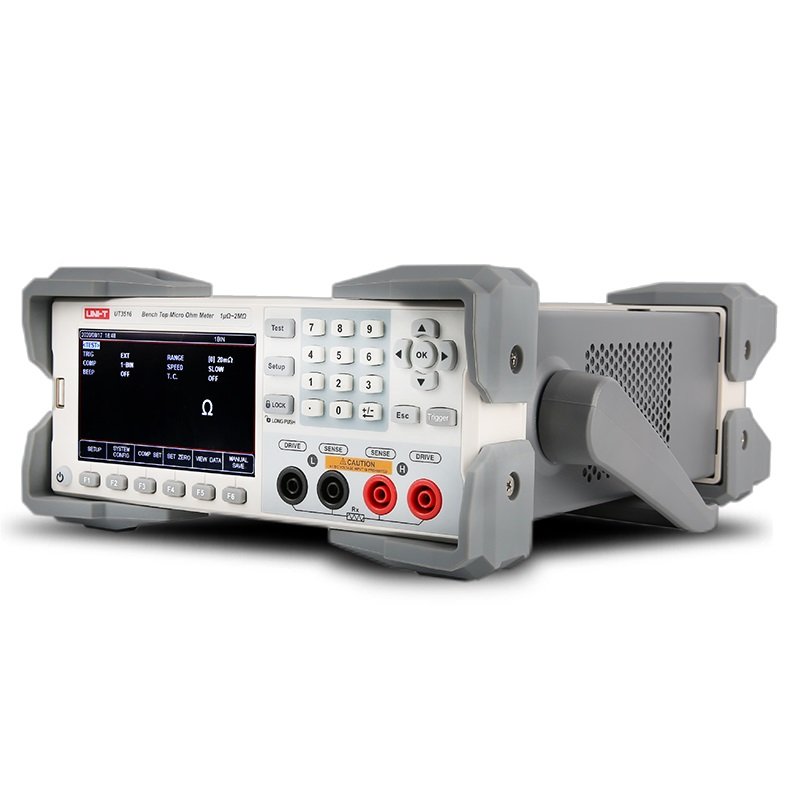

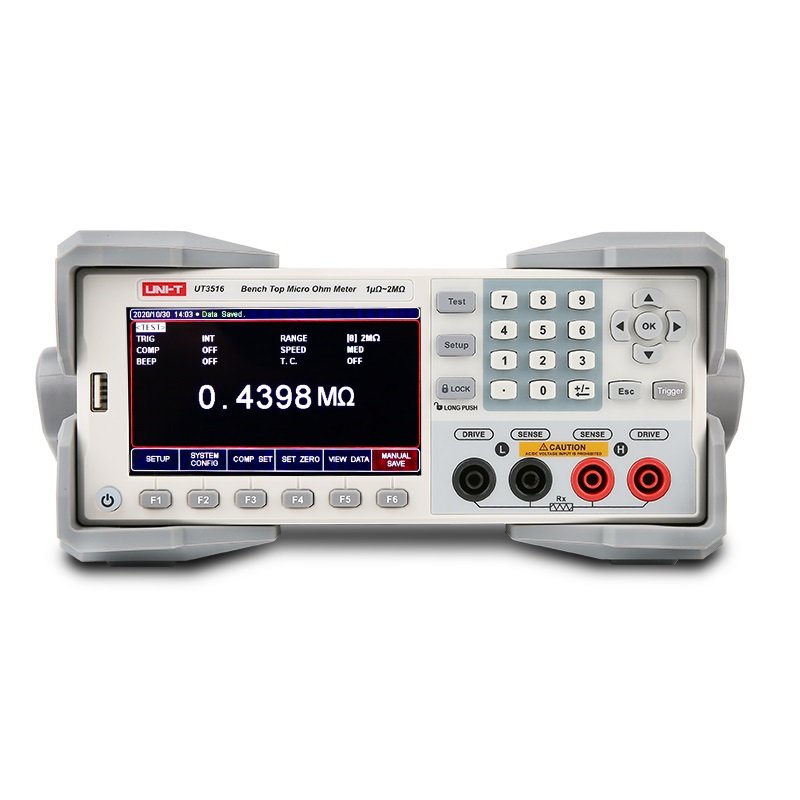

UNI-T Micro Ohm Meters UT3510 SERIES
UNI-T Micro Ohm Meters UT3510 SERIES
UNI-T Micro Ohm Meters UT3510 SERIES

UNI-T Micro Ohm Meters UT3510 SERIES

MEASURING RANGE 20kΩ/2MΩ
MAX. TEST RATE 60 times/s
CONNECTIVITY HANDLER，USB,RS-232
SIZE ½ 2U DISPLAY 4.3” TFT LCD

Micro ohm meter is a digital instrument for measuring micro resistance. Its basic principle is that it is measured by the four-wire method of Kelvin principle. Its advantage is that the measured data are close to the real resistance value of the resistance in the working state, and the influence of the resistance of the test line itself is eliminated. Therefore, when measuring micro-resistance, Micro Ohm Meter is more responsive to the real resistance. UNI-T Micro Ohm Meter has the advantages of simple operation, time saving, digital display, easy for operators and so on.

Get a quote

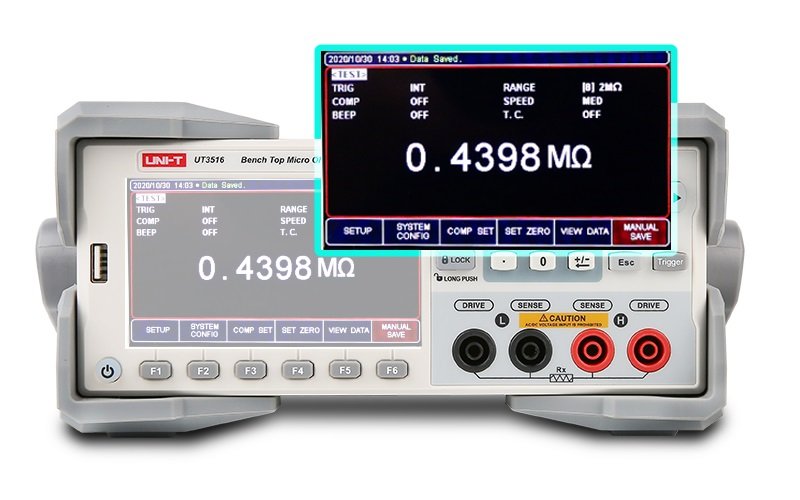

UNI-T Micro Ohm Meters

UNI-T Micro Ohm Meters

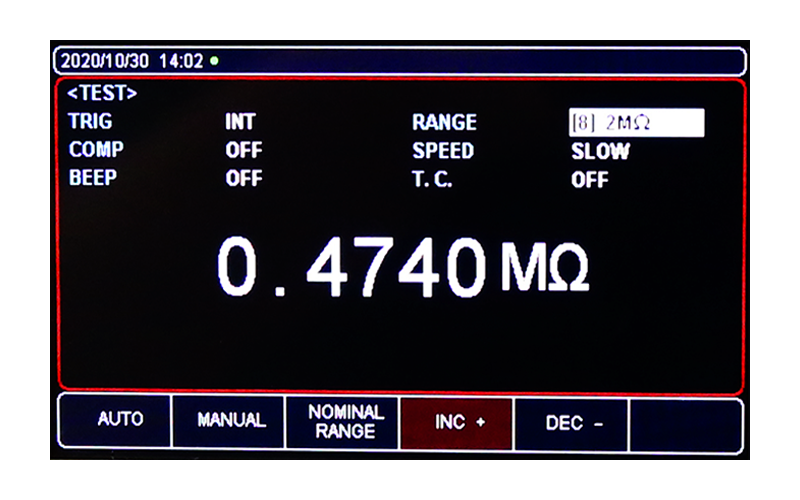

4.3 inch LCD screen display

  • 4.3 inch LCD screen display
  • 0.05% accuracy, with 20000 readings
  • UT3513 resistance test range: 1μΩ~20kΩ
  • UT3516 resistance test range: 1μΩ~2MΩ

4.3 inch LCD screen display

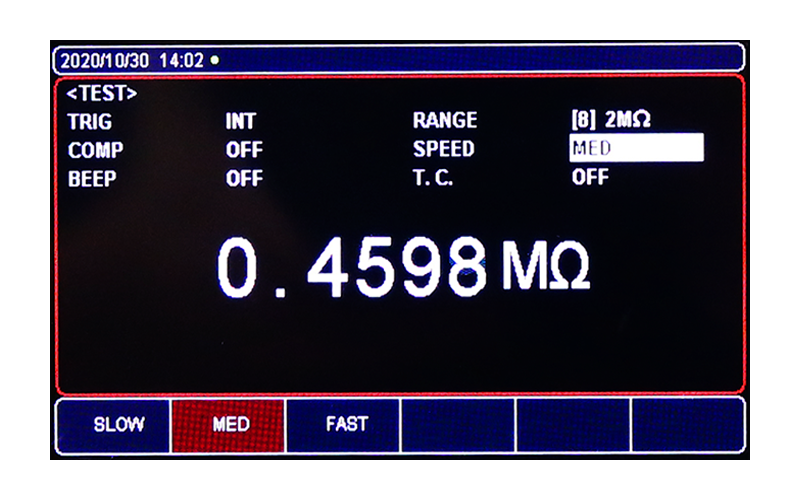

Range mode

The instrument can realize automatic, manual, and nominal range test modes

Range mode

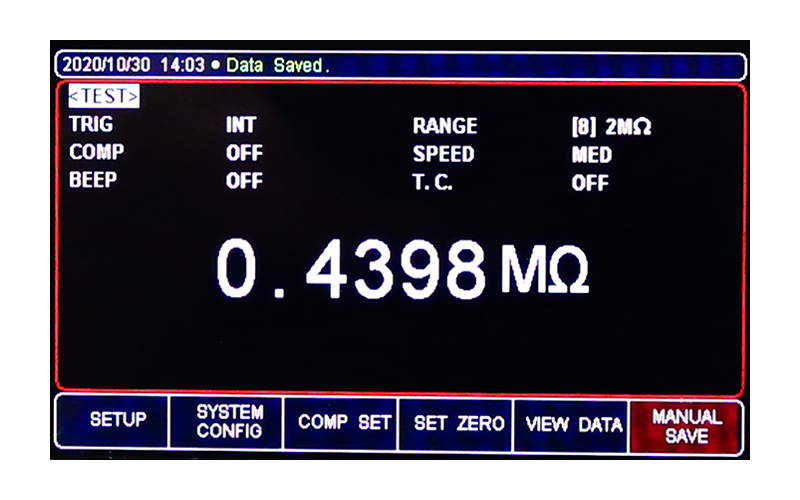

Optional test r speed

  • Three test speeds:
  • Slow speed: 3 times/sec.
  • Medium speed: 18 times/sec.
  • Fast: 60 times/sec.

Optional test r speed

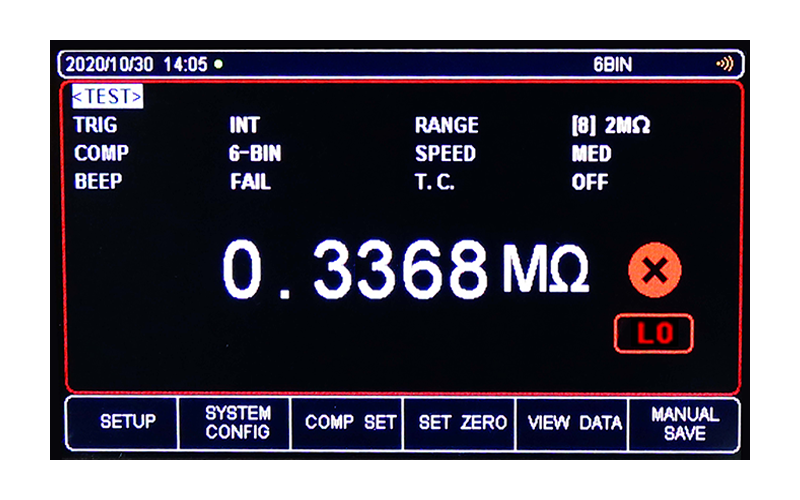

File management, saving and browsing data For the measured display value, it can be quickly browsed on the screen of the instrument after manual saving. File management allows users to save settings to 10 files, which is easy to read when starting up or changing specifications.

File management

Comparator function

  • UT3516 has 6-gear sorting function, and UT3513 has 1 set of comparator functions.
  • Built-in 10-level comparator output (UT3516): 6 qualified files (BIN1~BIN6),
  • 3 unqualified files (NG, NG LO, NG HI, and 1 total qualified file (OK).
  • Three ways to select the sound: off, qualified, unqualified Comparison method:
  • direct reading comparison, absolute value tolerance, percentage tolerance.

Comparator function

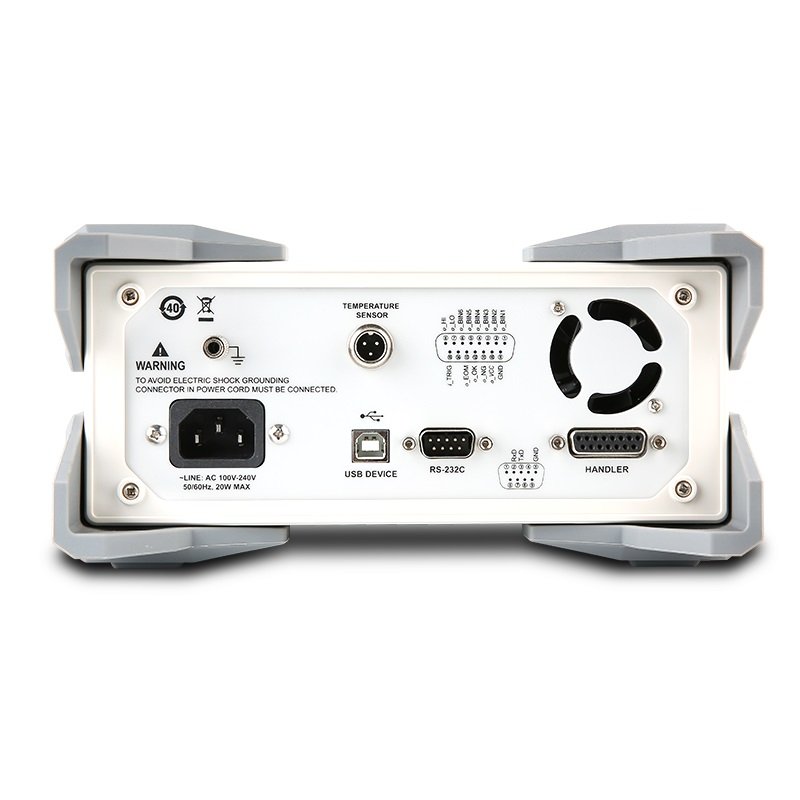

Configure rich interfaces

  • RS-232/RS-485 interface:  Use SCPI and Modbus RTU protocols to communicate with computers,  PLCs or WINCE devices to efficiently complete remote control and data acquisition functions.
  • USB Device: It can simplify the communication between the computer and the instrument.
  • HANDLER interface:  used to realize online operation to facilitate automatic control with user system
  • control components Temperature compensation sensor input interface: the instrument has a built-in temperature compensation interface to compensate for test errors caused by ambient temperature
  • USB Host interface: used to save data or screenshots
