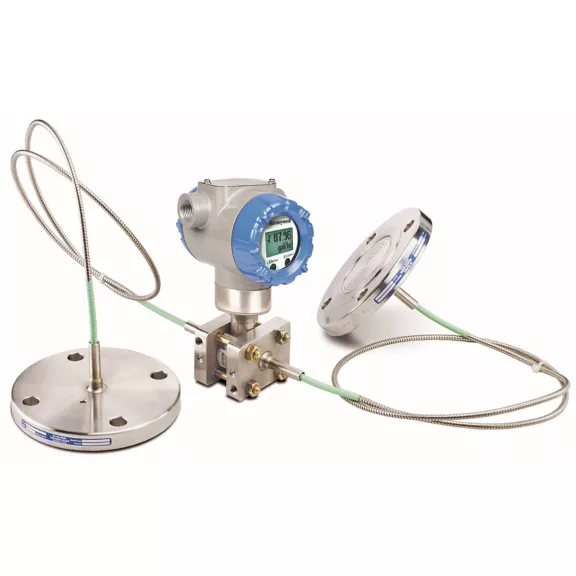

Remote Diaphragm Transmitters – SmartLine STR700
SmartLine® ST700 Remote Diaphragm Seal Transmitters provide accurate measurement in a wide variety of applications involving corrosive or high-temperature process fluids.
SmartLine® ST700 Remote Diaphragm Seal Transmitters provide accurate measurement in a wide variety of applications involving corrosive or high-temperature process fluids.
With better performance, modular construction, additional diagnostics and the best integration features, Honeywell SmartLine® transmitters help you reduce project costs and startup time, avoid unplanned downtime, improve product quality, reduce spare parts inventory and shorten time to repair. Helps you get the right instrument for your application. The tool enables error-free selection and validation of the instrument through efficient online collaboration. The tool documents your selection inputs and helps you share it with others. The ordered instrument arrives fully preconfigured, shortening commissioning time.
Uses piezoresistive sensor technology with on-chip temperature compensation for high accuracy and stability.
Supports static pressure & temperature compensation automatically.
Accuracy: up to ± 0.075% of span (standard) for many models.
Rangeability / Turndown ratio: up to 100:1.
STR73D / STR735D: –100 … +100 psig (–7 to +7 bar) span 1 … 100 psig (0.07 to 7 bar).
STR74G / STR745G: –500 … +500 psig (–35 to +35 bar) span 5 … 500 psig (0.035 to 35 bar).
Honeywell supports a variety of remote-seal configurations:
Process Solutions
Flush flange seals
Extended diaphragm seals
Pancake seals
Sanitary seals
Chemical-tee / Taylor‑wedge seals
Threaded connection seals
Saddle seals
Calibration rings
Capillaries: stainless steel armor, PVC coated
2″ stainless nipples, welded meter body
HART® (Version 7)
Honeywell Digitally Enhanced (DE)
FOUNDATION™ Fieldbus
Comprehensive on-board diagnostics.
Integral dual-seal design for safety per ANSI/NFPA 70-202 and ANSI/ISA 12.27.0.
Overpressure protection.
Functional Safety: SIL 2 / SIL 3 capable.
Alphanumeric LCD display.
External zero, span, and configuration capability.
Polarity-insensitive electrical connections (i.e., easier installation, less risk of wiring errors).
Designed to work with harsh / high-temperature process fluids.
Modular design enables different remote-seal configurations depending on process requirements.
Compatible with Experion® PKS (Honeywell control system) for tight integration.
Complies with SIL 2 / SIL 3 for functional safety.
Meets ANSI/NFPA 70-202 and ANSI/ISA 12.27.0 safety standard for dual-seal design.
