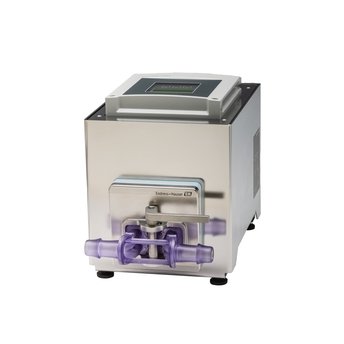

Single-use specialist for Biotech applications, with a remote version with up to 4 I/Os. Modern fieldbus communication protocols (2-wire). Highest measurement performance for liquids in single-use processes for the Life Sciences Industry.
Benefits
- Best-in-class measuring accuracy – Coriolis technology with multivariable measurement
- Highest turndown ratio – one sensor fits all line sizes of disposable
- cGMP compliance – designed according to the latest standards and guidelines, equipped with required attributes and documentation
- Simple, fast commissioning – one-hand mounting and automated calibration data transfer
- Self drainability or air bubble escape – thanks to different mounting angles
- No field calibration needed – automated verification with integrated Heartbeat Technology
- Digital integration – modern single pair Ethernet based communication protocols
Nominal diameter range
¹⁄₈” to 1″
Wetted materials
Measuring tubes: Stainless steel 1.4435, 316L
Hose connection nipple: Makrolon Rx 1805 polycarbonate
Measured variables
Mass, density, temperature
Max. measurement error
Mass flow (liquid): ±0.5%
Measuring range
0 to 75 kg/h (0 to 165,3 lb/min)
Max. process pressure
6 bar (87 psi)
Medium temperature range
3 to 60°C (37.4 to 140°F)
Ambient temperature range
5 to 40°C (41 to 104°F)
Transmitter housing material
Aluminum, AlSi10Mg, coated
Degree of protection
Transmitter: IP66/67, Type 4X enclosure
Sensor: IP54
Display/Operation
4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Outputs
“4 outputs:
4-20 mA HART (active/passive)
4-20 mA WirelessHART
4-20 mA (active/passive)
Pulse/frequency/switch output (active/passive)
Double pulse output (active/passive)
Relay output”
Inputs
Status input
4-20 mA input
Digital communication
Modbus RS485, PROFINET over Ethernet-APL
Power supply
AC 100 to 230 V / DC 24 V (non-hazardous area)
Product safety
CE, C-tick, EAC marking
Functional safety
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Hygienic approvals and certificates
cGMP compliance, ASME BPE, BPOG, FDA
Sensor features
One sensor fits all DN – single variant with 4 disposable line sizes provides highest turndown ratio . One-hand mounting of disposable – easy commissioning due to intuitive clamping mechanism. Mounting angle – self drainabillity or air bubble escape. Disposable made of 1.4435 (316L) and polycarbonate. Fully traceable cGMP compliance. One sensor fits four line sizes: ¹⁄₈ to 1″.
Transmitter features
Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.
