WATERFLUX 3300

Electromagnetic flowmeter for advanced water applications

High accuracy (±0.2%) for water consumption metering and distribution networks
No inlet/outlet runs needed
CT: MI-001, OIML R49 up to DN600 / 24″
High accuracy (±0.2%) for water consumption metering and distribution networks
No inlet/outlet runs needed
CT: MI-001, OIML R49 up to DN600 / 24″

Get a quote

The WATERFLUX 3300 is an electromagnetic flowmeter (EMF) for demanding water applications and custody transfer operations (MID MI-001, OIML R49; MI-004). The high-end meter is particularly suitable for applications requiring high accuracy and extensive diagnostics. With its rectangular and reduced cross-section the EMF enables a stable measurement even at low flow rates. This way, the WATERFLUX 3300 offers a much larger turndown ratio (1000:1) than mechanical flowmeters (e.g. turbine meters) in drinking water distribution networks.

Product positioning

For advanced water and custody transfer (CT) applications

Measurement principle

Electromagnetic

Measured media

Liquids

Operating conditions

Process pressure

max. 16 barg/230 psig

Process temperature

-5…+70°C/+23…+158°F

Materials

Liner Polyamide polymer 11 (Rilsan®)

Process connections

Flange connections

EN (1092-1): DN25…600

ASME (B 16.5): 1…24″

JIS (B 2220): 25…600A

Thread connections Male:

G1, G1½, G2

Approvals/Standards

Certificates/Approvals Custody transfer (CT) MI-001, MI-004, OIML R49

Certificates/Approvals Marine ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS

Certificates/Approvals Potable Water DVGW, NSF, TZW, KTW, WRAS, KIWA, ACS

Communication

Analogue outputs 4…20 mA

Discrete outputs Limit switches, Pulse, Frequency, Status

Digital outputs FOUNDATION™ Fieldbus, HART®, Profibus-PA, Profibus-DP, Modbus RTU, PROFINET

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

Bi-directional flow measurement over a wide dynamic range
Unique rectangular sensor design for good low flow performance
Available with patented reference electrode: no grounding rings needed
Only ±0.2% or ±1mm/s error of measured value (MV)
Extensive sensor and process diagnostics (incl. NE 107)
No need for measurement chambers
Rilsan® coated sensor tube
Meets potable water standards: ACS, DVGW, NSF, TZW, WRAS etc.
With CT approval for heat meter applications (MID MI-004)
Maintenance-free: no moving parts, obstruction or wear

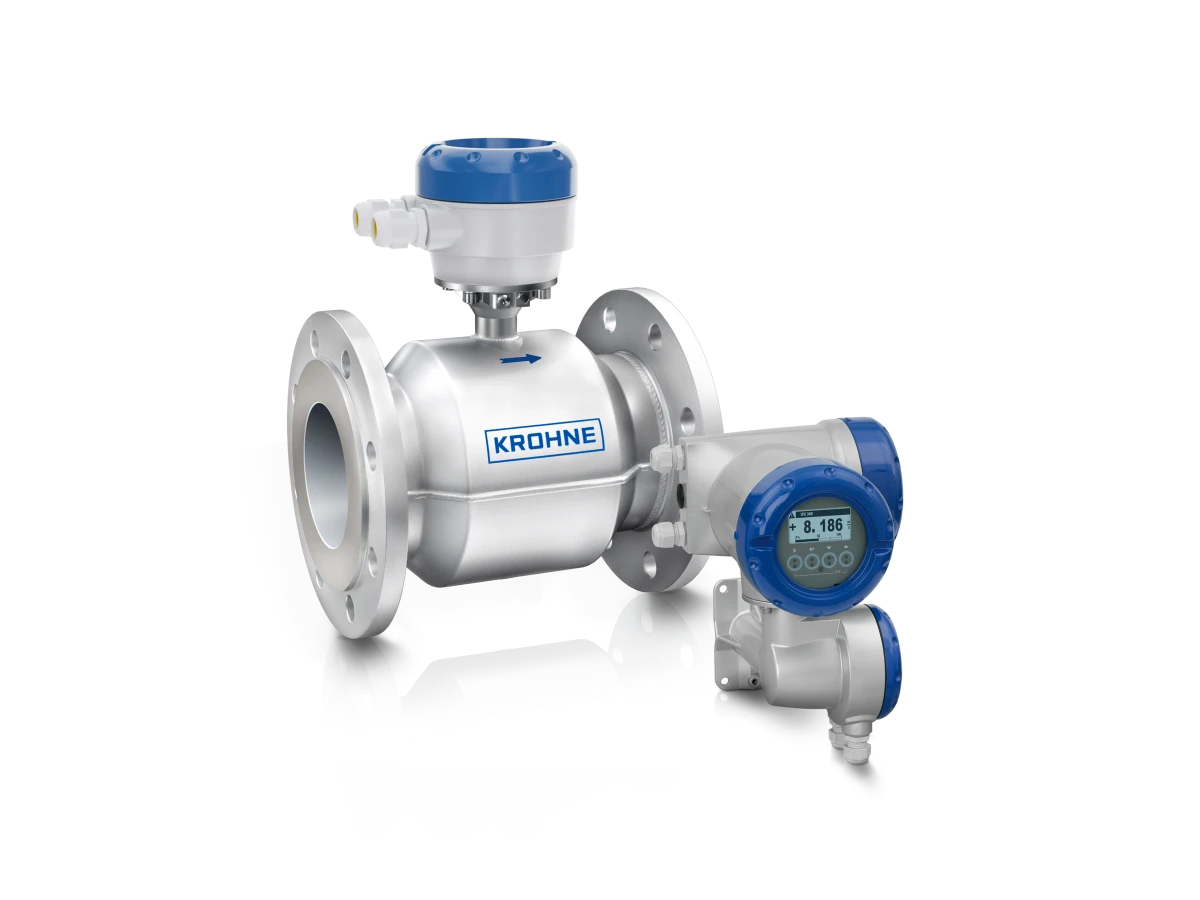

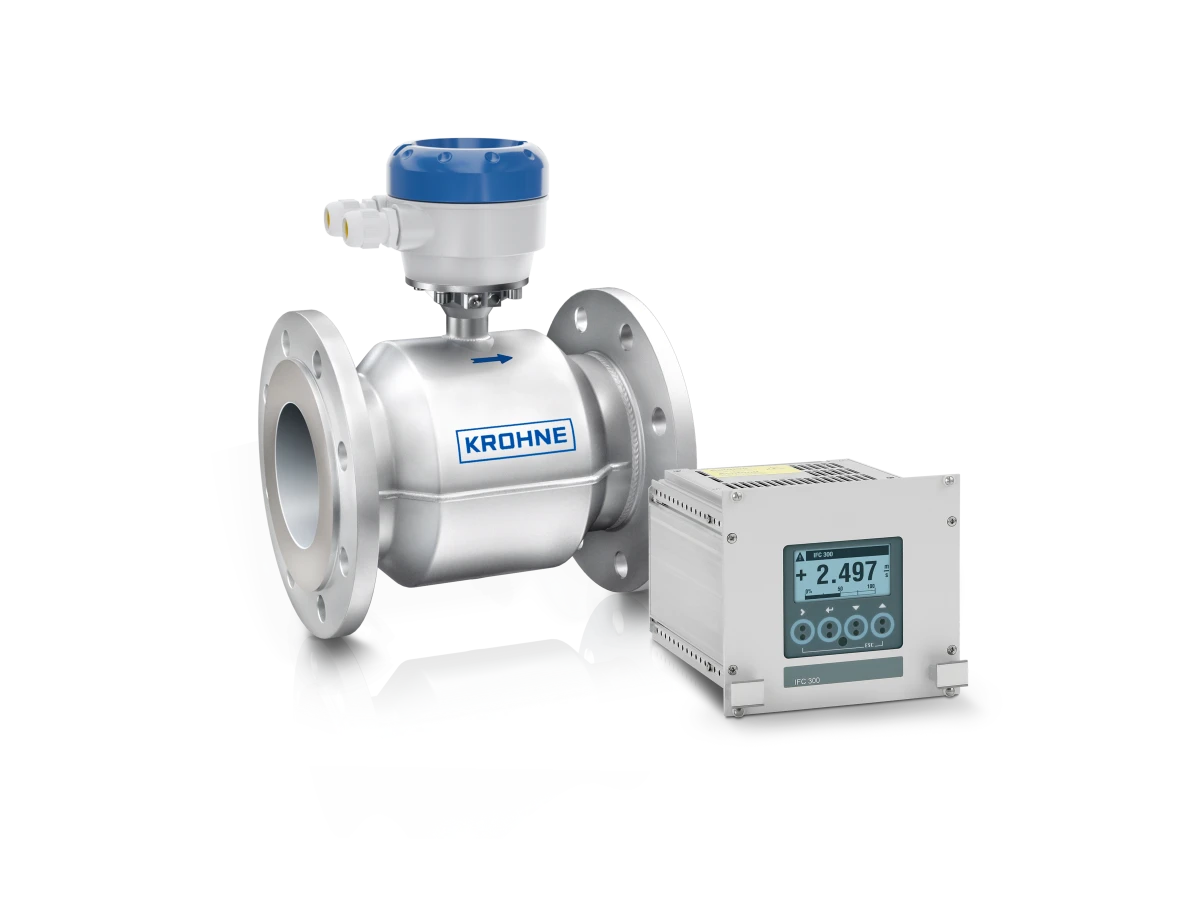

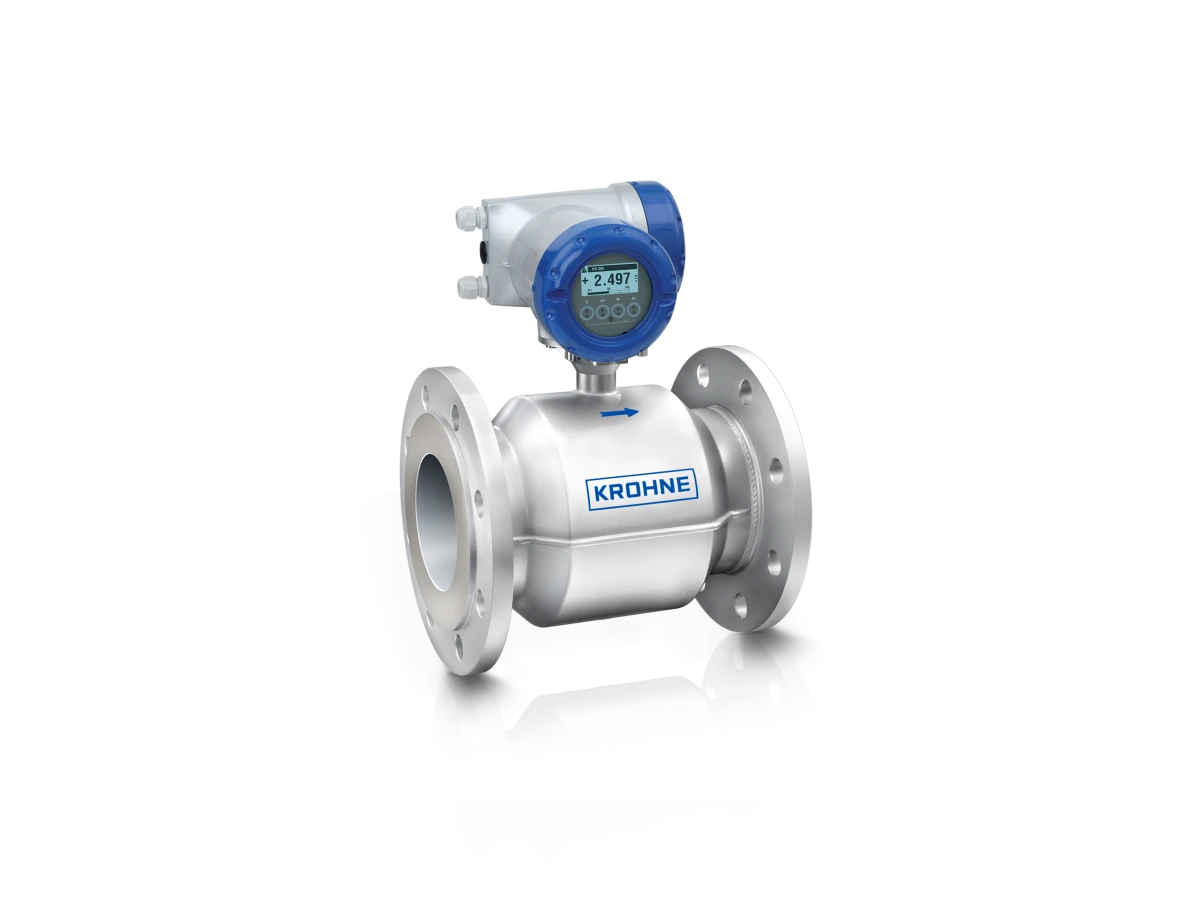

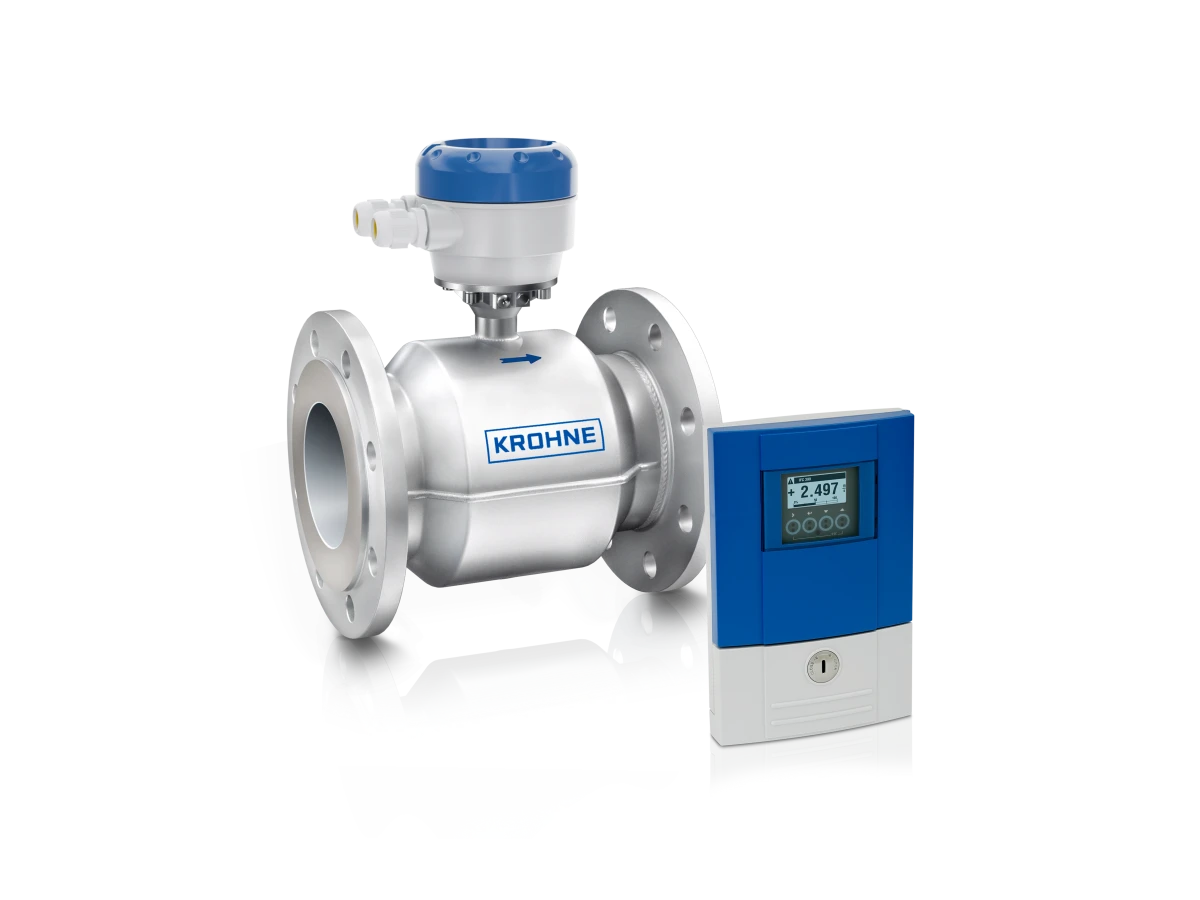

Compact, rack or field mounted version
On-site verification of flowmeter with OPTICHECK service tool
