Vortex flowmeter VortexMaster FSV450

VortexMaster FSV450 is the universal vortex meter for high-end flow applications. It uses a two-wire transmitter with leading-edge DSP technology with enhanced flow computer functionality. Signals from remote sensors like pressure, temperature, or density can be read by an integrated analog 4 … 20 mA interface and computed directly with the flow and temperature signals measured by the device itself. FSV450 is ideal for direct mass flow or standard flow of gasses and liquids or direct mass and energy flow on saturated and overheated steam.

Get a quote

VortexMaster flowmeters are used for accurate measurement of the flow of gas, liquid, and steam over a wide temperature range. Vortex meters are ideal for measuring low viscose liquids, demineralized water, and direct steam mass flow, and they are ideal for cost-effective, integral temperature measurement. VortexMaster FSV450 is the advanced version with additional analog input for mass or energy flow measurement, available with an integral or remote transmitter with up to 30 m (98 ft.) cable length. Because of the optional inputs, discrete-flow computers are no longer needed in many applications. VortexMaster FSV450 is available with multiple communication protocols, such as

4 to 20mA / HART 7,

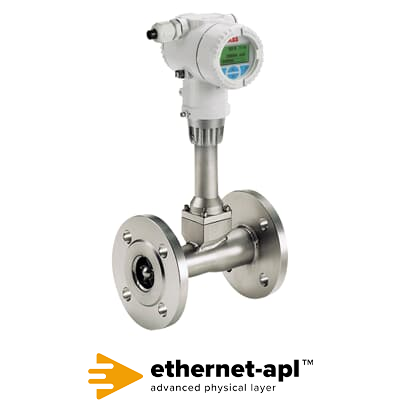

Modbus TCP and Profinet via Ethernet -APL,
Modbus RTU, Profibus PA, and FOUNDATION Fieldbus.

Optionally available:

Smart HMI with backlight and Bluetooth functionality for easy meter setup (Ethernet-APL device only)

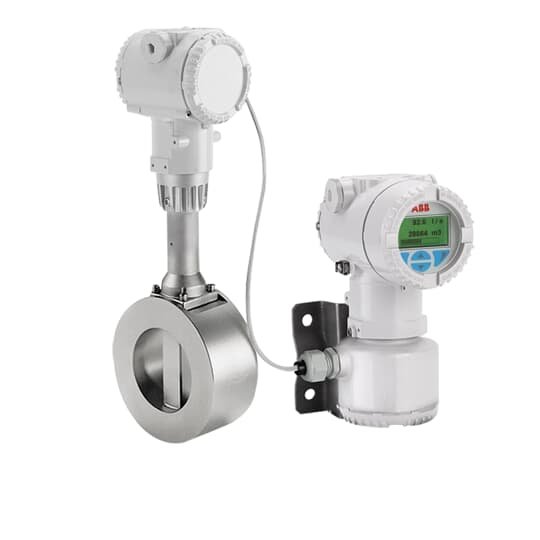

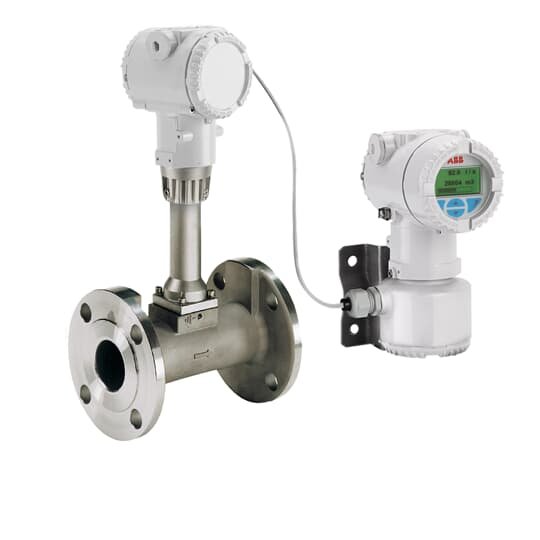

Remote transmitter with up to 30m (98 ft.) cable length
Stainless steel transmitter housings
SIL 2

Intuitive operation

Easy Set-up function

Clear text display

Meter configuration through the front glass with a closed cover

Bluetooth functionality (Smart HMI only) for My Device Manager App

Accuracy for liquids

+/- 0.65% of rate

Accuracy for gases and steam

+/- 0.9% of the rate

Process connection/meter sizes

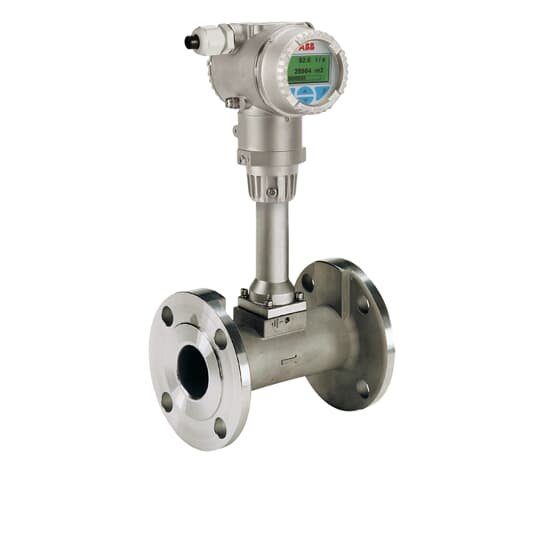

Flange-mount design / DN 15 to 300 (1/2 to 12 in.)

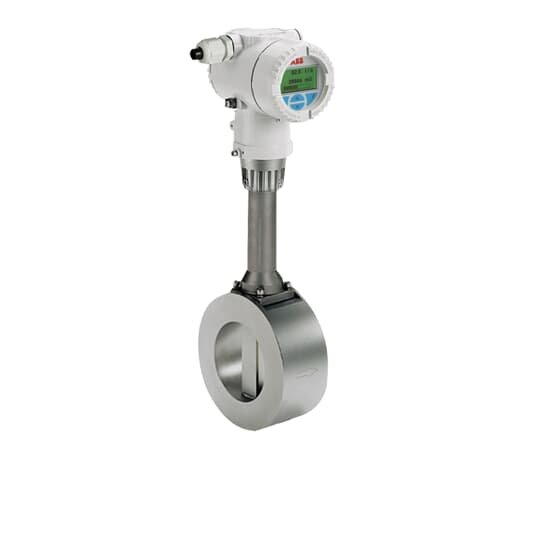

Wafer type design / DN 25 to 150 (1 to 6 in.)

Approvals for explosion protection

ATEX, IECEx, cFMus, NEPSI

SIL2-certified in accordance with IEC 61508

Output/communication

4 to 20 mA / HART 7

Modbus TCP, Profinet, Webserver via Ethernet-APL

Modbus RTU-RS485, Profibus, FOUNDATION Fieldbus

Optional binary output

For use as a limit switch, pulse output, or frequency output

Optional input from the field

Pressure, temperature or density

Features

Versatile measurement – suitable for volumetric, mass, and energy flow of liquids, gases, and saturated or superheated steam.
2-wire transmitter with advanced digital signal processing (DSP) for stable and accurate measurement.
Integrated analog input (4–20 mA) for external sensors (e.g., pressure, temperature, or density) — allows direct mass and energy calculation without a separate flow computer.
