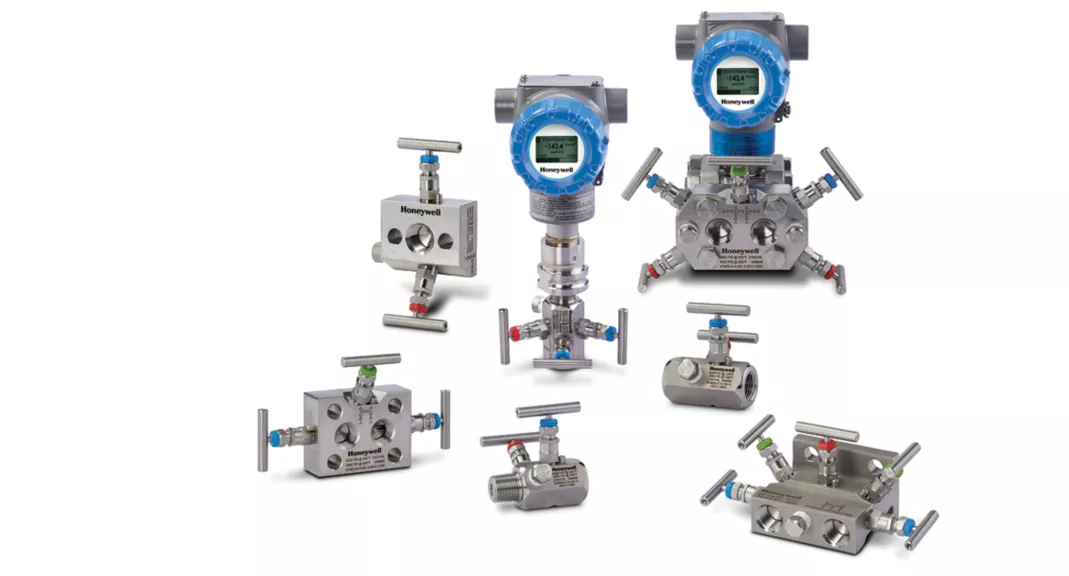

SmartLine Manifolds

SmartLine manifolds come with built-in safety mechanisms, are factory leak tested and certified to ensure safe, reliable and efficient operations and maintenance of process applications. Available as standalone parts or as an integrated, factory tested and certified assembly along with SmartLine Pressure Transmitters, these essential accessories help minimize total cost of ownership for the users, original equipment manufacturers (OEMs) and EPC contractors.

Get a quote

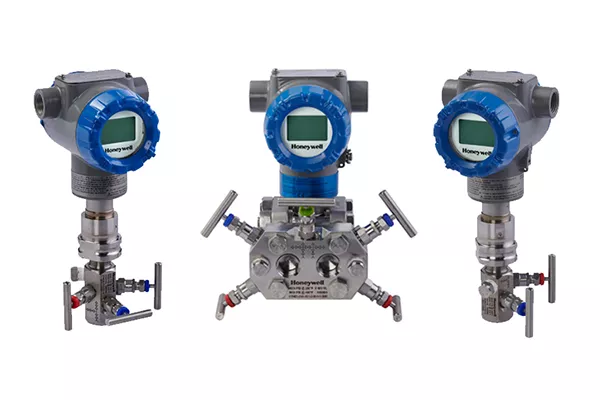

SmartLine Manifolds include a wide range of options in different configurations to suit pressure, differential pressure and level measurement transmitters. Can be supplied as stand-alone or as a factory-integrated assembly with the SmartLine transmitter → lowers installation risk / cost. Mounting brackets available to simplify installation. Designed to help with zero checking, calibration, and isolation for maintenance, without disturbing the process loop. Ergonomic valve handle design: hidden screw in T-bar handles prevents accidental loosening; handles designed to be comfortable and safe.

Block and bleed

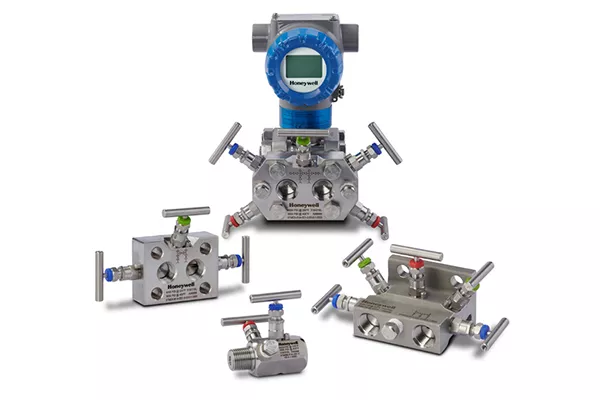

2, 3 and 5-valve manifold configurations

Wide and compact body styles

Traditional and wafer style variants

Body material

SS316/ SS316L/ Monel / Hastelloy / Inconel / Carbon Steel and more…

Packing material

PTFE/ graphite

Process temperature

up to 450 °C

Process pressure

6000 psi / 10000 psi

Manufacturing standards / compliance

ASME/ ISO/ MSS/ NACE/ NORSOK/ EN 10204 3.1

Features

Full traceability of materials.
Each unit tested, certified, and documented before shipping.
User‑Oriented Design
Valve-head placements are optimized to reduce risk of finger pinch.
Handles (“T‑bar”) have hidden screws for safe, smooth operation.
Low operating torque, anti-blowout shaft, and safety back-seating for reliable use.
