Scalable DP Level Measurement Platform
Make the most of your operation with the scalable Rosemount 3051S DP Level platform and enhance your measurement performance. Innovative capabilities include Electronic Remote Sensor (ERS™) Systems and Thermal Range Expanders for reliable process insight in extreme environments. This instrumentation also features a full range of diaphragm seals, enabling level measurements in a wide variety of process conditions.

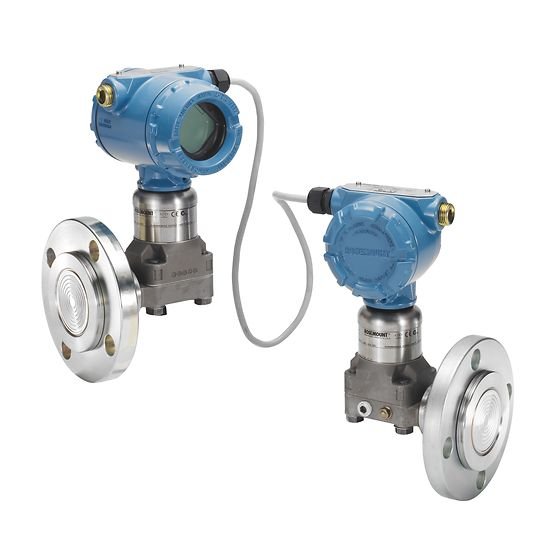

ERS™ System
Electronic Remote Sensor (ERS™) Systems provide DP Level measurements by calculating differential pressure from individual pressure readings. This solution eliminates the need for long capillaries and heat tracing, reducing response time by up to 90%. The sensor system is synchronized for DP calculation, easily connects with cable, and can be independently installed and serviced for simple installation and maintenance.
Thermal Range Expander
Thermal Range Expander enables pressure and level measurements in high temperature processes. This seal system uses two different fill fluids, extending the operating range of the transmitter from temperatures ranging from -75 °C (-103 °F) to 410 °C (770 °F). With an improved response time of up to 46%, thermal range expanders simplify installation and reduce cost by eliminating impulse piping and heat tracing.
Wireless Technology
With Wireless Technology, you can add new measurement points easily and cost-effectively in many areas of the plant including those that were previously inaccessible. This information allows you to better optimize your level measurements and reduce personnel exposure to hazardous environments. Get coverage over larger areas with long-range communication options up to 1 km (2/3 mi) between devices.
Diaphragm Seal System
The Diaphragm Seal System protects transmitters from hot, cold, corrosive, erosive or viscous processes. Seals are available with differential, gage and absolute pressure transmitters. Advanced welding and assembly techniques prevent weld corrosion and improve seal strength to deliver reliability and performance in the toughest applications.
Max. Operating Pressure
Up to 10,000psi (689.48 bar)
Process Temperature Range
Based on fill fluid – Maximum 770°F (410°C), Minimum -157°F (-105°C)
Communication Protocol
4-20 mA HART®
Seal System Type
Direct Mount
Transmitter Connection
Welded-Repairable, All Welded
Process Connection
Flanged: ANSI/ASME, EN/DIN, GOST, & JIS
Threaded: NPT, DIN, ISO
Hygienic
Process Wetted Material
316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST, see full specs for complete list of materials
Diagnostics
Basic Diagnostics
Certifications/Approvals
SIL 2/3 certified to IEC 61508 by an independent 3rd party, 3A, NSF, NACE®, hazardous location, see full specs for complete list of certifications
Features
- Provides DP Level measurements with a faster response time than traditional systems
- Sensors are independently installed without heat tracing and insulation to offer simple installation
- Digital architecture delivers stable measurement for applications with excessive temperature variation
- Each sensor can be independently serviced for simplified maintenance
- Entire system utilizes a single 2-wire, 4-20 mA HART® loop for straightforward system integration
- Graphical interface of device dashboard offers simple configuration, commissioning and troubleshooting
- Additional monitoring information of static pressure and sensor module temperature provide improved process insights
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
