Withstands High Static Pressures
Unconventional oil and gas recovery methods, such as deep water offshore operations and enhanced oil recovery, require process measurement equipment to maintain tight control under extremely harsh conditions. Many of these applications require flow measurements using differential pressure (DP) sensors that withstand static pressures up to 15,000 psi (1,034 bar).

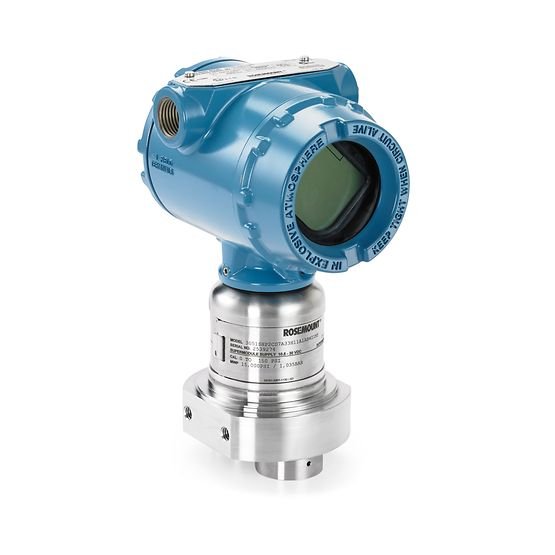

An innovative, compact transmitter design incorporating Emerson’s Coplanar™ SuperModule™ technology withstands high pressures of up to 15,000 psi, while delivering unmatched performance and reliability in your most critical operations.
Advanced Capabilities
MultiVariable Measurement
• Reduce installation and wiring costs
• Increase accuracy with compensated flow measurement
• Callendar-Van Dusen temperature sensor matching can increase flow accuracy by 80%
Advanced Diagnostics
• Gain insight from the process to the host with unmatched diagnostic coverage
• Prevent on-scale failures by diagnosing electrical loop issues with Loop Integrity diagnostics
• Extend diagnostic coverage to Safety Instrumented
Systems with IEC 61508 SIL 2/3-capable design
WirelessHART® Communication
• Quickly deploy new pressure and flow measurements in 70% less time
• Eliminate wiring design and construction complexities to lower costs by up to 60%
Warranty
Up to 15-year limited warranty
Rangedown
Up to 150:1
Communication Protocol
4-20 mA HART, WirelessHART®, FOUNDATION™ Fieldbus
Measurement Range
Up to 150 psi (10.34 bar) Differential with maximum working pressure up to 15,000 psi (1034 bar)
Process Wetted Material
Alloy C-276
Diagnostics
Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line
Certifications/Approvals
SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE, hazardous location, see full specs for complete list of certifications
Features
- SuperModule design withstands static lines pressures of up to 15000 psi (1,034 bar)
- Multivariable transmitter capable of differential pressure and temperature measurements
- Innovative, compact, coplanar platform reduces up to 60% of the weight versus today’s high pressure transmitters
- All-welded, hermetic design of the SuperModule platform resists overpressure and line pressure effects to ensure 0.055% accuracy
- Robust design, backed by 10-year stability, withstands the harshest production environments
- Integrates seamlessly with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibility
- Advanced diagnostics offer comprehensive diagnostic coverage from the process to the transmitter to the host
- SIL 2/3 certified to IEC 61508 by an 3rd party and prior-use certificate of FMEDA data for safety installations
