Withstands High Static Pressures
Unconventional oil and gas recovery methods, such as deep water offshore operations and enhanced oil recovery, require process measurement equipment to maintain tight control under extremely harsh conditions. Many of these applications require flow measurements using differential pressure (DP) sensors that withstand static pressures up to 15,000 psi (1,034 bar).

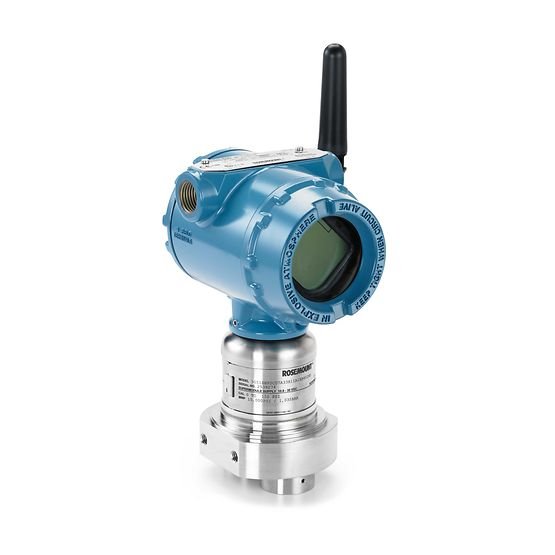

An innovative, compact transmitter design incorporating Emerson’s Coplanar™ SuperModule™ technology withstands high pressures of up to 15,000 psi, while delivering unmatched performance and reliability in your most critical operations.
Advanced Capabilities
MultiVariable Measurement
• Reduce installation and wiring costs
• Increase accuracy with compensated flow measurement
• Callendar-Van Dusen temperature sensor matching can increase flow accuracy by 80%
Advanced Diagnostics
• Gain insight from the process to the host with unmatched diagnostic coverage
• Prevent on-scale failures by diagnosing electrical loop issues with Loop Integrity diagnostics
• Extend diagnostic coverage to Safety Instrumented
Systems with IEC 61508 SIL 2/3-capable design
WirelessHART® Communication
• Quickly deploy new pressure and flow measurements in 70% less time
• Eliminate wiring design and construction complexities to lower costs by up to 60%
Warranty
Up to 15-year limited warranty
Rangedown
Up to 150:1
Communication Protocol
WirelessHART®
Measurement Range
Up to 150 psi (623 bar) Differential with maximum working pressure up to 15000 psi (1034 bar)
Process Wetted Material
Alloy C-276
Diagnostics
Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line
Certifications/Approvals
NACE, hazardous location, see full specs for complete list of certifications
Update Rate
1 sec. to 60 min., user selectable
Power Module Life
Up to 10-year life, field replaceable (order separately)
Wireless Range
Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)
Features
- SuperModule design withstands static lines pressures of up to 15000 psi (1034 bar)
- WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
- Innovative, compact, coplanar platform reduces up to 60% of the weight versus today’s high pressure transmitters
- All-welded, hermetic design of the SuperModule platform resists overpressure and line pressure effects to ensure 0.055% accuracy
- Best-in-class wireless accuracy and stability for process automation
- Robust design, backed by 10-year stability, withstands the harshest production environments
- Easy installation enables quick instrumentation of measurement points without the cost of wiring
- SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
