Proline W 400 ultrasonic clamp-on flowmeter

Proline W 400 ultrasonic clamp-on flowmeter

Prosonic Flow W 400 is the ultrasonic clamp-on flowmeter of choice for safe, cost-effective and maintenance-free measurement of conductive and non-conductive liquids. It measures flow noninvasively and bidirectionally, independent of pressure, density and conductivity, and without process interruption. FlowDC makes mounting as flexible as never before. The specified accuracy is maintained at an inlet run of only 2 x DN, even in the case of disturbed flow profiles. Special coupling pads make this ultrasonic clamp-on system maintenance-free during the entire product life cycle. Heartbeat Technology provides continuous process transparency with its diagnostic, verification and monitoring functions. This way, build-up can be detected before it affects operation.

Get a quote

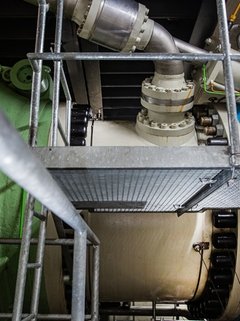

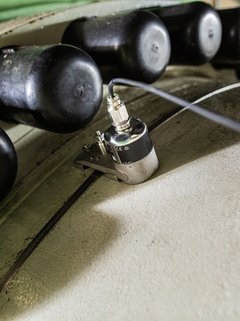

Clamp-on meter with Heartbeat Technology and web server for the water and wastewater industry. Short inlet run thanks to Flow DC. Bidirectional measurement for water and wastewater as well as process water and hydropower plants.

Benefits

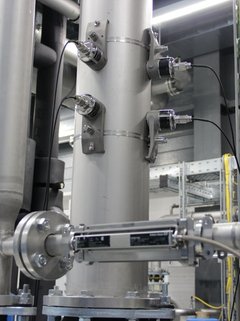

Flexible mounting – Flow DC reduces inlet runs to a minimum
Reliable measurement performance – proven sensors in combination with maintenance-free mounting system deliver long-term stable signals
Low capital investment – cost-effectiveness increases with the pipe diameter (up to DN 4000/160″)
User-friendly operation – the web server offers full remote access, while the device’s display offers convenient on-site interaction
Transparent process insights – Heartbeat Technology with its integrated diagnostics, verification and monitoring functions enable compliance and process safety at all times

Nominal diameter range

DN15 to 4000 (1/2 to 160″)

Sensor materials

Clamp on system:

Sensor holder 1.4301 (304), 1.4404 (316L)

Sensor housing 1.4301 (304), 1.4404 (316L)

Strapping bands 1.4301 (304), 1.4404 (316L)

Measured variables

Volume flow, Flow velocity, Sound velocity

Max. measurement error

Volume flow:

±3% o.r. for DN15

±2% o.r. for DN25 to 200

±2% o.r. above DN200

Measuring range

0 to 15 m/s (0 to 50 ft/s)

Max. process pressure

N/A

Medium temperature range

–40 to +130 °C (–40 to +266 °F)

Ambient temperature range

Sensor DN 15 to 65: -40 to 130°C

Sensor DN 50 to 4000: -40 to 130°C

Sensor housing material

N/A

Transmitter housing material

Wall-mounted housing

Polycarbonat; AlSi10Mg, coated

Degree of protection

Transmitter: IP66/67, Type 4X enclosure

Sensor: IP66/67, Type 4X enclosure, IP68, Type 6P enclosure (optional)

Display/Operation

4‐line backlit display with touch control (operation from outside)

Configuration via local display, web browser and operating tools possible

Outputs

3 ouputs:

4‐20 mA/4‐20 mA HART (active)

Pulse/frequency/switch output (passive)

Modbus RS485

Inputs

Status input

Digital communication

HART

Power supply

AC 100 to 240 V / AC/DC 24 V

Approvals

cCSAus

Other approvals and certificates

Product safety

CE, C-tick marking, EAC-marking

Metrological approvals and certificates

Flowmeter verification for all frequencies except 0.3 MHz, reference line size: 5 MHz DN 50, all other frequencies DN 100

Verification performed on accredited calibration facilities (acc. to ISO/IEC 17025)

Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a

Marine approvals and certificates

Sensor features

Low capital investment – cost-effectiveness increases with pipe diameter (up to DN 2000/80″). Long-term stable signal – maintenance-free permanent mounting from outside with coupling pads. Reliable measurement on various pipe materials – sensor for GRP and plastic pipes available. Mounting without process interruption. Wide nominal diameter range: DN 15 to 4000 (½ to 160″). Medium temperature up to +130 °C (+266 °F).

Transmitter features

Safe operation – no need to open the device due to display with touch control, background lighting. Full remote access – web server. Integrated diagnostics, verification and monitoring – Heartbeat Technology. Transmitter housing made of durable polycarbonate or aluminium. Remote version for wall mounting. Integrated data logger: measured values monitoring.
