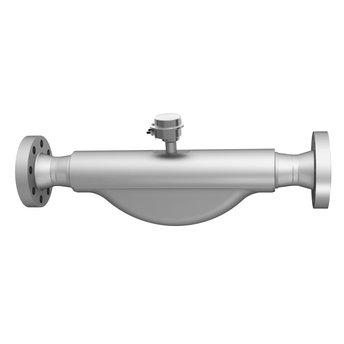

Promass O is designed for premium accuracy of liquids and gases at the highest process pressures in the oil and gas industry. The sensor is fully suitable for offshore conditions and resistant to stress corrosion cracking. Promass O 100 delivers full performance on the smallest footprint with its ultra-compact transmitter and thus enables seamless system integration. Heartbeat Technology enables process safety at all times.
Measuring principle operates independently of physical fluid properties such as viscosity or density. For premium accuracy at highest process pressures, fully suitable for offshore conditions. Robust high-pressure flowmeter with an ultra-compact transmitter. For premium accuracy at highest process pressures, fully suitable for offshore conditions.
DN 80 to 150 (3 to 6″)
Measuring tube: 25Cr duplex (Super Duplex), 1.4410 (UNS S32750)
Connection: 25Cr duplex (Super Duplex), 1.4410 (F53)
Mass flow, density, temperature, volume flow, corrected volume flow (API tables), reference density, concentration
Mass flow (liquid): ±0.1 (standard), 0.05 % (option)
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.35 %
Density (liquid): ±0.0005 g/cm³
0 to 800 000 kg/h (0 to 29 400 lb/min)
PN 250, Class 1500
–40 to +205 °C (–40 to +401 °F)
Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F)
1.4404 (316L), highest corrosion resistance
Compact: AlSi10Mg, coated
Compact/ultra‐compact: 1.4404 (316L)
Standard: IP66/67, type 4X enclosure
Option: IP69
4‐line backlit display available (no local operation)
Configuration via web browser and operating tools possible
4‐20 mA HART (active)
Pulse/frequency/switch output (passive)
None
HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
DC 20 to 30 V
ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC
CE, C-Tick, EAC marking
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025),
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
LR approval, DNV approval, ABS approval, BV approval, CCS approval
PED, CRN, AD 2000
3.1 material
NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK
Maximum safety – highest resistance to stress corrosion cracking. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750). Process pressure up to PN 250 (Class 1500). Nominal diameter: DN 80 to 150 (3 to 6″).
Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available.
