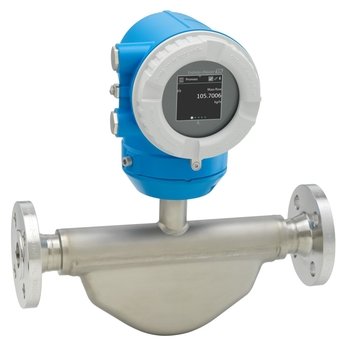

Promass K is the cost-efficient Coriolis solution for elementary mass flow measuring tasks. It provides dependable measurement in basic applications featuring air, gas, fuel and water. With its straightforward hard– and software design, Promass K 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.
Measuring principle operates independently of physical fluid properties such as viscosity or density. Measurement of liquids and gases in utility processes and basic applications. Flowmeter with minimized total cost of ownership with easy-to-use operation concept. Measurement of liquids and gases in utility processes and basic applications.
DN 8 to 80 (⅜ to 3″)
Measuring tube: 1.4539 (904L)
Connection: 1.4404 (316/316L)
Mass flow, temperature, Density (option), volume flow, corrected volume flow
Mass flow (liquid): ±0.5 % (standard), ±0.15 % (option)
Mass flow (gas): ±0.75%
0 to 180 000 kg/h (0 to 6615 lb/min)
PN 40, Class 300, 40K
–40 to +150 °C (–40 to +302 °F)
Standard: –20 to +60 °C (–4 to +140 °F)
Stainless steel 1.4301 (304)
AlSi10Mg, coated
Standard: IP66/67, Type 4X enclosure
2.4″ LCD display with touch & auto rotate; Configuration and operation via Bluetooth technology possible
4-20 mA HART (active/passive), Pulse/frequency/switch output
Modbus RS485, 4-20 mA
HART, MODBUS RS485, IO-Link
DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)
ATEX
IECEx
cCSAus
EAC
NEPSI
INMETRO
IND Ex
JPN
UK Ex
KC
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
CRN, PED
3.1 material
EC 1935, FDA, GB4806, cGMP, 3-A
Cost-effective general-purpose device – alternative to mechanical flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space-saving installation – no in-/outlet run needs. Compact dual-tube sensor. Medium temperature up to +150 °C (+302 °F). Process pressure up to 100 bar (1450 psi).
Optimum usability – display with touch screen (HART and Modbus RS485 communication only) or operation with mobile devices and SmartBlue app. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology. System integration with HART, Modbus RS485, IO-Link. Flexible operation with app and optional display.
