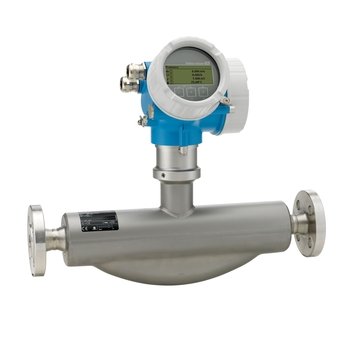

Promass F has a long standing reputation as a highly accurate device. It is suited for broadest range of applications. Promass F 200 offers in addition genuine, industry-compliant two-wire technology. This enables seamless system integration into existing infrastructures. Additional advantages are high operational safety in hazardous areas thanks to an intrinsically safe design (Ex ia) and process safety at all times enabled by Heartbeat Technology.
Measuring principle operates independently of physical fluid properties such as viscosity or density. Highest measurement performance for liquids and gases in a wide range of applications. Robust flowmeter with genuine loop-powered technology. Highest measurement performance for liquids and gases in a wide range of applications.
DN 8 to 80 (⅜ to 3″)
Measuring tube: 1.4539 (904L); 1.4404; Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Mass flow, density, temperature, volume flow, corrected volume flow, reference density
Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.25 % Density (liquid): ±0.0005 g/cm³
0 to 70 000 kg/h (0 to 2570 lb/min)
PN 100, Class 600, 63K
Standard: –50 to +150 °C (–58 to +302 °F)
Option: –50 to +205 °C (–58 to +401 °F)
–40 to +60 °C (–40 to +140 °F)
1.4301/1.4307 (304L), corrosion resistant
AlSi10Mg, coated, 1.4404 (316L)
IP66/67, type 4X enclosure
4‐line backlit display with touch control
(operation from outside)
Configuration via local display and operating tools possible
Remote display available
4‐20 mA HART (passive)
4‐20 mA (passive)
Pulse/frequency/switch output (passive)
None
HART, PROFIBUS PA, FOUNDATION Fieldbus
DC 18 to 35 V (4‐20 mA HART with/without
pulse/frequency/switch)
DC 18 to 30 V (20 mA HART, 4‐20 mA)
DC 9 to 32 V (PROFIBUS PA)
ATEX, IECEx, cCSAus, INMETRO, NEPSI, JPN, UK Ex
CE, C-TICK
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
PED, CRN, AD 2000
3.1 material
NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK
3-A, EHEDG, cGMP
Highest process safety – immune to fluctuating and harsh environments. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Mass flow: measured error ±0.1 %. Medium temperature up to +205 °C (+401 °F). Nominal diameter: DN 8 to 80 (³⁄₈ to 3″).
Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology. Loop-powered technology. Robust dual-compartment housing. Plant safety: worldwide approvals (SIL, Haz. area).
