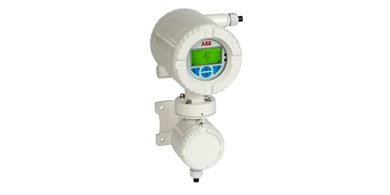

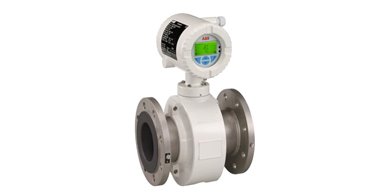

ProcessMaster FEW630 – The first choice for all water industry applications. Advanced features and functionality that enable you to operate more efficiently, reduce costs and increase profitably.
Real-time diagnostic keep your process up and running
- Detecting critical process conditions at an early stage reduce unscheduled downtime and maintenance
- Clear text messages simplify troubleshooting
In-built noise/grounding check
- Verify the installation is correct from day one
- Checks for proper grounding which is fundamental to an accurate flow measurement
In-built verification for highest confidence in your flow measurement
- Checking for sensor and transmitter integrity
- No need to remove the flowmeter from the process
Simplicity of operation
- Automatic self-configuration sequence
- Incredibly easy to work with
Ethernet IP communication
- For remote access to built-in diagnostic monitoring the flowmeter and your process
- Flowmeter verification and configuration over Ethernet minimizing commissioning time
- Built-in webserver, no additional software required for flowmeter configuration
Measuring value error
Standard 0.4 % of rate, option for 0.3% and 0.2 % of rate
Nominal diameter
DN 25 to 3000 (1 to 120 in.)
Process connection
FlangeFlange based on ISO, ASME, JIS, AS2129 table D, E, AWWA C207
Nominal pressure
PN 6 to 40; ASME CL 150, 300 JIS 5K, 20K, AS PN16, 35, AWWA C207 Class B, D, E
Lining
Hard rubber
IP rating
IP67, IP68, NEMA4x
Fluid temperature
min.: -5°C (23 °F) max.: 90 °C (194 °F)
Communication
HART
PROFIBUS DP, Profibus PA
Modbus RTU, Modbus TCP
Ethernet IP, Profinet, Webserver
Ex approvals
ATEX, IECEx, cFMus
Process diagnostics
Empty pipe, gas bubbles, electrode impedance, conductivity, sensor temperature
Real-time diagnostics: detects critical process conditions early, helping reduce unscheduled downtime and maintenance. Built-in noise/grounding check: verifies correct installation (especially grounding) from Day 1. In-built verification: allows checking sensor + transmitter integrity without removing meter from process. Self-configuration: automatic setup from sensor memory to transmitter simplifies commissioning. Modular design and digital communication: supports multiple protocols (HART, Profibus, Modbus, Ethernet/IP, PROFINET) for flexible integration. Robust for water & wastewater: Suitable for applications including potable water, wastewater, sewage, sludge, influent/effluent, with materials & liners designed for abrasion/corrosion resistance.
