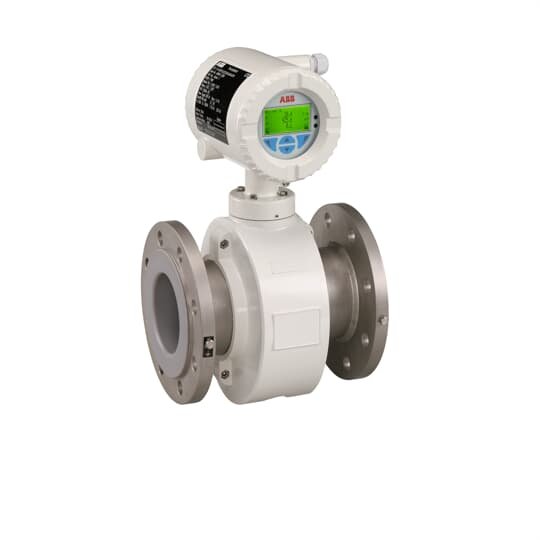

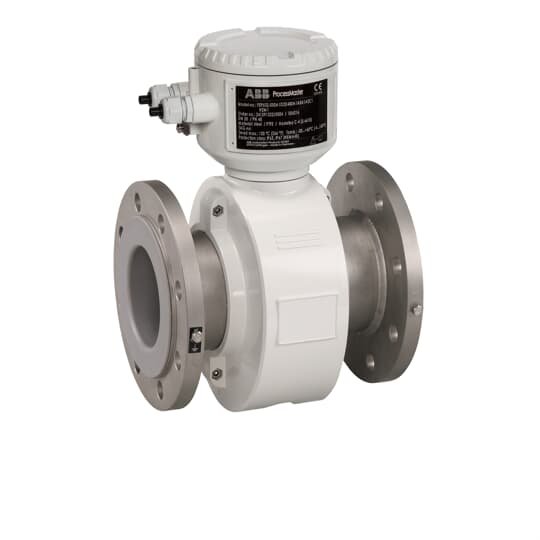

ProcessMaster FEP630 – The first choice for all industrial applications. Advanced features and functionality that enable you to operate more efficiently, reduce costs and increase profitably.
Real-time diagnostic keep your process up and running
- Detecting critical process conditions at an early stage reduce unscheduled downtime and maintenance
- Clear text messages simplify troubleshooting
In-built noise/grounding check
- Verify the installation is correct from day one
- Checks for proper grounding which is fundamental to an accurate flow measurement
In-built verification for highest confidence in your flow measurement
- Checking for sensor and transmitter integrity
- No need to remove the flowmeter from the process
Simplicity of operation
- Automatic self-configuration sequence
- Incredibly easy to work with
Ethernet IP communication
- For remote access to built-in diagnostic monitoring the flowmeter and your process
- Flowmeter verification and configuration over Ethernet minimizing commissioning time
- Built-in webserver, no additional software required for flowmeter configuration
Measuring value error
Standard 0.4 % of rate, option for 0.3% and 0.2 % of rate
Nominal diameter
DN 3 to 2000 (1/10 to 80 in.)
Process connection
Flange in accordance with DIN 2501 / EN 1092-1, ASME B16.5 / B16.47, JIS, AS2129
Nominal pressure
PN 10 to 100,
ASME CL 150, 300
Lining
Hard rubber, soft rubber, PTFE, PFA, ETFE, Linatex
IP rating
IP67 or IP68
Fluid temperature
Up to 180 °C (356 °F)
Communication
HART
PROFIBUS DP, Profibus PA
Modbus RTU, Modbus TCP
Ethernet IP, Profinet
Webserver
Ex approvals
ATEX, IECEx, cFMus, NEPSI
Process diagnostics
Empty pipe, partially filling, gas bubbles, electrode impedance, conductivity, sensor temperature
Designed for all industrial water and wastewater applications. Robust, fully welded stainless steel sensor housing for harsh environments. Wide range of liner and electrode materials for chemical resistance. Accuracy up to ±0.2% of flow rate (±1 mm/s). Flow velocity range: 0.3–10 m/s. No moving parts — minimal maintenance required. Empty pipe detection and bidirectional measurement. Advanced self-diagnostics and process monitoring. Multiple outputs: current, pulse/frequency, HART, Modbus, PROFIBUS, and EtherNet/IP. Available in compact or remote versions. Easy commissioning via ABB’s Sensor Application Memory and local display with intuitive interface.
