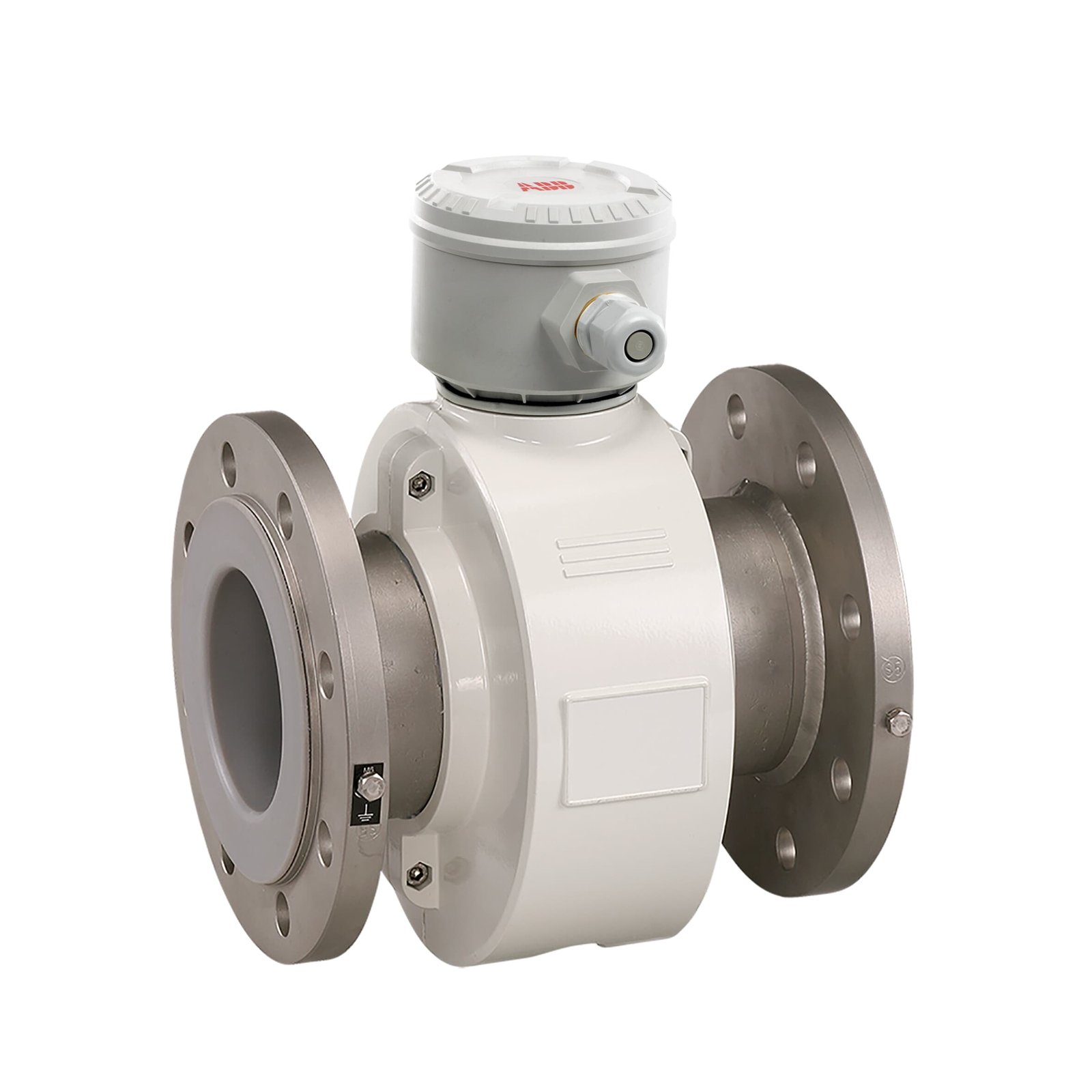

ProcessMaster Water FEP620 is the next generation flowmeter for sectors such as chemical, power, oil & gas, pulp & paper and metals & mining. Seamlessly merging high-performance, modularity and IoT connectivity. The flowmeter is equipped with all necessary functions for standard applications including SmartSensor Technology and built-in Verification. It is easy to understand & simple to operate.

Get a quote

ProcessMaster Water FEP620 – Ideally suited for standard applications in chemical, power, oil & gas, pulp & paper and metals & mining industries. A robust Flowmeter for harsh environmental conditions, featuring all functions required – no more and no less.

Sensor Coil and electrode diagnostic keep your process up and running

  • Detecting critical process conditions at an early stage reduce unscheduled downtime and maintenance
  • Clear text messages simplify troubleshooting

In-built noise/grounding check

  • Verify the installation is correct from day one
  • Checks for proper grounding which is fundamental to an accurate flow measurement

In-built verification for highest confidence in your flow measurement

  • Checking for sensor and transmitter integrity
  • No need to remove the flowmeter from the process

Sensor Memory Technology ensures Simplicity of operation

  • Automatic self-configuration sequence
  • Incredibly easy to work with

HART as a Standard

Option for Modbus RTU communication

  • For more Data from the Device and the process
  • 4-20mA and Modbus in prallel at the same time

Measuring value error

Standard 0.4 % of rate, option for 0.3% of rate

Nominal diameter

DN 3 to 600 (1/10 to 24 in.)

Process connection

Flange based on DIN-EN, ASME

Nominal pressure

PN 10 to 40; ASME CL 150, 300

Lining

PTFE, ETFE,PFA, Linatex

IP rating

IP67, IP68, NEMA4x

Fluid temperature

min.: -5°C (23 °F) max.: 130 °C (266 °F)

Communication

4…20mA / HART

Modbus RTU

4…20mA in parallel to Modbus

Ex approvals

ATEX, IECEx, cFMus in preparation

Process diagnostics

Empty pipe, Total Filling, Electrode-Status, Grounding/Noise

Designed for standard-process applications in harsh industries: chemical, power, oil & gas, pulp & paper, metals & mining. Built-in sensor diagnostics: coil & electrode integrity checks, grounding/noise check, full-pipe detection, etc. SmartSensor / SensorMemory technology: calibration/application data stored on sensor for fast replacement of transmitter without re-programming. Modular transmitter: supports integral mount or remote. Universal AC/DC supply. Flexible communication: 4-20 mA + HART standard; option for Modbus RTU.
