OPTIWAVE 6400

Radar level transmitter for advanced applications with solids from granulates to rocks

Continuous, non-contact level measurement in/on silos, stockpiles, conveyor belts etc.
24 GHz radar, Horn or Drop antennas
Measuring range: 0…100 m / 328 ft
-50…+130°C / +266°F; -1…16 barg / -14.5…232 psig

Get a quote

The OPTIWAVE 6400 is a 2-wire 24 GHz radar (FMCW) level transmitter for basic applications with solids. This radar is designed for continuous, non-contact level measurement of stones, plastic granulates, coffee beans and other products in solids processing of various industries. The level transmitter features a Metallic Horn antenna as well as PP and PTFE Drop antennas. The Drop antenna design minimises scaling and is unaffected by the angle of repose. Hence no need for expensive antenna aiming kits or purging systems.

Product positioning

For solids from granulates to rocks

Measurement variables

Distance, Level, Mass, Reflection, Volume

Measurement principle

Radar (FMCW)

Level measurement type

Continuous measurement

Contact to measured medium

Interface measurement

Redundancy

Measured media

Solids, Bulk solids, Granulates

Measuring range (solids)

0…100 m/0…328 ft

Ambient temperature

-40…+80°C/-40…+176°F

Measuring point

Silo, Stockpile, Conveyor belt, Shaft, Bunker, Crusher

Process pressure

-1…16 barg/-14.5…232 psig

Process temperature

-50…+130°C/-58…+266°F

Antenna

Polyetheretherketone (PEEK)

Gaskets

Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM/FPM), Kalrez® 6375

Process connections

EN (1092-1): DN80…200

ASME (B 16.5): 3…8″

JIS (B 2220): 80…200A

Pressure ratings

EN (1092-1): PN40

ASME (B 16.5): Cl 300#

JIS (B 2220): 10k

Thread connections Male:

G1, G1½″

1 NPT, 1½ NPT

Approvals/Standards

Certificates/Approvals Others WHG, CRN / ASME B31.3

Certificates/Approvals Ex ATEX, cQPSus, IECEx, NEPSI, EAC Ex, KCs

Certificates/Approvals Marine DNV

Certificates/Approvals Safety SIL 2/3

Ingress protection

IP66/68, NEMA4X/6P

NAMUR compliance

NE 107, NE 21, NE 43, NE 53

Communication

Analogue outputs 4…20 mA

Digital outputs FOUNDATION™ Fieldbus, HART®, Profibus-PA

Accuracy (solids)

±2 mm/±0.08 in

Features & Options

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

2-wire, loop-powered, with HART®7
Built-in configurations for different surface profiles

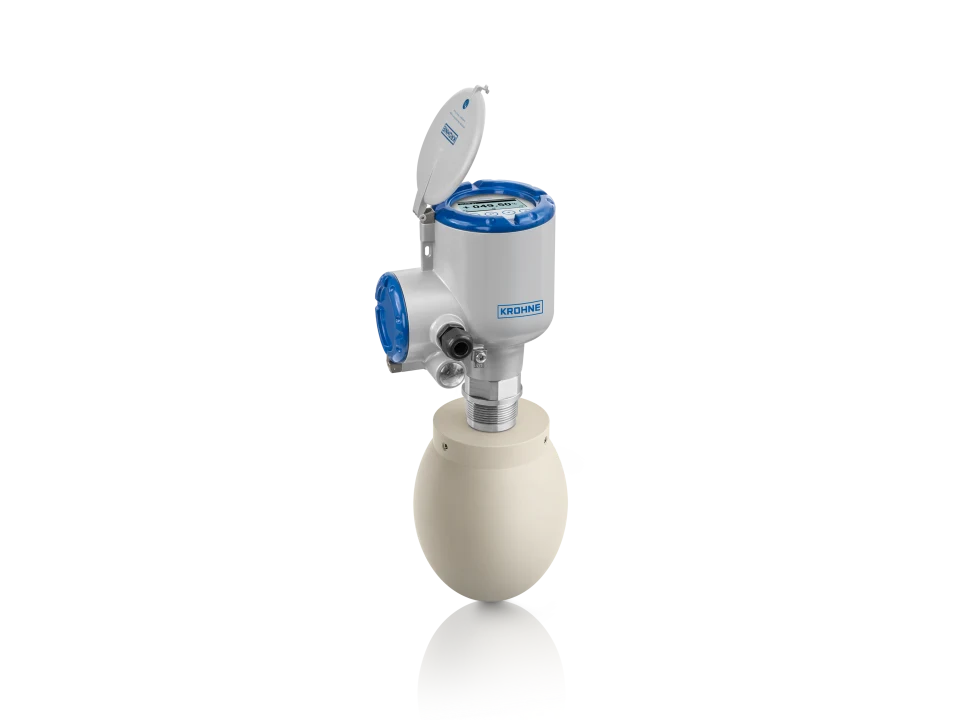

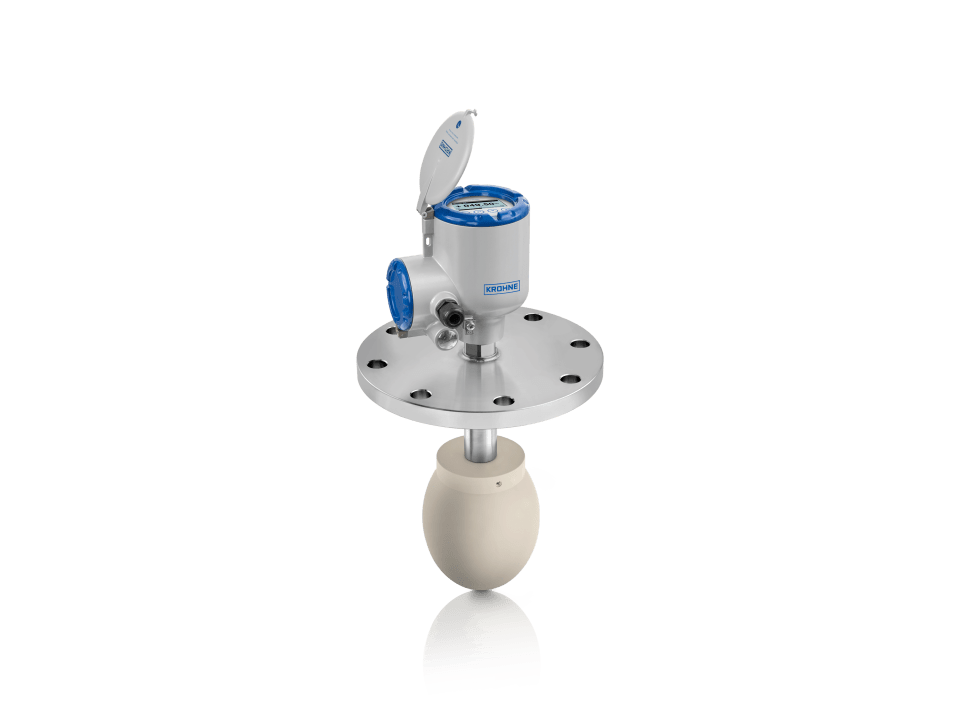

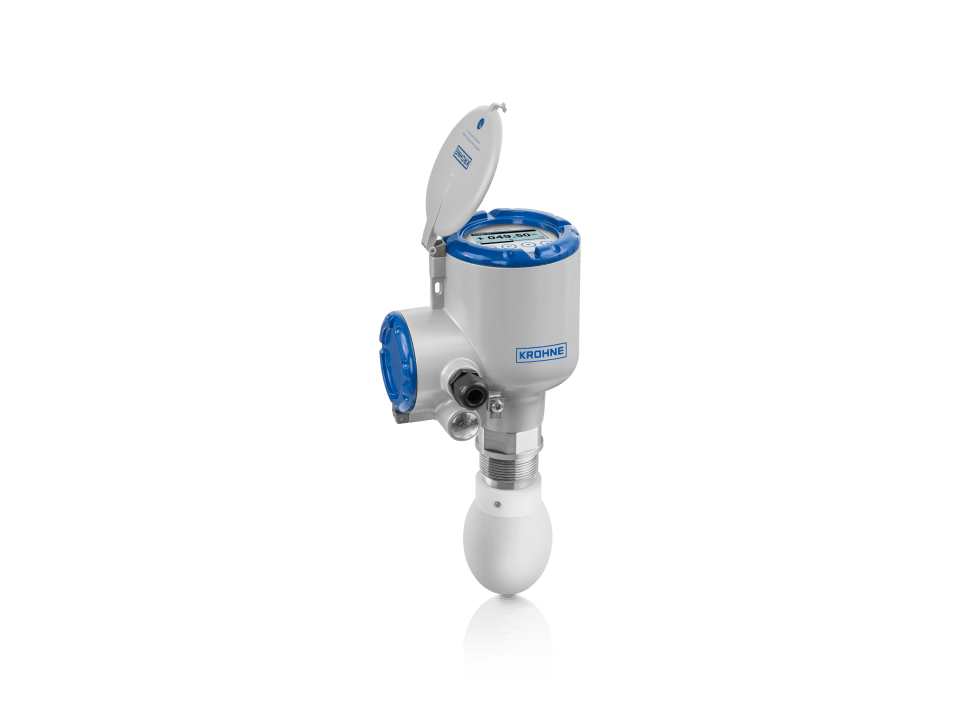

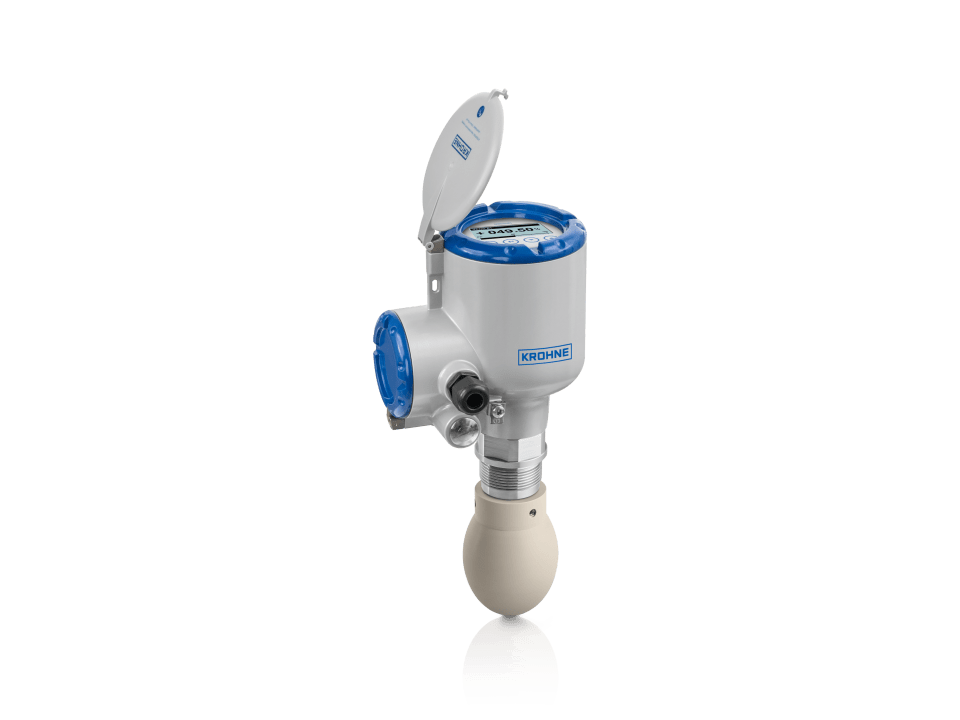

PP or PTFE Drop antennas:
Insensitive to product build-up
Small beam angle (4° with DN150 /6″ PTFE Drop antenna)
Ellipsoidal shape and smooth surface to prevent scaling
Unaffected by angle of repose – no need for antenna aiming kits
New DN100 / 4″ for distances up to 40 m / 131.2 ft
316L Metallic Horn antenna with optional purging system
TBM (Tank Bottom Management) ensures reliable measurement even in empty tanks:
dedicated algorithms to filter and compensate for irregular radar wave reflections that occur at tank bottom when the vessel is empty
allows for quick and easy commissioning of tanks regardless of their size, material or geometry
±2 mm / ±0.08″ accuracy
Spare converter compatible with all OPTIWAVE 6300 C process connections
Low-cost 316L low-pressure flange discs
Antenna extensions to suit any nozzle length
Large choice of flange and thread connections
Large, backlit LCD screen with 4-button keypad for operation with bar magnet; no need to open the housing cover
PACTware™, HART® DD and DTM provided free of charge with full functionality
SIL 2/3 certified for safety-related applications
3-year warranty
