OPTIWAVE 5400

Radar level transmitter for liquids in standard process applications

Continuous, non-contact level measurement in closed tanks or in the open air
24 GHz radar, Horn or Drop antennas
Measuring range: 0…100 m / 328 ft
-50…+130°C / -58…+266°F; -1…16 barg / -14.5…232 psig

Get a quote

The OPTIWAVE 5400 is a 2-wire 24 GHz radar (FMCW) level transmitter for liquids in basic process applications. It is particularly designed for continuous, non-contact level measurement in the chemical, petrochemical, power as well as oil and gas industry. It can be equipped with a PP Drop antenna for condensing atmospheres and corrosive media but features also Metallic Horn antennas. Due to its high dynamic range, the 24 GHz radar can measure distances up to 100 m / 328 ft.

Product positioning

For liquids in basic process applications

Measurement variables

Distance, Level, Mass, Reflection, Volume

Measurement principle

Radar (FMCW)

Level measurement type

Continuous measurement

Contact to measured medium

Interface measurement

Redundancy

Measured media

Liquids, Slurries, Pastes

Measuring range (solids)

0…100 m/0…328 ft

Ambient temperature

-40…+80°C/-40…+176°F

Measuring point

Silo, Stockpile, Conveyor belt, Shaft, Bunker, Crusher

Process pressure

-1…16 barg/-14.5…232 psig

Process temperature

-50…+130°C/-58…+266°F

Antenna

Polypropylene (PP)

Gaskets

Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM/FPM), Kalrez® 6375

Process connections

EN (1092-1): DN40…200

ASME (B 16.5): 1½…8″

JIS (B 2220): 40…200A

Pressure ratings

EN (1092-1): PN40

ASME (B 16.5): Cl 300#

JIS (B 2220): 10k

Thread connections Male:

G1, G1½

1 NPT, 1½ NPT

Approvals/Standards

Certificates/Approvals Others WHG, CRN / ASME B31.3

Certificates/Approvals Ex ATEX, cQPSus, IECEx, NEPSI, EAC Ex, KCs

Certificates/Approvals Marine DNV

Certificates/Approvals Safety SIL 2/3

Ingress protection

IP66/68, NEMA4X/6P

NAMUR compliance

NE 107, NE 21, NE 43, NE 53

Communication

Analogue outputs 4…20 mA

Digital outputs FOUNDATION™ Fieldbus, HART®, Profibus-PA

Accuracy (solids)

±2 mm/±0.08 in

Features & Options

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

2-wire, loop-powered, with HART®7

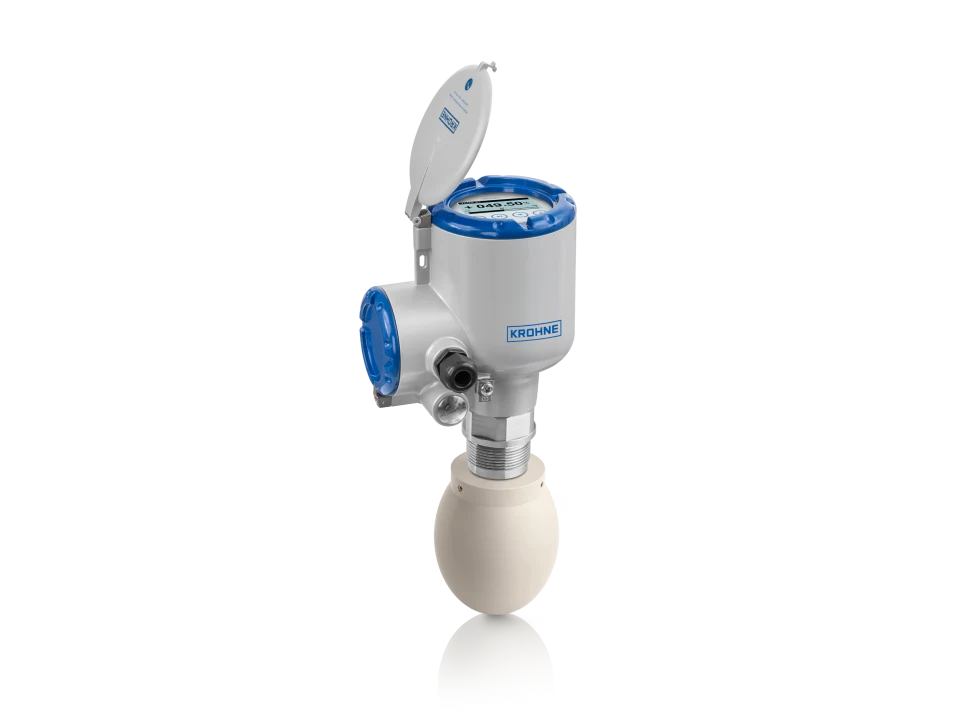

PP Drop antenna:
Insensitive to condensation
Small beam angle (5° with DN150 / 6″ Drop antenna)
Ellipsoidal shape and smooth surface to minimise scaling
PP flange plate protection and cladded antenna extensions for corrosive media
New DN100 / 4″ Drop antenna for distances up to 80 m / 262.5 ft

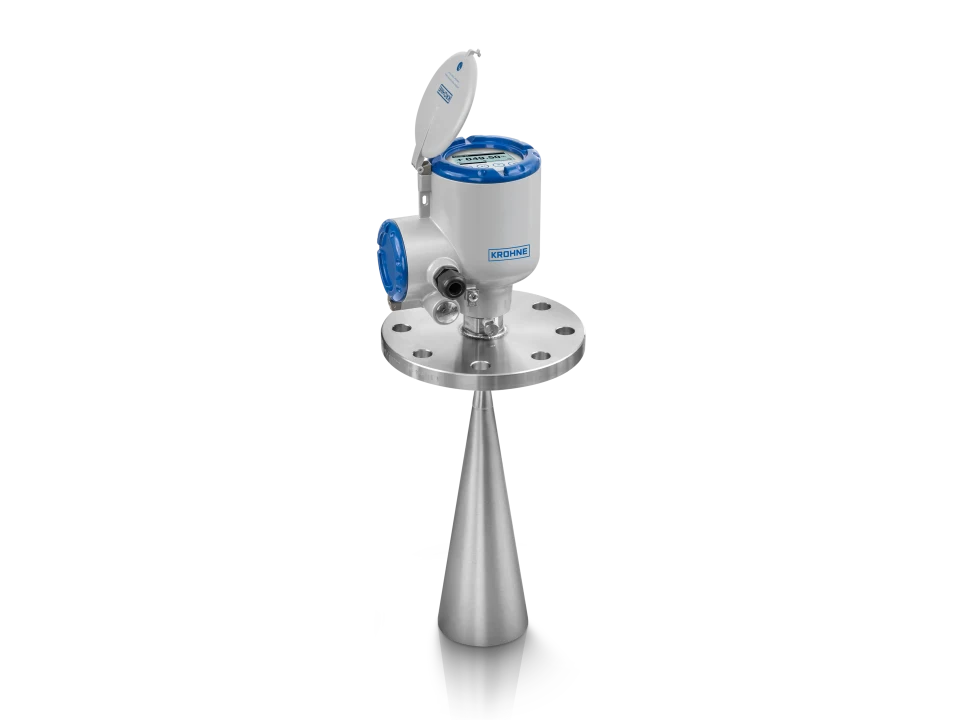

316L Metallic Horn antenna with optional purging system
TBM (Tank Bottom Management) ensures reliable measurement even in empty tanks:
dedicated algorithms to filter and compensate for irregular radar wave reflections that occur at tank bottom when the vessel is empty
allows for quick and easy commissioning of tanks regardless of their size, material or geometry
±2 mm / ±0.08″ accuracy
Antenna extensions to suit any nozzle length
Empty tank spectrum function eliminates false reflections caused by tank internals
Large choice of flange and thread connections
Large, backlit LCD screen with 4-button keypad for operation with bar magnet; no need to open the housing cover
PACTware™, HART® DD and DTM provided free of charge with full functionality
Extensive device diagnostics acc. to NAMUR NE 107
SIL 2/3 certified for safety-related applications
3-year warranty
