OPTITEMP TT 53 C

OPTITEMP TT 53 C

Head-mounted temperature transmitter with universal input, galvanic isolation, HART® and wireless communication

  • Input: RTD, TC, mV, Ω
  • Output: 2-wire, 4…20 mA/HART®7
  • Programmable via PC, HART® handheld or the OPTICHECK Temperature Mobile app using Bluetooth® or NFC

Get a quote

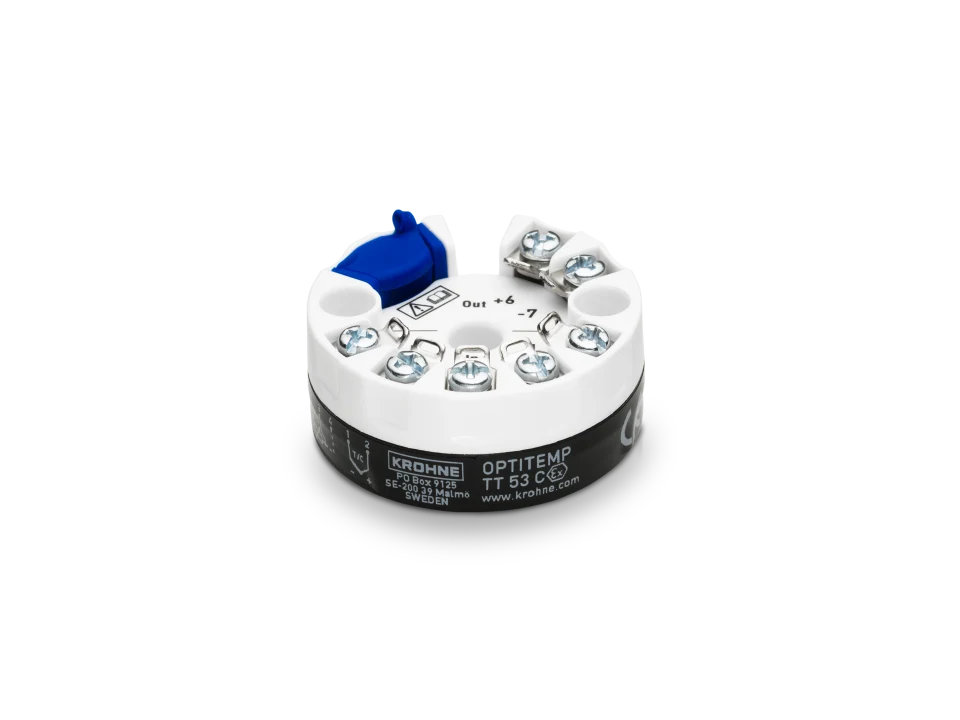

The OPTITEMP TT 53 C is a universal, programmable, 2-wire head-mounted temperature transmitter. The galvanically isolated transmitter works with RTD elements, thermocouple (TC) elements or other inputs (mV and Ω). It supports wireless Near Field Communication (NFC) as well as Bluetooth® communication. The OPTITEMP TT 53 C transmitter can thus be remotely configured and monitored using mobile devices with the OPTICHECK Temperature Mobile app installed.

Product positioning

With universal input, galvanic isolation, HART® and wireless communication

Product variants

Standard: OPTITEMP TT 53 C

EX: OPTITEMP TT 53 C Ex

Transmitter programmable

Yes

Ambient temperature

-40…+85°C/-40…+185°F

Transmitter input

Potentiometer (Ω), Resistance (RTD), Thermocouple (TC), Voltage (mV)

Galvanic isolation Yes

Galvanic isolation (VAC) 1500 VAC

Galvanic isolation (VAC) 1500 VAC

Power supply (VDC)

10…36 VDC/

10…30 VDC (Ex)

RTD input Pt50, Pt100, Pt1000, Ni50, Ni100, Ni120, Ni1000, Cu10

Potentiometer input (Ω) 100…10000 Ω

Voltage input (mV) -10…+1000 mV

RTD input / wiring 2-wire, 3-wire, 4-wire

TC Input B, C, D, E, J, K, N, R, S, T

Configuration method

HART handheld, PC/ConSoft software, NFC (Near Field Communication), Bluetooth®

Transmitter mounting

Head-mounted

Diagnostic functions

Sensor break detection, Sensor short circuit detection, Signal filtering function

Approvals/Standards

Certificates/Approvals Ex ATEX, IECEx

NAMUR compliance NE 107, NE 21, NE 43, NE 53, NE 89

Communication

Analogue outputs 4…20 mA

Digital outputs HART®

Features & Options

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

  • Completely universal digital device
  • Fast step response time and high accuracy over transmitter lifetime
  • Wireless communication:
  • Via Near Field Communication (NFC): Quick configuration of the transmitter in combination with the user-friendly OPTICHECK Temperature Mobile app; no power supply and wiring required
  • Via Bluetooth®: Quick configuration and monitoring of the transmitter in combination with the OPTITEMP TT-CON BT configuration kit and the OPTICHECK Temperature Mobile app
  • Configuration also possible via PC/software (ConSoft™) without external power supply
  • Enhanced diagnostics (NAMUR NE 107), incl. sensor break monitoring, error correction etc.
  • High degree of functionality and features (incl. runtime counter, output simulation, ambient temperature log etc.)
  • Rugged design: vibration-resistant up to 10 g
  • Suitable for connection head B or larger
  • Optional rail mounting kit for installation on a DIN rail (in accordance with DIN EN 60715)
