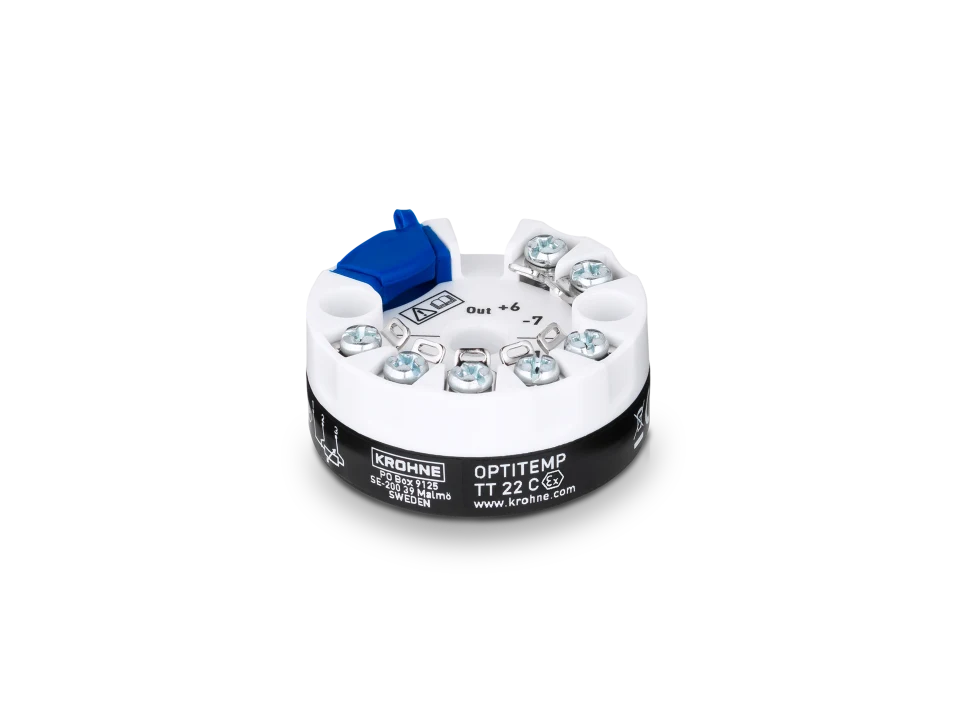

OPTITEMP TT 22 C
Head-mounted temperature transmitter with RTD input
- Input: 1 x Pt100, 3-wire
- Output: 2-wire, 4…20 mA
- PC programmable
- Accuracy: ±0.1%
Head-mounted temperature transmitter with RTD input
The OPTITEMP TT 22 C is a programmable 2-wire head-mounted temperature transmitter. It works with a Pt100 RTD element in 3-wire configuration. The device features a robust design and excellent performance even under demanding conditions such as varying ambient temperatures, vibrations, moisture and radio interferences. It provides a temperature linear current output (4…20 mA). The temperature transmitter is approved for use in hazardous areas. The OPTITEMP TT 22 Ccan be easily configured from a PC using the ConSoft software with configuration kit ICON. Thanks to the user-friendly interface, parameters like measurement range or failure indication can be set or re-set within seconds. Using PC configuration, no calibration is required. The RTD transmitter is designed for installation in a “B connection head” or larger. As an alternative the OPTITEMP TT 22 C can also be mounted on a DIN rail using an optional rail mounting kit. A dedicated rail-mounted version for DIN rails is available with the OPTITEMP TT 22 R.
With RTD input
Standard: OPTITEMP TT 22 C
EX: OPTITEMP TT 22 C Ex
Yes
-40…85°C/-40…185°F
Resistance (RTD)
No
6…32 VDC
8…30 VDC (Ex)
RTD input Pt100
RTD input / wiring 3-wire
PC/ConSoft software
Head-mounted
Sensor break detection, Sensor error correction, Sensor short circuit detection, Signal filtering function
Certificates/Approvals Ex ATEX, IECEx
NAMUR compliance NE 21, NE 43
Analogue outputs 4…20 mA
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
