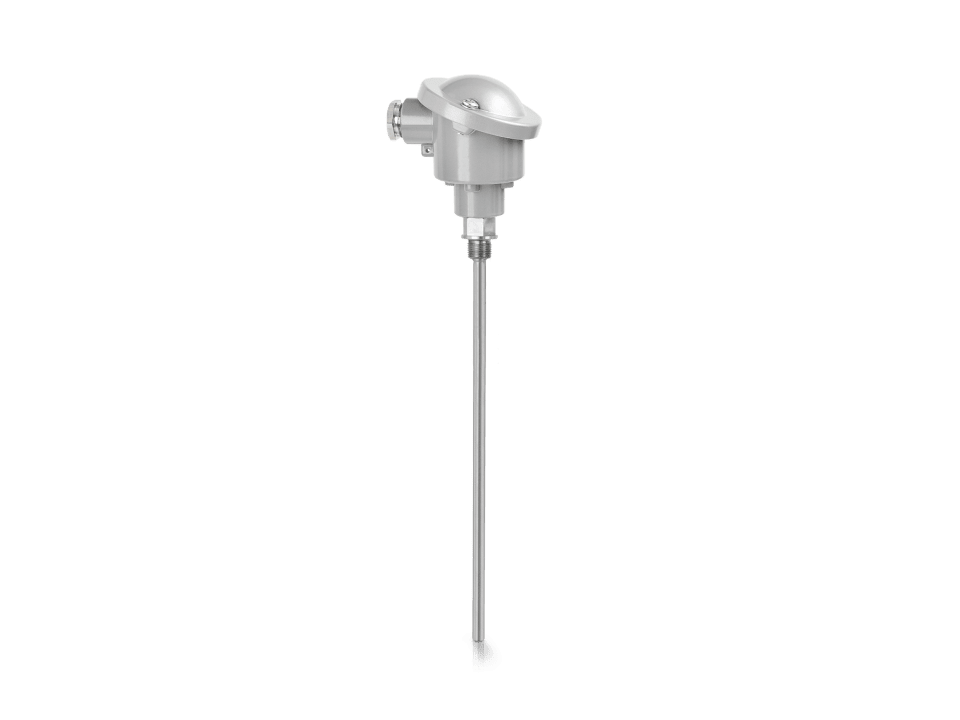

OPTITEMP TRA-S11
Resistance (RTD) temperature assembly for standard applications
- Compression fitting connection
- DIN-style based on form 8, welded multipart thermowell with tapered tip
- -200…+600°C /-327…+1112°F
-
Resistance (RTD) temperature assembly for standard applications
The OPTITEMP TRA-S11 is a threaded RTD sensor assembly with a straight welded multipart thermowell (based on form 8). The industrial temperature assembly for standard applications can be screwed directly to the process pipe or tank. The RTD is predominantly used in applications with lower process temperatures up to +600°C / +1112°F. It is suitable for temperature measurement of liquids and gases, at low to medium pressures and flow velocities. The OPTITEMP TRA-S11 is available with ATEX and IECEx approvals.
For lower temperature applications
Standard: OPTITEMP TRA-S11
EX: OPTITEMP TRA-S11 Ex
Temperature
Resistance (RTD)
Liquids, Gases
Yes
DIN-style
Multipart welded
Form 8
Screw-in
Yes
Replaceable spring loaded mineral isolated measuring insert OPTITEMP TR 100
1 x Pt100, 2 x Pt100
2-wire, 3-wire, 4-wire
1/10 DIN B, A, AA, B
Ceramic terminal block, Flying wires, Temperature transmitter
Ø9 mm / 0.35″, Ø10 mm / 0.39″, Ø11 mm / 0.43″, Ø12 mm / 0.47
Straight
Pipe, Tank
Pipe, Tank
-200…600°C/-327…1112°F
Austenitic stainless steel (1.4404/316L), Austenitic stainless steel (1.4571/316Ti)
G½, G¾, G1
½ NPT, ¾ NPT
ATEX, IECEx
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
