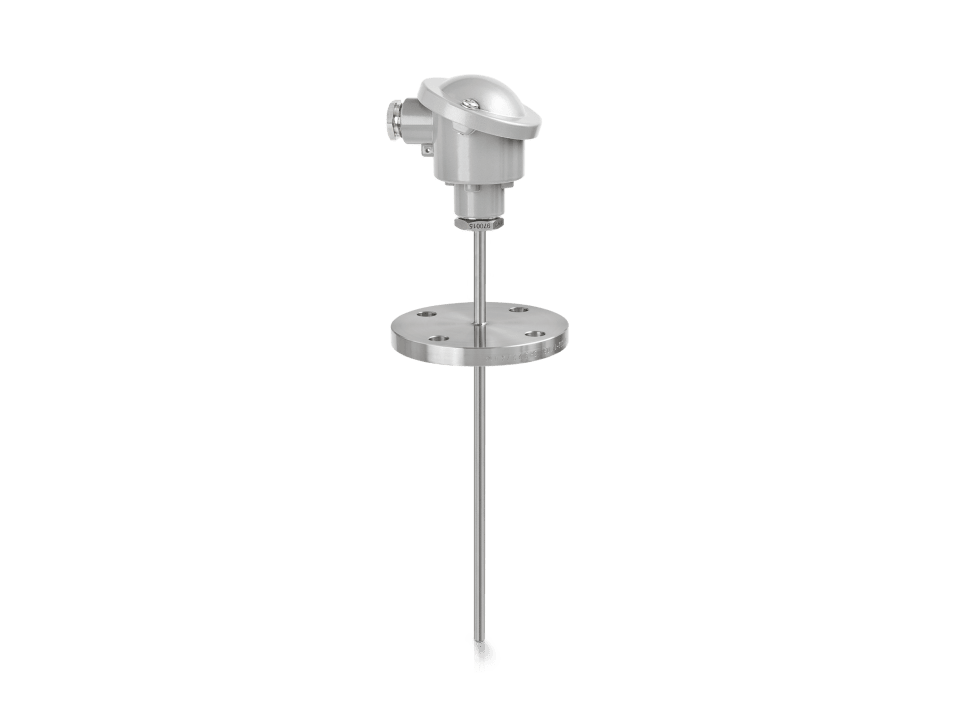

OPTITEMP TRA-F13
Resistance (RTD) temperature assembly for standard applications
- Flange connection
- DIN-style based on form 2F, welded multipart thermowell with straight tip
- -200…+600°C / +1112°F
-
Resistance (RTD) temperature assembly for standard applications
The OPTITEMP TRA-F13 is a flanged RTD sensor assembly with a straight welded multipart thermowell (based on form 2F) and neck tube. The industrial temperature assembly for standard applications is suitable for temperature measurement of solids, liquids and gases, in pipes and tanks at low to medium pressures and flow velocities. It is designed to operate up to +600°C / +1112°F. The particular advantage of this sensor type is that its wetted parts can be coated (e.g. with PTFE), making it resistant to aggressive media. The OPTITEMP TRA-F13 is available with ATEX and IECEx approvals.
For standard applications
Standard: OPTITEMP TRA-F13
EX: OPTITEMP TRA-F13 Ex
Temperature
Resistance (RTD)
Liquids, Gases, Solids
Yes
DIN-style
Multipart welded
Form 2F
Flange
Yes
Replaceable spring loaded mineral isolated measuring insert OPTITEMP TR 100
1 x Pt100, 2 x Pt100
2-wire, 3-wire, 4-wire
1/10 DIN B, A, AA, B
Ceramic terminal block, Flying wires, Temperature transmitter
Ø9 mm / 0.35″, Ø10 mm / 0.39″, Ø11 mm / 0.43″, Ø12 mm / 0.47
Straight
Pipe, Tank
Pipe, Tank
-200…600°C/-328…1112°F
Austenitic stainless steel (1.4404/316L), Austenitic stainless steel (1.4571/316Ti)
EN (1092-1): DN25…50
ASME (B 16.5): 1…1 1/2
EN (1092-1): PN40
ASME (B 16.5): Cl 300#
Certificates/Approvals Ex
ATEX, IECEx
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
