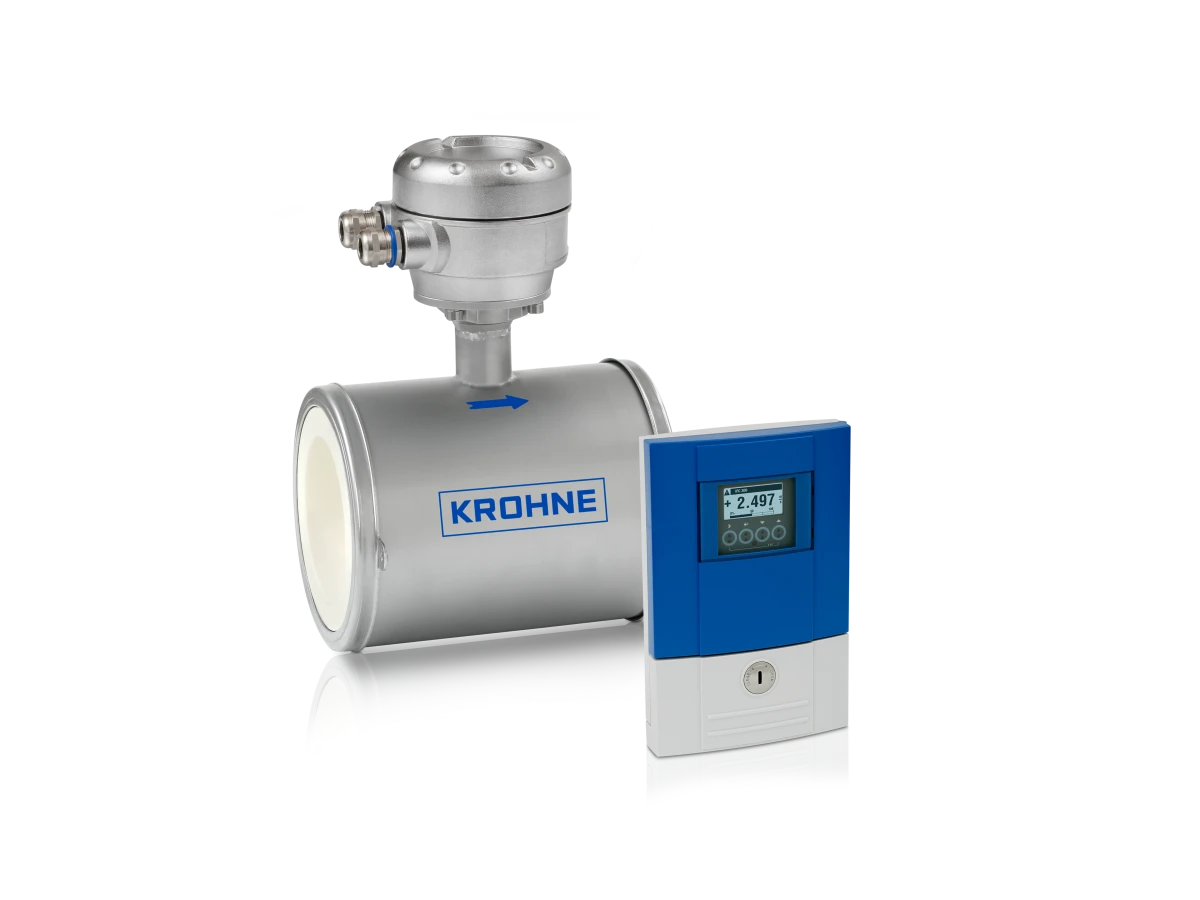

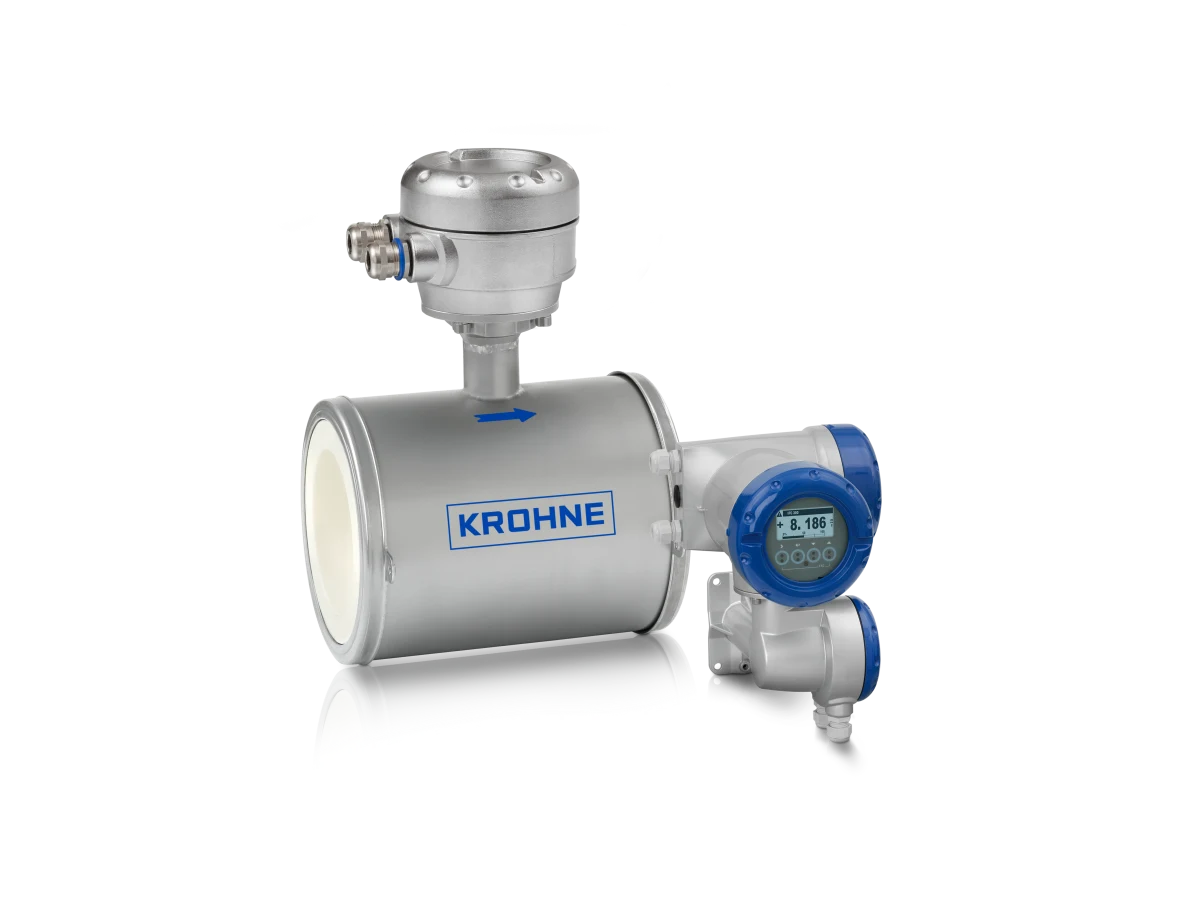

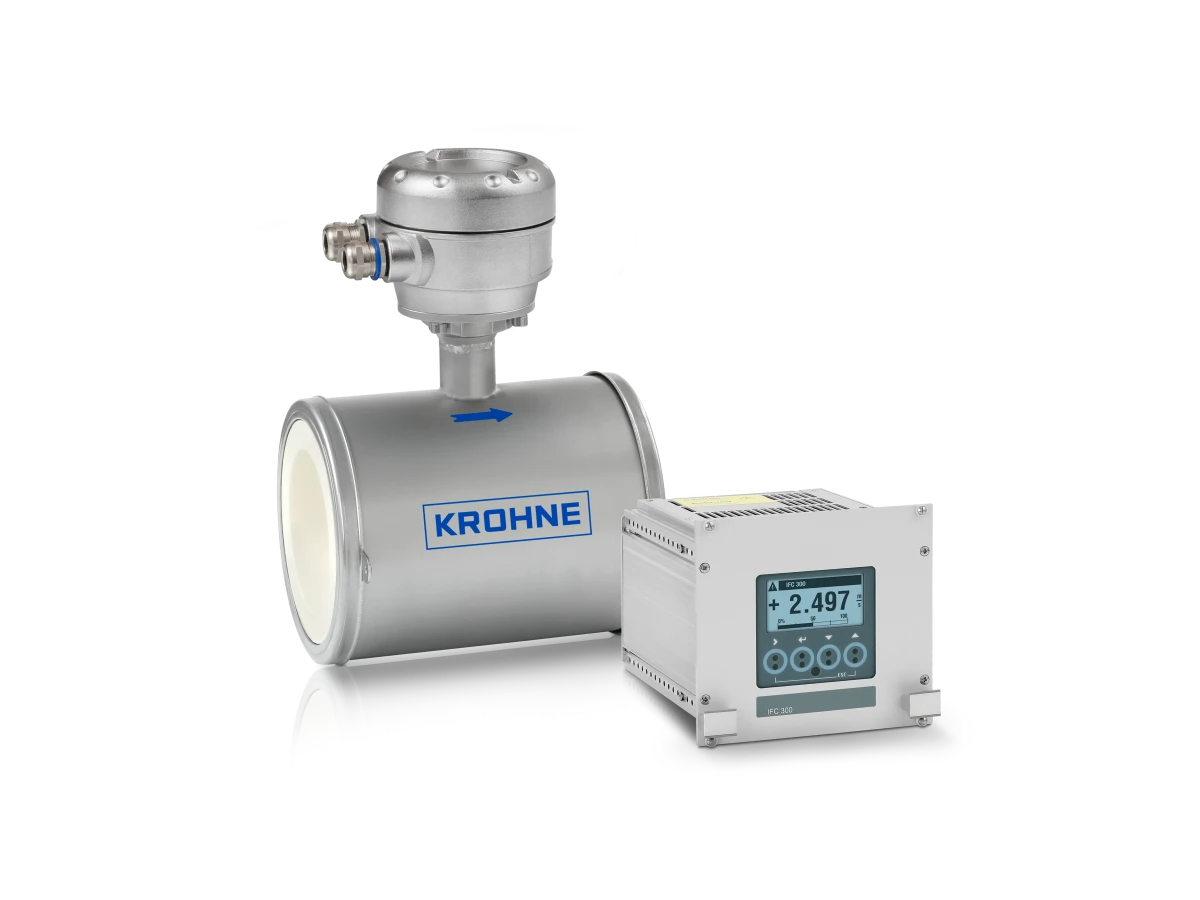

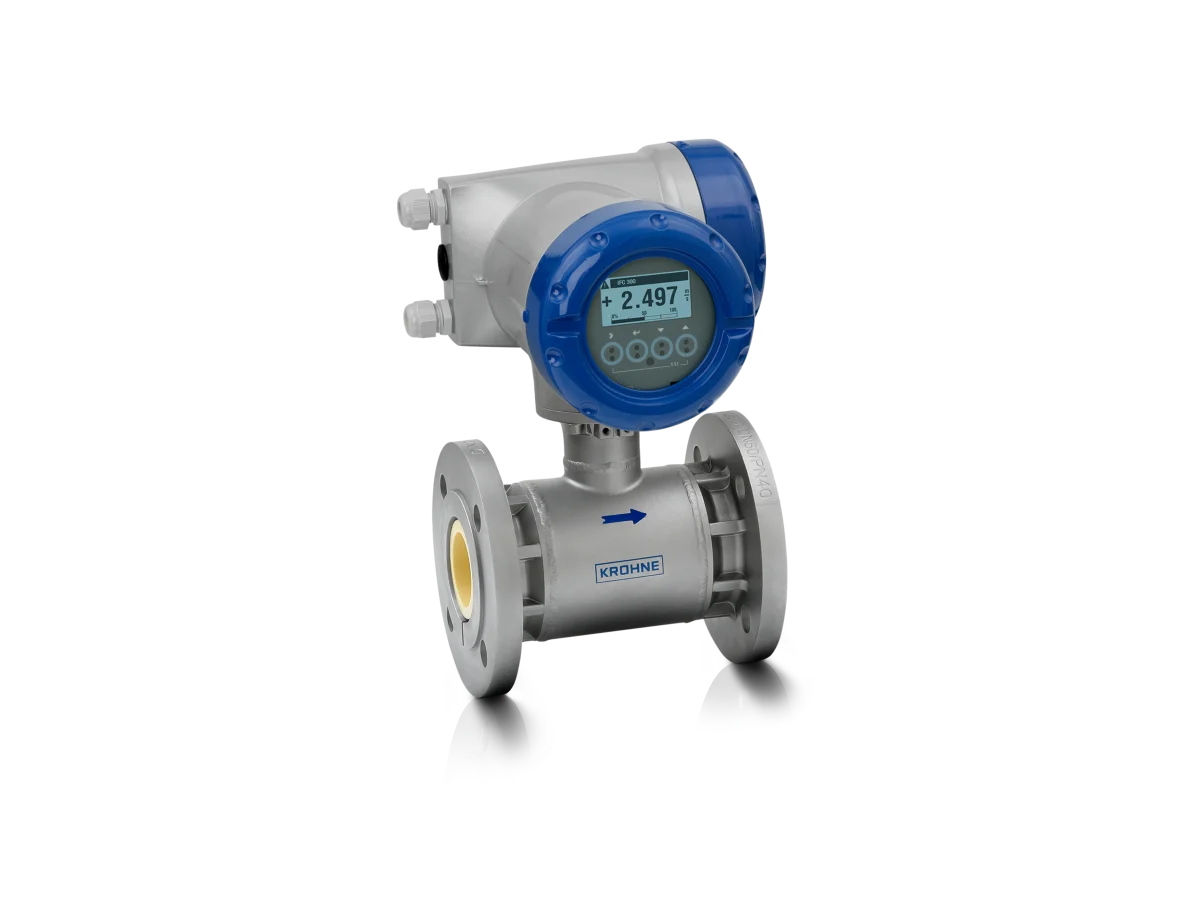

OPTIFLUX 5300

Electromagnetic flowmeter for advanced process and master meter applications

Highest accuracy (±0.15%), with ceramic tube for aggressive and abrasive liquids (≤70% solid content) up to +180°C / +356°F
CT: OIML R117, MI-005 etc.
Flange: DN15…300 / ½…12″, max. PN40 / ASME Cl 300; Sandwich: DN2.5…100 / ⅒…4″
3 x 4…20 mA, HART®, Modbus, FF, Profibus-PA/DP, PROFINET

Get a quote

The OPTIFLUX 5300 is an electromagnetic flowmeter (EMF) with a high-tech ceramic measuring tube for very aggressive and abrasive fluids, even with high solid content (up to 70%). The high-end EMF is particularly suited for process applications in the chemical processing industry and the minerals and mining sector. Due to its FDA and EC1935/2004 compliant sensor material, the OPTIFLUX 5300 can also be used for hygienic applications. With a measuring uncertainty of just ±0.15% of measured value (±1 mm/s) it is one of the most accurate electromagnetic flowmeters available in the market. That is why leading metrological institutes use the OPTIFLUX 5300 as their master meter.

Product positioning

For advanced process, custody transfer (CT) and master meter applications

Measurement principle

Electromagnetic

Measured media

Liquids

Operating conditions

Process pressure

max. 40 barg/ 580 psig

Process temperature

-40…+180°C/-40…+356°F

Materials Measuring tube

Ceramic (ZrO2 or Al2O3)

Process connections

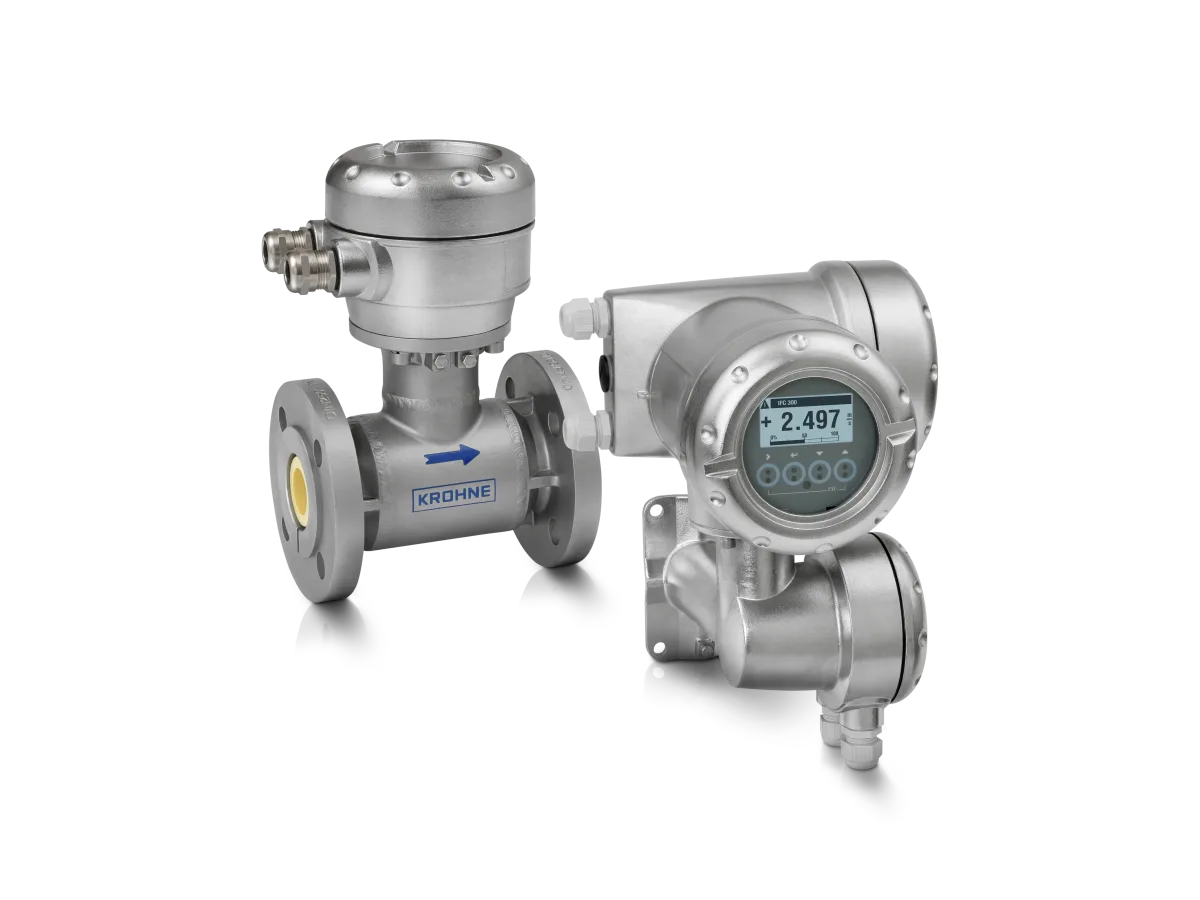

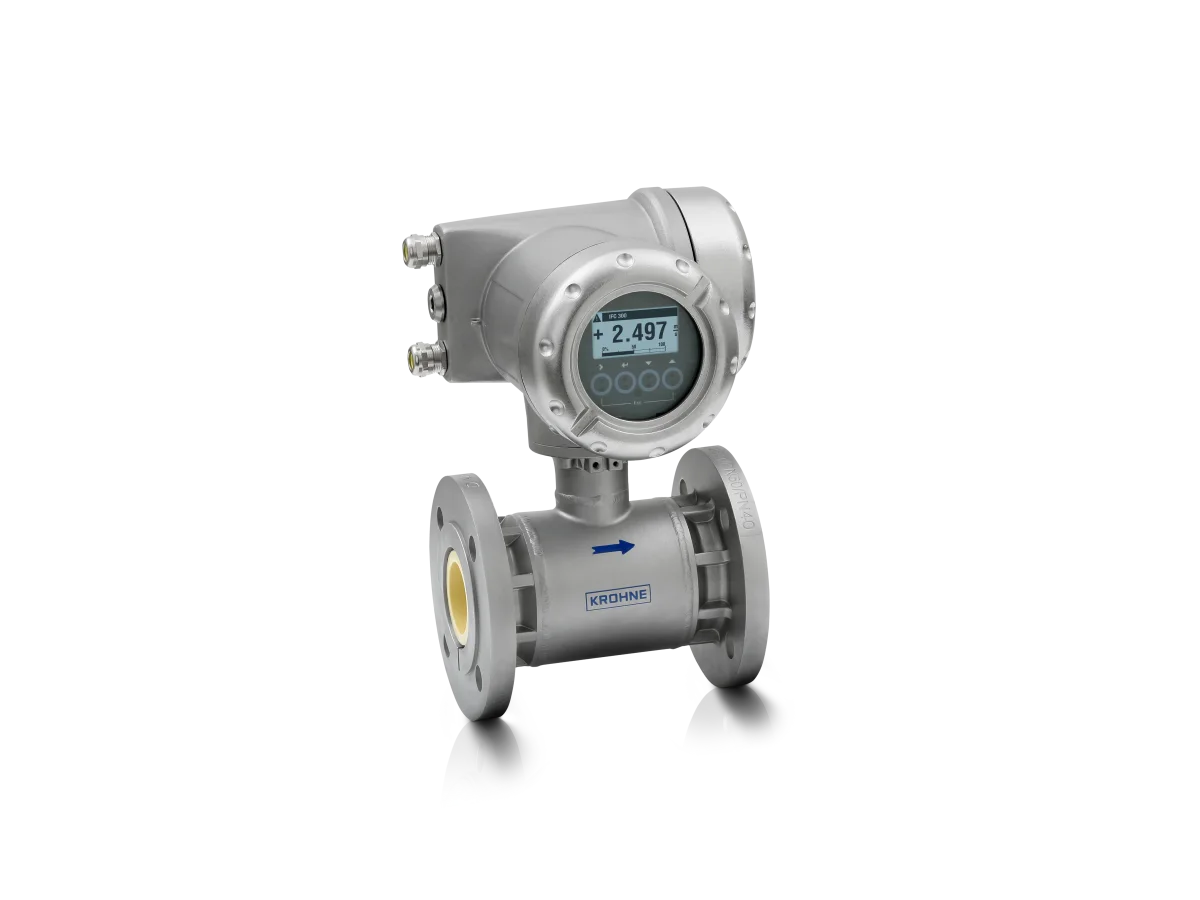

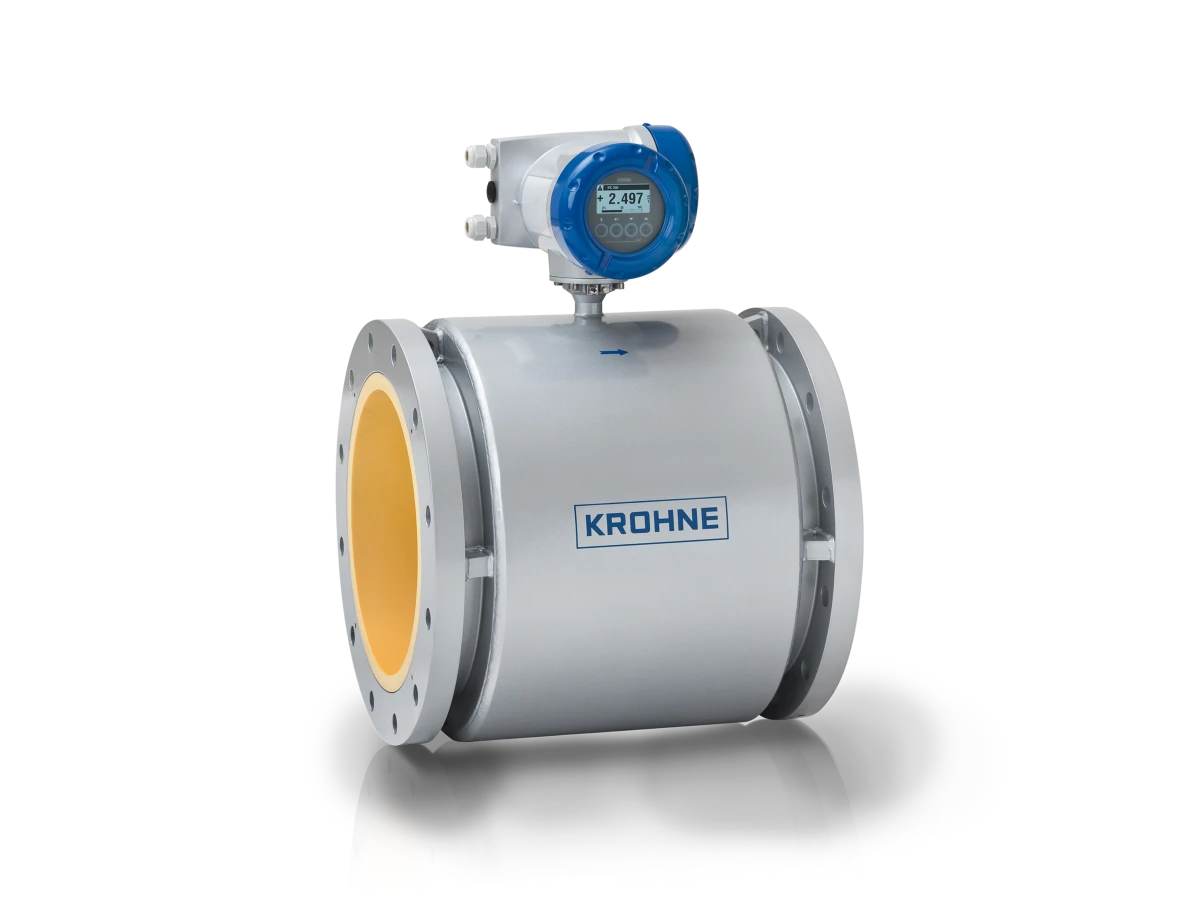

Flange connections

EN (1092-1): DN15…300

ASME (B 16.5): ½…12″

Other connections

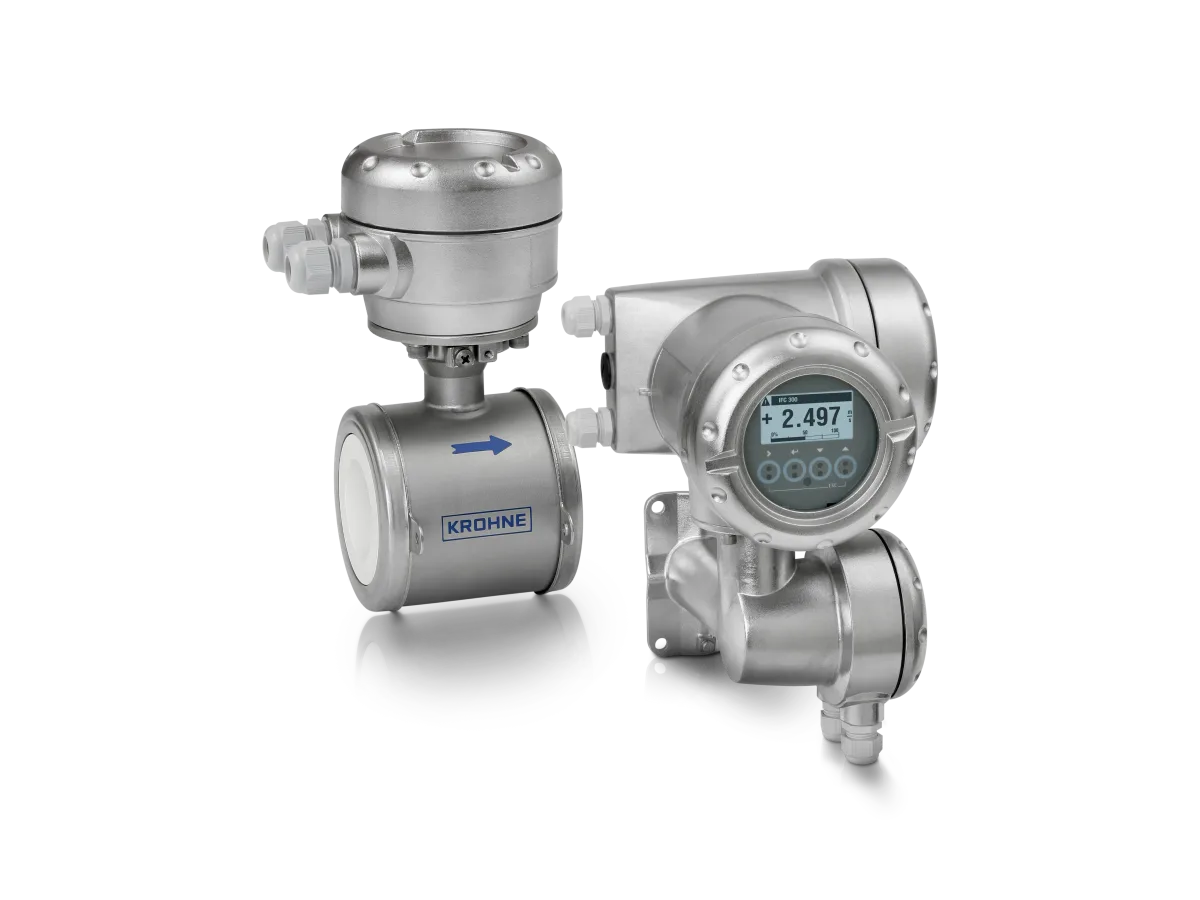

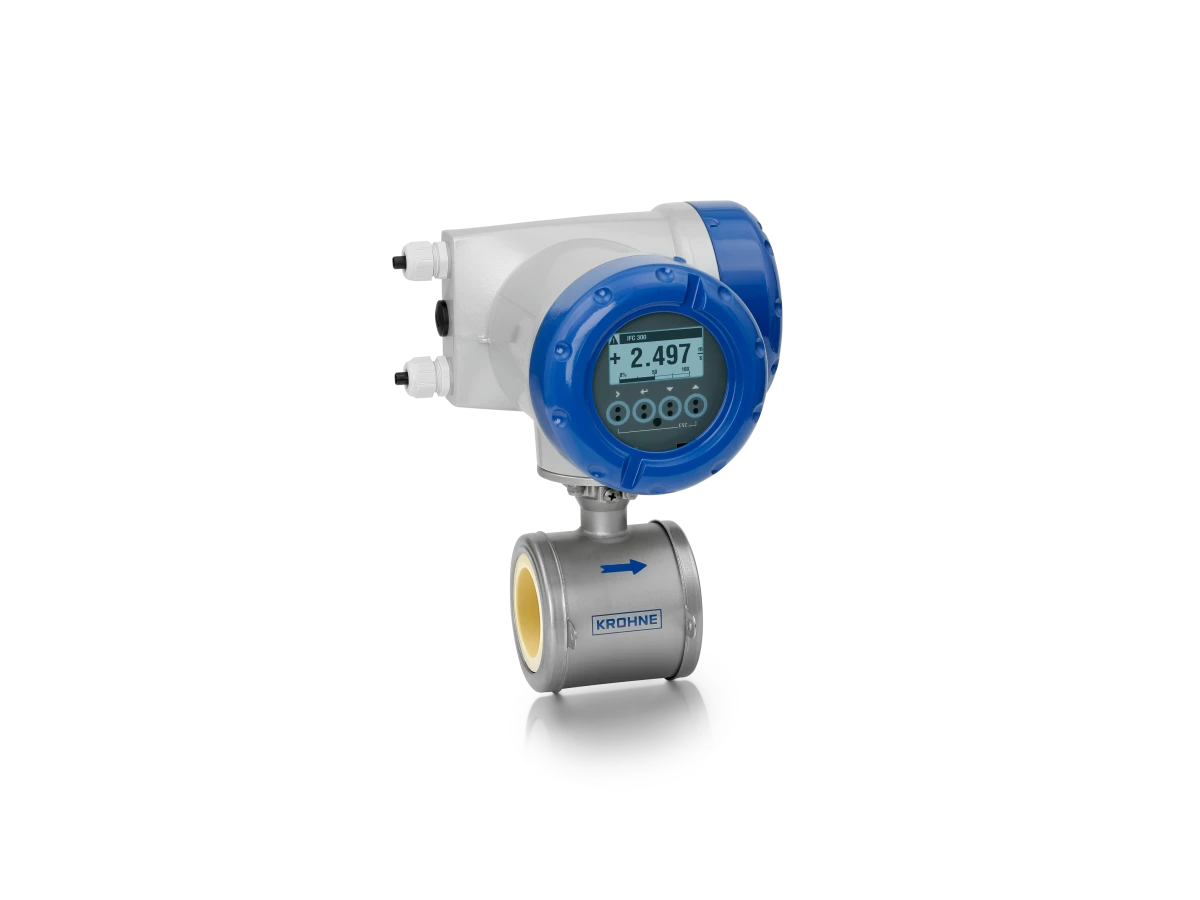

Sandwich (wafer) connection:

DN2.5…100

⅒…4″

Approvals/Standards

Certificates/Approvals Custody transfer (CT) MI-005, OIML R117

Certificates/Approvals Ex ATEX, IECEx, NEPSI, EAC Ex, INMETRO, FM, CSA, KCs, PESO, IA

Certificates/Approvals Hygienic FDA, EC 1935/2004, EC2023/2006

Certificates/Approvals Marine ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS

Communication

Analogue outputs 4…20 mA

Discrete outputs Limit switches, Pulse, Frequency, Status

Digital outputs FOUNDATION™ Fieldbus, HART®, Profibus-PA, Profibus-DP, Modbus RTU, PROFINET

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

Bi-directional flow measurement over a wide dynamic range (turn down ratio: 1000:1)
One of the most accurate EMFs in the market: Only ±0.15% / ±1 mm/s error of measured value (MV)
Transfer standard of international metrological authorities
Available with virtual reference grounding method: no grounding rings needed
Withstands highly aggressive and abrasive fluids
Extensive flowmeter and process diagnostics (incl. NE 107)
Fully vacuum-resistant with high-tech ceramic sensor material
Fused in-place cermet or platinum electrodes
First EMF with ceramic measuring tube to comply with the Pressure Equipment Directive
Resistance to corrosion and temperature shocks
Available as flange or sandwich (wafer) version
No moving parts, no wear, no pressure loss
On-site verification of flowmeter with OPTICHECK service tool
