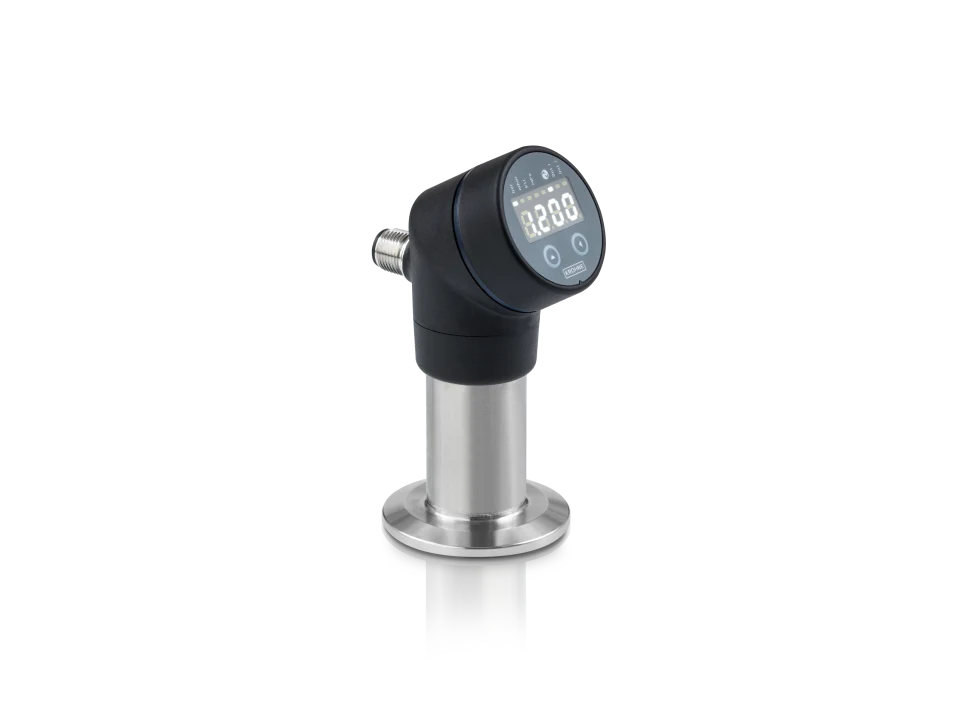

OPTIBAR PSM 2010

Pressure switch for hygienic level and pressure applications

Integrated display with switch state indication and 2-button setup
0.1…40 bar / 4…580 psi; max. +150°C / +302°F (for SIP/CIP)
With many flush-mounted hygienic process connections, also 3A certified
Fully configurable: IO-Link and PNP/NPN as standard I/O, 4…20 mA, 0…10 V or NPN/PNP as secondary output

Get a quote

The OPTIBAR PSM 2010 is an electronic pressure switch for applications in the food and beverage industry as well as the pharmaceutical industry. Its hygienic construction comes with a fully welded front-flush diaphragm to meet the most stringent industrial requirements in terms of crevice-free installation. The pressure switch provides long-term stable absolute or gauge pressure measurement of liquids and gases as well as hydrostatic level measurement. Due to its advanced digital compensation, the OPTIBAR PSM 2010 offers excellent temperature stability even during SIP/CIP cleaning cycles.

Product positioning

For hygienic level and pressure applications

Measurement principle

Hydrostatic

Measured media

Liquids, Gases

Measuring point

Open tank

Process pressure

max. 40 bar/580 psi

Process temperature

-40…+150°C/-40…+302°F

Diaphragm

Austenitic stainless steel (1.4435/316L)

Fill fluid

Silicone oil, Food grade oils (FDA listed)

Measuring cell seal

Fluoroelastomer rubber (FKM), Perfluoroelastomer rubber (FFKM)

Thread connections Male:

Hygienic G½, G1 for hygienic adapters

G½, G¾, G1 (DIN 3852)

Hygienic adapters Clamp (DIN 32676): DN25, DN32, DN40, DN50

Clamp (ISO 2852): 25, 38, 51

Tri-Clamp: ½”, 1″, 2″

VARIVENT®: N

Approvals/Standards

Certificates/Approvals Others Pressure Equipment Directive (PED)

Certificates/Approvals Hygienic FDA, 3A, EC 1935/2004

Ingress protection IP67

Communication

Analogue outputs 0…10 VDC, 4…20 mA

Discrete outputs NPN/PNP

Digital outputs IO-Link

Features & Options

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

Electronic pressure switch with transmitter functionality and integrated display with switch state indication and 2-button setup
Multi-rotatable display and adjustment module
Standard IO: PNP/NPN and IO-Link; Secondary output: 4…20 mA, 0…10 V or PNP/NPN
Perfectly suitable for aseptic processes due to its hygienic design and a broad selection of front-flush process connections
With fully welded pressure measuring cell with stainless steel diaphragm (1.4435 / 316L)
Outstanding temperature stability due to its digital compensation
Measuring accuracy ±0.35%
Robust IP67 rated construction
Available with optional cooling fins to handle continuous process temperatures >150°C / 302°F
VDMA-conform display menu structure
