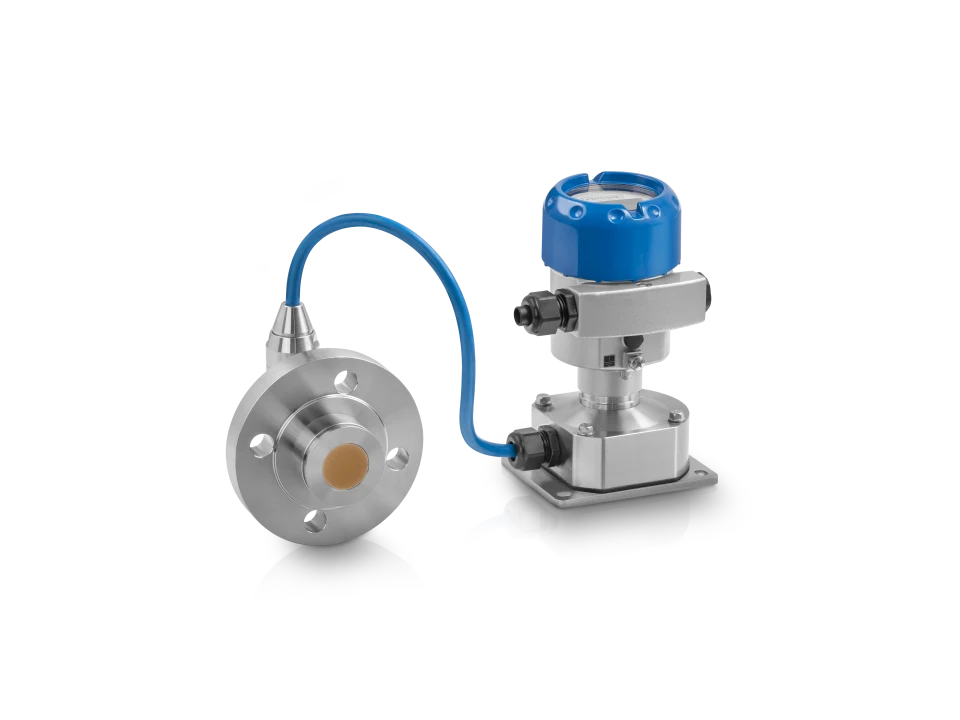

Pressure transmitter for advanced process pressure and level applications

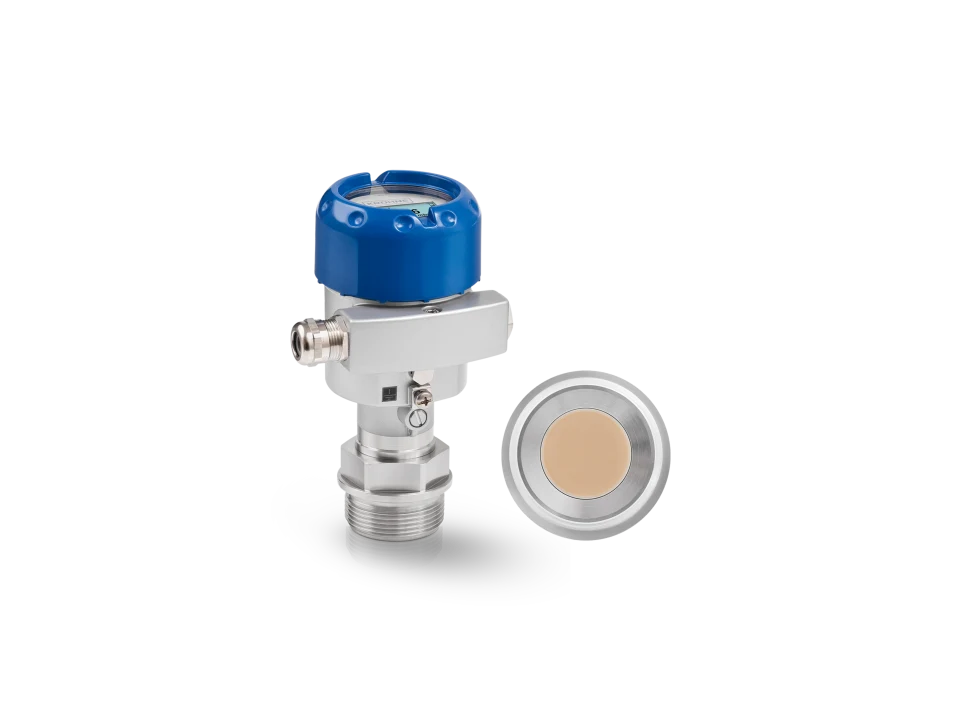

The OPTIBAR PC 5060 is a pressure transmitter for process pressure and hydrostatic level measurement in all kinds of process applications. It is designed for absolute and gauge pressure measurement in open tanks and – as dual version for electronic differential pressure measurement – also in closed vessels. The pressure device features a ceramic capacitive measuring cell that guarantees maximum overload and vacuum resistance for high plant availability.
For advanced pressure and level applications
Hydrostatic
Liquids, Gases, Steam
Open tank
max. 100 bar/1450 psi
-40…+150°C/-40…+302°F
Ceramic (Al2O3)
Dry measuring cell (without fill fluid)
Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM), Perfluoroelastomer rubber (FFKM)
EN (1092-1): DN15…100
ASME (B 16.5): 1…4″
G½ (EN 837-1)
G½ (DIN 3852, 11 mm bore)
G½, G¾ front flush (DIN 3852)
G1 front flush (cone 40°, cone 33.4°)
Hygienic G1 for hygienic adapters
G2 (DIN 3852)
½ NPT (11 mm bore)
1 NPT front flush
1½ NPT, 2 NPT
M20 x 1.5 (EN 837-1)
G½, G¼ (DIN 3852)
½ NPT, ¼ NPT
Clamp (DIN 32676): DN25, DN40, DN50
Clamp (ISO 2852): 25, 40, 51
Tri-Clamp: 1″, 1½”, 2″, 3″
Ferrule with collar (SMS 1147): 25 mm, 38 mm, 51 mm
Collar ferrule (DIN 11851): DN25, DN40, DN50
Ferrule with collar (DIN 11864-1A): DN40, DN50
Flange with collar (DIN 11864-2A): DN40, DN50
VARIVENT®: N, F
Hygienic fitting with compression nut: F40
NEUMO BioControl®: DN25, DN50, DN65, DN80
NEUMO BioConnect®: DN80
DRD and others
Certificates/Approvals Others Oxygen, Pressure Equipment Directive (PED)
Certificates/Approvals Ex ATEX, IECEx, NEPSI
Certificates/Approvals Hygienic FDA, 3A, EHEDG, EC 1935/2004
Certificates/Approvals Marine CCS, DNV, GL, NK
Certificates/Approvals Safety SIL 2/3
4…20 mA
FOUNDATION™ Fieldbus, HART®, Profibus-PA
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
