Pressure transmitter with ceramic diaphragm for basic pressure and level applications

  • Ultra-compact design with outstanding overload resistance, long-term stability and corrosion resistance

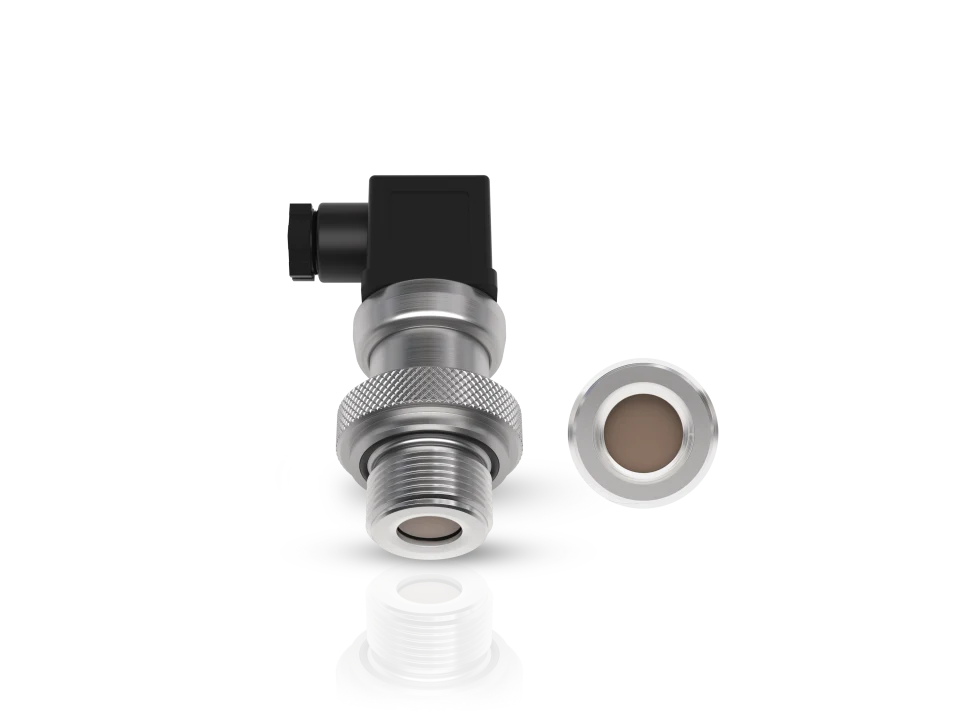

  • Capacitive measuring cell without fill fluid: recessed or front-flush ceramic diaphragm
  • Measuring range: 0.1…40 bar / 1.45…580 psi and max. +125°C / +257°F

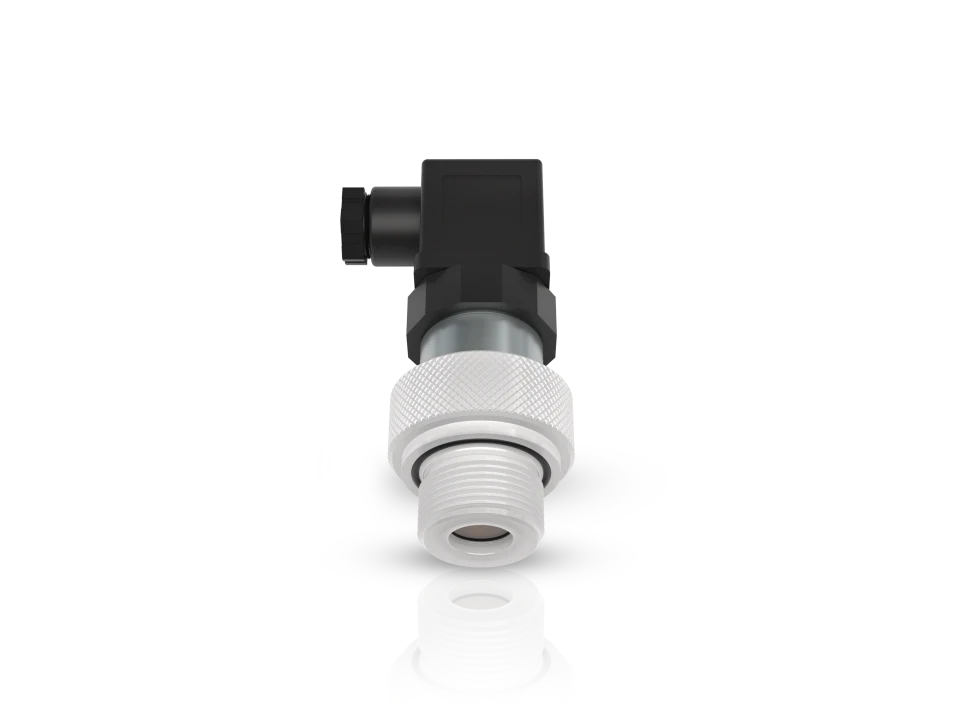

  • Thread: G¼, G½, G¾ (male), also available in metal-free PVDF or PP-HT

Get a quote

The OPTIBAR PC 1010 is an ultra-compact pressure transmitter with recessed or front-flush ceramic diaphragm for gauge pressure measurement. It offers a cost-effective solution for basic applications with liquids and gases up to 40 bar / 580 psi and temperatures up to +125°C / +257°F. Thanks to its robust design, the pressure transmitter is ideal for long-term stable pressure and level measurement in many industries. The capacitive ceramic measuring cell offers a high degree of safety and reliability. It does not require any fill fluid and is highly resistant to overpressure and overload and therefore also resistant to pressure surges. The high-performance ceramic also makes the pressure transmitter extremely robust against abrasive and aggressive media. The OPTIBAR PC 1010 allows for a space-saving installation. It comes with various threaded connections, which are available in stainless steel as well as in non-metallic materials for increased corrosion resistance.

Product positioning

For basic pressure and level applications

Measured media

Liquids, Gases, Vapours

Process pressure

max. 40 bar / 580 psi

Process temperature

– 40…+125°C/- 40…+257°F

Diaphragm

Ceramic (Al2O3)

Fill fluid

Dry measuring cell (without fill fluid)

Measuring cell seal

Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM), Perfluoroelastomer rubber (FFKM)

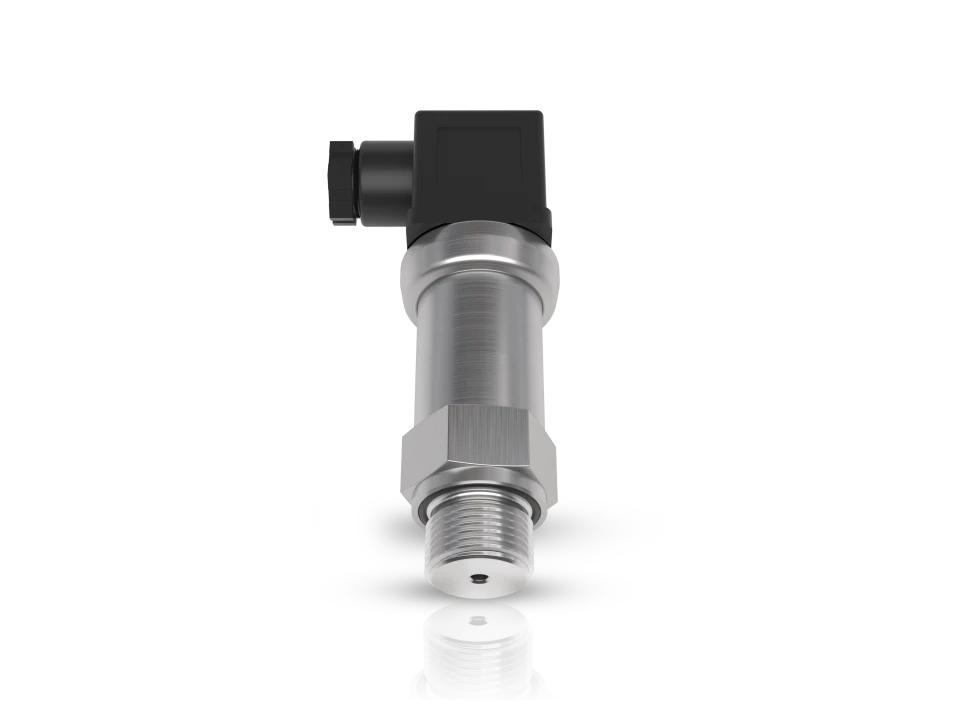

Thread connections Male (recessed):

G¼, G½, (EN 837-1)

G¼, G½ (DIN 3852)

available in 1.4404 / 316L

Male (front-flush):

G¾ (DIN 3852)

available in 1.4404 / 316L, PVDF or PP-HT

Approvals/Standards

Certificates/Approvals Others Pressure Equipment Directive (PED)

Certificates/Approvals Ex ATEX, IECEx

Certificates/Approvals Potable Water DVGW

Ingress protection IP68

Communication

Analogue outputs 4…20 mA

Accuracy (liquids) Max. measuring error of URV (Upper Range Volume):

±0.35…±0.25%

Long-term stability:

±0.1% (within 1 year)

Features & Options

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

  • Excellent mechanical resistance to pressure surges, water hammers and abrasion due to high-performance ceramic diaphragm
  • High chemical resistance to aggressive media
  • Increased process safety thanks to dry measuring cell without fill fluid
  • Suitable for potable water
  • Excellent accuracy (down to ±0.25% error) and long-term stability (±0.1%/year)
  • Outstanding temperature stability
  • Modular design offers free combination of device options such as electrical connections, measuring ranges and process connections
  • Space saving design for installation in limited spaces
  • Threaded connections in stainless steel (1.4404 / 316 L) or in plastics for increased corrosion resistance
  • Ingress protection up to IP68
  • Available as a variant with potable water approval (DVGW)
  • ATEX / IECEx intrinsically safe approval for Zone 0
