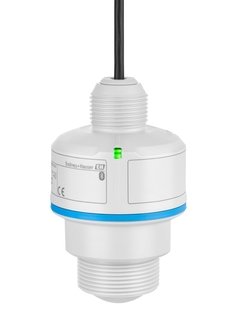

Micropilot FMR10B – radar sensor for basic applications
Micropilot FMR10B – radar sensor for basic applications

Micropilot FMR10B – radar sensor for basic applications

The Micropilot FMR10B supplies continuous non-contact level measurement with 80 GHz technology. It is the perfect match for basic applications in the Water & Wastewater industry as well as for Mining, Minerals & Metals and utilities across all industries. Guiding wizards guarantee simplicity in installation and commissioning. It is also ideal for limited space applications thanks to its compact design.

Get a quote

The Micropilot FMR10B is a free space radar device with a measuring range of up to 10m (33ft) for basic applications in liquids and solids. It is suitable for the level measurement in a wide range of applications:

  • Open basins
  • River monitoring
  • Storage tanks
  • Silos
  • Stockpiles

Benefits

  • Fast and easy commissioning thanks to guided setup sequences (wizards)
  • Bluetooth connectivity enables easy, reliable and encrypted wireless remote access
  • Device identification during Bluetooth connection thanks to “It’s me-function” (LED flashing) and status indication via LED
  • Simple device selection thanks to clear segmentation and easy configuration

Supply / Communication

2-wire (4…20 mA)

Bluetooth® wireless technology and App (optional)

Frequency

W-Band (~80 Ghz)

Accuracy

Liquids:+/- 5 mm (0.2″)

Solids:+/- 10 mm (0.39″)

Ambient temperature

-40…+60°C

(-40…+140°F)

Process temperature

-40…+60°C

(-40…+140°F)

Process pressure / max. overpressure limit

-1…3 bar

(-14.5…43 psi)

Main wetted parts

PVDF, PBT/PC

Process connection

Thread:

G1″, NPT1″, G1-1/2″, NPT1-1/2″

Max. measurement distance

10 m (32.8 ft)

Communication

4…20 mA

Bluetooth® wireless technology

Options

Remote operation via SmartBlue App using

Bluetooth®

Flooding protection tube

Different mounting possibilities

Application limits

Process temp. <-40°C (-40°F) or > 60°C (140°F) ->

FMR62B

Very aggressive media -> FMR62B

Turbulences, stilling well and bypass -> FMR62B

Strong foam and interfaces –> FMP5x

Features:

  • Compact 80 GHz FMCW radar sensor for continuous, non-contact level measurement of liquids
  • Ideal for simple applications in tanks, reservoirs, and utility vessels
  • Measuring range up to 10 m (33 ft)
  • Maintenance-free operation with no moving parts
  • Reliable measurement even with condensation, vapors, or slight foam
  • Easy configuration via Bluetooth® and SmartBlue app
  • Integrated Heartbeat Technology for diagnostics and functional verification
  • 2-wire, loop-powered design for straightforward installation
  • HART communication protocol
  • Robust IP66/68 and NEMA Type 4X/6P housing suitable for harsh environments
