H250 M8

Variable area flowmeter for liquids and gases

Mechanical or with electronic bargraph indicator (4…20 mA/HART®)
Flange: DN15…25 / ½…1″; also NPT, G, hygienic connections, etc.
-40…+200°C / +392°F; max. 145 barg / 2102 psig

Get a quote

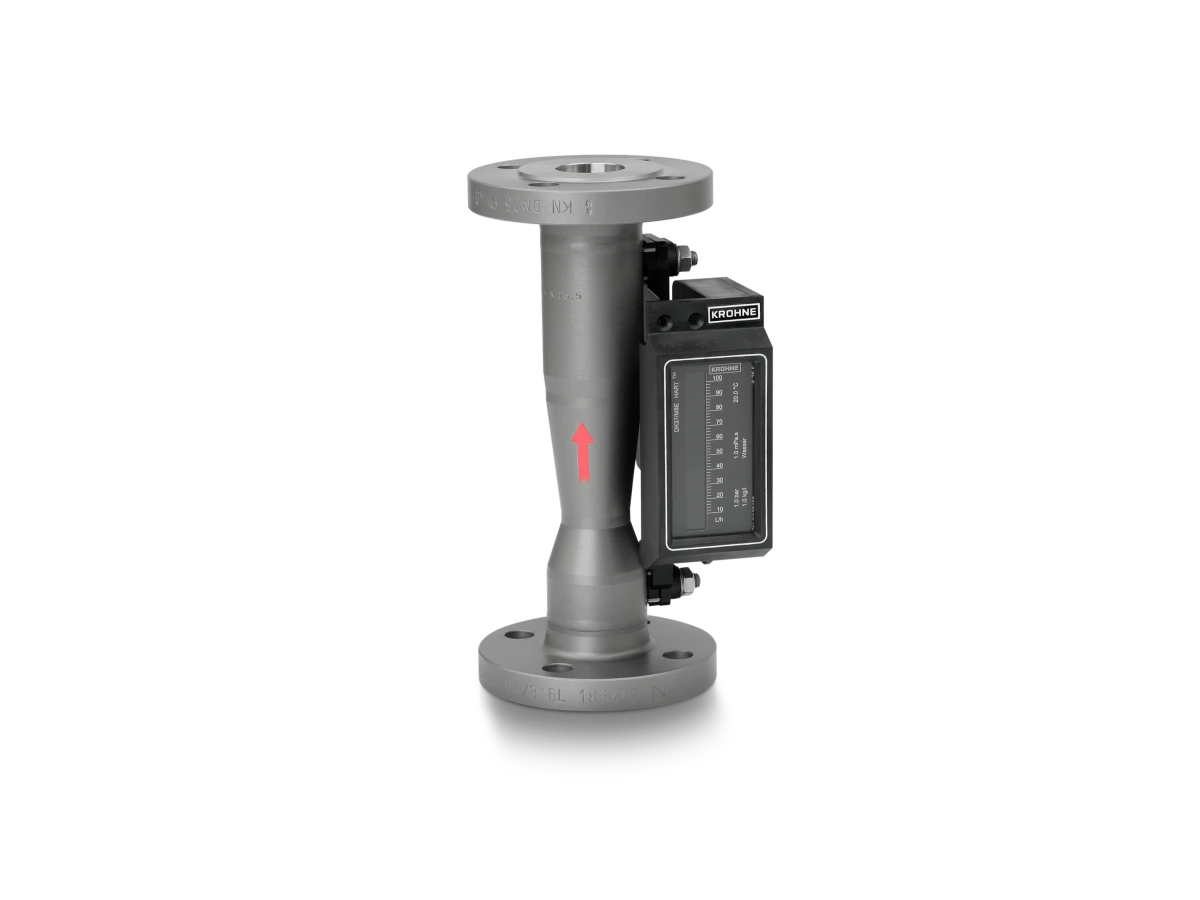

The H250 M8 is a variable area (VA) flowmeter with electrical signal output and bargraph indication or mechanical indication with two optional limit switches. The compact flowmeter allows space-saving installation. It is thus highly suitable for installation in limited spaces. The H250 M8E version features magnetic sensors recording the position of the float without contact or hysteresis. Standard system operation is with a linear analogue output in 2-wire technology (4…20 mA). The H250 M8M version operates without auxiliary power. The flow value as well as the optional two limit switch setpoints are displayed on the scale. It has approvals for use in hazardous areas and comes with a wide range of process connections.

Product positioning

For liquids and gases

Measurement principle

Variable area float

Measured media

Liquids, Gases

Process pressure

max. 145 barg/2102 psig

Process temperature

-40…+200°C/-40…+392°F

Materials

Measuring tube Austenitic stainless steel (1.4404/316L), Austenitic alloy (2.4610/Alloy C4), Nickel alloy (2.4360/Alloy 400), Titanium alloy (3.7035/Ti-Grade 2), Nickel-chrome-molybdenum-tungsten alloy (2.4819/Alloy C276), Nickel-chromium-molybdenum-niobium alloy (2.4856/Alloy 625), Austenitic stainless steel (1.4547/6Mo)

Gaskets

None

Process connection

Austenitic stainless steel (1.4404/316L), Nickel alloy (2.4360/Alloy 400), Austenitic alloy (2.4610/Alloy C4), Nickel-chrome-molybdenum-tungsten alloy (2.4819/Alloy C276), Nickel-chromium-molybdenum-niobium alloy (2.4856/Alloy 625), Titanium alloy (3.7035/Ti-Grade 2), Austenitic stainless steel (1.4547/6Mo)

Process connections

Flange connections EN (1092-1): DN15…50

ASME (B 16.5): ½…2″

JIS (B 2220): 15…150A

Thread connections Female:

G½, G¾, G1

½ NPT, ¾ NPT, 1 NPT

Hygienic connections

Clamp (DIN 32676): DN15, DN25, DN32, DN40, DN50, DN80

Clamp (ISO 2852): 25, 40, 51, 76.1

Tri-Clamp: ½”, 1″, 2″

Threaded ferrule

(DIN 11851): DN15, DN25, DN40, DN50, DN80

Flange with groove

(DIN 11864-2): DN15, DN25, DN50, DN80

Threaded ferrule

(SMS 1146): 25 mm, 51 mm, 76 mm

Approvals/Standards

Certificates/Approvals Ex ATEX, cQPSus, IECEx, NEPSI, EAC Ex

Certificates/Approvals Safety SIL 2

Communication

Analogue outputs 4…20 mA

Discrete outputs Limit switches

Digital outputs HART®

Features & Options

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

The space-saving standard VA meter
PPS housing as standard, stainless steel housing as option
Optional limit switches or 2-wire 4…20mA
Ingress protection IP66/67
Full scale value for liquids: 10…6,300 l/h / 5…1664 GPH
Full scale value for gases: 0.7…180 m3/h / 25…111 SCFH
Turndown ratio 10:1
Maximum measuring error: ±2.5% (acc. to VDI/VDE 3513-2) or ±2% of full scale
Approvals for use in hazardous areas
