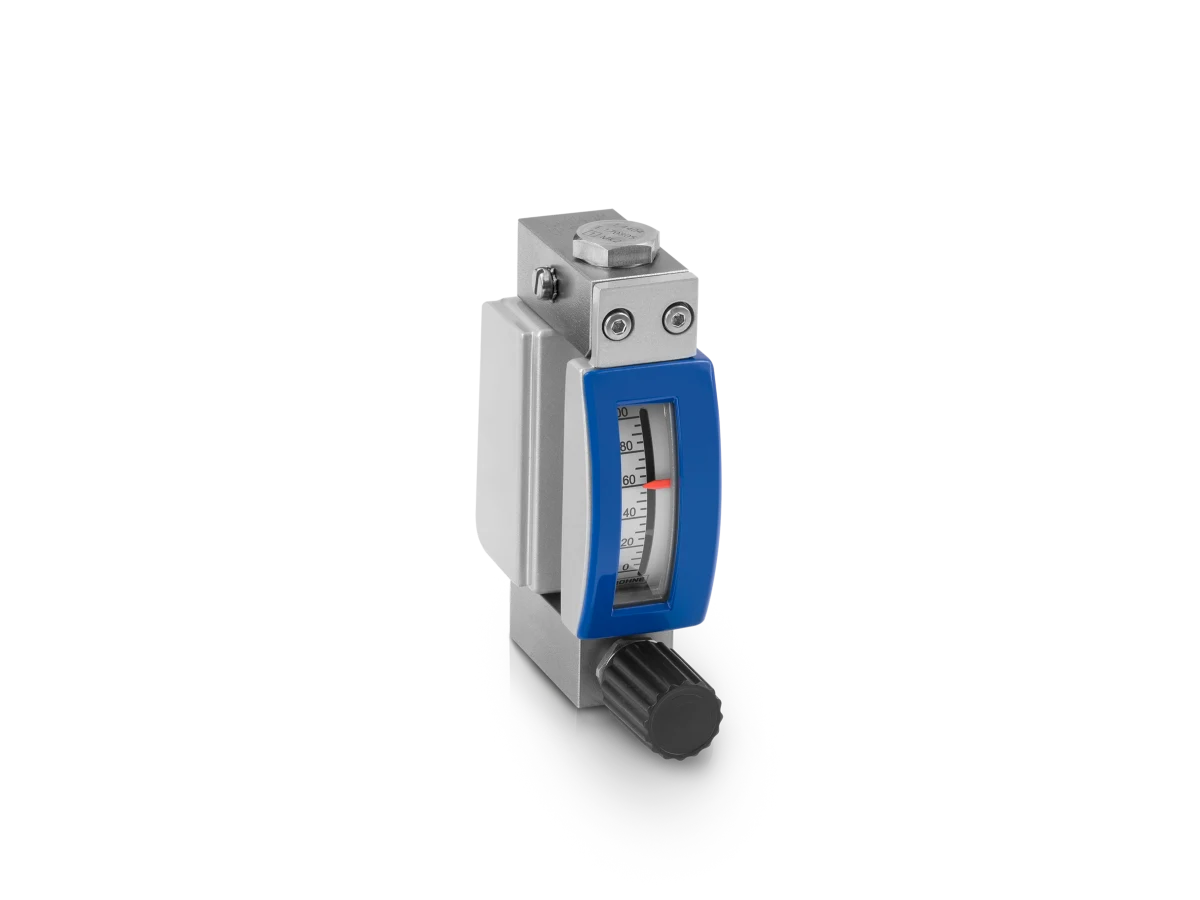

Variable area flowmeter for low liquid and gas flows
The DK32/34 is a variable area (VA) flowmeter for measuring low flow rates of liquids and gases. The tried and tested meter is particularly suitable for flow monitoring and dosing in gas analyser systems or on purge panels. Due to its robust all-metal design it can also be used in difficult process conditions with temperatures up to +200°C / +392°F or pressures up to 400 barg / 5800 psig. It is available with a metering valve as standard to accurately set the flow value.
For low liquid and gas flows
Variable area float
Liquids, Gases
max. 220 barg/3190 psig
-40…+200°C/-40…+392°F
Measuring tube Austenitic stainless steel (1.4404/316L), Austenitic alloy (2.4610/Alloy C4), Nickel alloy (2.4360/Alloy 400), Titanium alloy (3.7035/Ti-Grade 2), Nickel-chrome-molybdenum-tungsten alloy (2.4819/Alloy C276), Nickel-chromium-molybdenum-niobium alloy (2.4856/Alloy 625), Passivation with SilcoNert®2000
Polytetrafluoroethylene (PTFE), Perfluoroelastomer rubber (FFKM), Fluoroelastomer rubber (FPM), DK34: none
Austenitic stainless steel (1.4404/316L), Nickel alloy (2.4360/Alloy 400), Austenitic alloy (2.4610/Alloy C4), Nickel-chrome-molybdenum-tungsten alloy (2.4819/Alloy C276), Nickel-chromium-molybdenum-niobium alloy (2.4856/Alloy 625), Titanium alloy (3.7035/Ti-Grade 2), Passivation with SilcoNert®2000
EN (1092-1): DN15…25
ASME (B 16.5): ½…1″
G¼
¼ NPT, ½ NPT
Others Tube fittings
Swagelok;Serto, Ermeto; Hose; Gyrolok
Certificates/Approvals Others CRN, NACE
Certificates/Approvals Ex ATEX, cQPSus, IECEx, NEPSI, EAC Ex, INMETRO, KCs, JPNEx
Certificates/Approvals Nuclear Nuclear qualification on request (e.g. acc. to ASME III, RCC-M/E, etc.)
Certificates/Approvals Safety SIL 2
Analogue outputs 4…20 mA
Discrete outputs Limit switches
Digital outputs HART®
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
