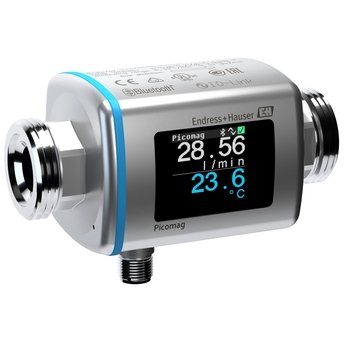

Smart magmeter for utilities – intuitive · convenient · multivariable. Time-saving, easy configuration even in places difficult to reach – secure Bluetooth connection. Ideal for process quality control and monitoring due to temperature and conductivity measurement in utilities.
Make sure the document is stored in a safe place such that it is always available when working on or with the device. To avoid danger to individuals or the facility, read the “Basic safety instructions” section carefully, as well as all other safety instructions in the document that are specific to working procedures. The manufacturer reserves the right to modify technical data without prior notice.
DN15 to 50 (1/2 to 2″)
PEEK, Stainless Steel, FKM, EPDM
Electrodes: 1.4404/316L
Volume flow, Temperature, Conductivity
Volume flow: +/-0.8% o.r. +/- 0.1% o.f.s
up to 750 l/min
16 bar
-10 to 70°C (+14 to +158 °F)
Permissible short-term temperature, maximum one hour:
85 °C (185 °F)
Repetition after 4 hours at the earliest
-10 to 60 °C
1.4404/316L, Polycarbonate
1.4404/316L, Polycarbonate
IP 65/67
Integrated display, operation via Bluetooth technology
Current (4 to 20mA)
Pulse
Switch
Voltage (2 to 10V)
Status
Digital communication
IO-Link
18 to 30V DC
cULus listing
Drinking water approvals: NSF
Fewer measuring points necessary – simultaneous flow, conductivity and temperature measurement. Cost-efficient specialist for use in tight spaces e.g. skids – sensor and transmitter in one housing. High shock and vibration resistance. Degree of protection: IP65/67. Empty pipe detection.
Quick offline configuration check – unique, comfortable knock functionality. Simple device access through its whole lifecycle – no manual needed due to intuitive SmartBlue app. Effortless configuration of several devices – settings can be saved and loaded into other meters. Flexible integration into all fieldbus systems – plug-and-play device with IO-Link. Wireless remote access via Bluetooth SmartBlue app. IO-Link and various I/Os for all line-sizes. 1.4″ TFT color display with backlight.
