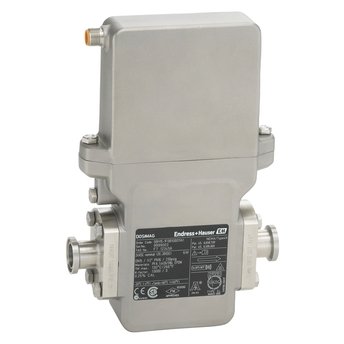

Flowmeter with hygienic design, highest repeatability and an ultracompact sensor. For demanding dosing and filling applications.

Get a quote

The measuring principle is practically independent of pressure, density, temperature and viscosity. For demanding batching and dosing applications

Benefits:

  • High process safety – high measuring accuracy and repeatability in shortest filling time

• Energy-saving flow measurement – no pressure loss due to crosssection constriction

• Maintenance-free – no moving parts

• Versatile and time-saving wiring – plug connector

• Industry-optimized – ultra-compact design

• For hygiene requirements – stainless steel housing

Nominal diameter range

DN 4 (⁵⁄₃₂”), 8 (⁵⁄₁₆”), 15 (½”), 25 (1″)

Wetted materials

Liner: PFA

Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022),

Tantalum,

Platinum

Measured variables

Volume flow

Max. measurement error

±0.25 % o.r. ± 1 to 4 m/s (3.3 to 13 ft/s)

±0.5 % o.r. ± 1 mm/s (0.04 in/s)

±5 % o.r.

Measuring range

0.14 to 1.66 l/s (0.035 to 0.44 gal/s)

Max. process pressure

PN 16

Medium temperature range

Seal material EPDM: –20 to +130 °C (–4 to +266 °F)

Seal material Silicone: –20 to +130 °C (–4 to +266 °F)

Seal material Viton: 0 to +150 °C (+32 to +302 °F)

Ambient temperature range

–40 to +60 °C (–40 to +140 °F)

Sensor housing material

1.4308 (304)

Transmitter housing material

1.4308 (304)

Degree of protection

IP66/67, type 4X enclosure

Display/Operation

No local Operation

Configuration via operating tools possible

Outputs

Pulse/frequency/switch output (passive)

Inputs

None

Digital communication

Modbus RS485

Power supply

DC 20 to 30 V

Hazardous area approvals

ATEX, IECEx, cCSAus

Product safety

CE

Metrological approvals and certificates

Calibration performed on accredited calibration facilities (acc.to ISO/IEC 17025)

NTEP

Material certificates

3.1 material

Hygienic approvals and certificates

Sanitary approval: 3-A, EHEDG, seals acc. to FDA

Sensor features

High process safety – high measuring accuracy and repeatability inshortest filling time. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts. Wetted materials CIP, SIP cleanable. Nominal diameter: DN 4 to 25 (¹⁄₈ to 1″). Measuring device conform to FDA.

Transmitter features

Versatile and time-saving wiring – plug connector. Industry-optimized –ultra-compact design. For hygienic requirements – stainless steel housing.

Pulse/frequency/switch output, Modbus RS485. Custody transfer approvals (MID, NTEP). Excellent, easily cleanable transmitter.
