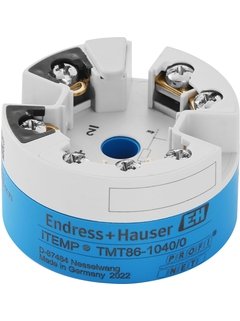

iTEMP TMT86 temperature transmitter

The iTEMP TMT86 is a reliable, intelligent and future proof dual-channel Ethernet-APL PROFINET temperature head transmitter for thermometers with terminal head form B and is suitable for use in hazardous areas. Beneficial diagnostic functions like corrosion monitoring of the sensor wires help to improve the plant up-time. The embedded webserver and the up-to-date FDI package simplifies the device configuration and integration.

Get a quote

PROFINET® temperature transmitter as head or field device with two universal sensor inputs suitable for use in hazardous areas with Ethernet-APL™ Ethernet-APL: 2-wire Ethernet IEEE 802.3cg 10BASE-T1L. Temperature measurement with two independent universal inputs (RTD, Ω, TC, mV). System integration with PROFINET®. Installation in terminal head form B (flat face) as per DIN EN 50446. Optional: installation in field housing for Ex d applications. Reliability, long-term stability, high precision and advanced diagnostic function in critical processes

Benefits

Digital communication down to the field level, even in explosive atmosphere
Easy and standardized system integration via PROFINET® Profile 4
Integrated web server offers simplicity during commissioning and maintenance
High accuracy of measuring point through sensor-transmitter matching
Reliable operation with sensor monitoring and device hardware fault recognition

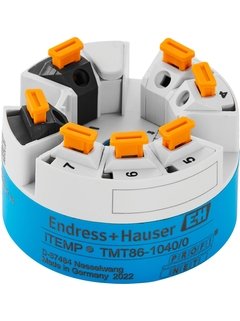

Fast and tool-free wiring thanks to push-in terminal technology, optional
Attachable measured value display, optional

Measuring principle

Head transmitter

Input

2 x RTD, TC, Ohm, mV

Output

PROFINET

Auxiliary power supply

9,6…15 V DC (Ethernet-APL)

20…30 V DC (SPE)

Communication

PROFINET with Ethernet-APL

Installation

Terminal head form B / in field

Accuracy

(Pt100, -50…200 °C) <= 0,1 K

(Pt100, -58…392 °F) <= 0,18 °F

Galvanic isolation

yes

Certification

ATEX Ex ia, Ex ic, Ex tc, Ex ec, Ex db, Ex tb

ATEX IECEx Ex ia, Ex tb

IECEx Ex d, Ex tb

CSA C/US General Purpose

CSA C/US IS, NI, XP, DIP, AEx/Ex ia, NI, AEx/Ex ec

INMETRO Ex ia, Ex d, Ex tb

NEPSI Ex ia, Ex d

Features

Dual-channel (two independent universal sensor inputs) supporting RTD, resistance (Ω), thermocouple (TC) and millivolt (mV) signals.
Communication interface: PROFINET with Ethernet-APL (2-wire AT IEEE 802.3cg 10BASE-T1L) for field-level digital communication.

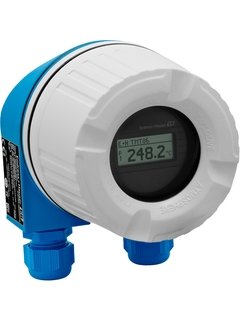

Designed for head-mounting in terminal head form B (flat‐face) per DIN EN 50446, and optionally in field housing (e.g., for Ex d installations) for hazardous areas.
High accuracy: for instance Pt100 in range –50…200 °C has accuracy ≤ 0.1 K.
Advanced diagnostics: sensor monitoring (e.g., corrosion monitoring of sensor wires), device-hardware fault recognition, high process availability.
Tool-free wiring (optional push-in terminals) and optional attachable display for measured value.
Suitable for use in explosive atmospheres (hazardous areas) with appropriate versions/certifications.
