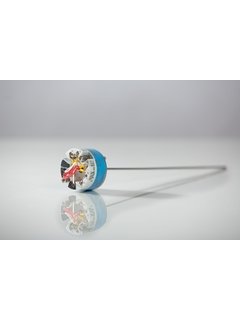

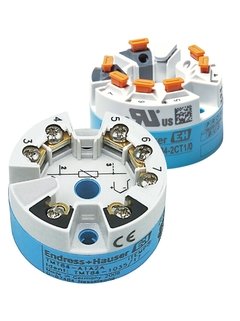

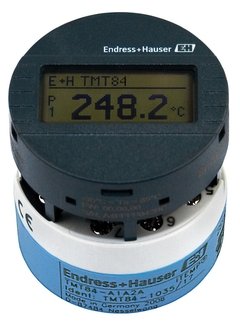

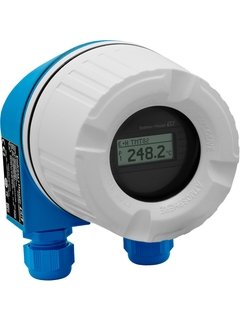

PROFIBUS® temperature transmitter as head or field device with two universal sensor inputs suitable for use in hazardous areas. 2 input channels and PROFIBUS® PA protocol for the conversion of input signals into digital output signals. The device stands out due to signal reliability, long-term stability, high precision and advanced diagnostics (important in critical processes). For the highest level of safety, availability and risk reduction. Installation in flat-face terminal head as per DIN EN 50446. Optional installation in field housings even for use in Ex d areas – with mounting brackets for wall or pipe mounting.
Benefits
- Easy and standardized communication via PROFIBUS® PA Profile 3.02
- Meets the EMC requirements as per NAMUR NE 21 and the recommendations of NE 89 with regard to temperature transmitters with digital signal processing
- Straightforward design of measuring points in Ex-areas through FISCO/FNICO conformity in accordance with IEC 600079-27
- Safe operation in hazardous areas thanks to international approvals such as FM IS, NI, CSA IS, NI as well as ATEX Ex ia, Ex nA (Ex nL)
- High accuracy through sensor-transmitter matching
- Reliable operation with sensor monitoring and device hardware fault recognition
- Rapid no-tools wiring due to optional spring terminal technology
Measuring principle
Head transmitter
Input
2 x RTD, TC, Ohm, mV
Output
PROFIBUS PA
Auxiliary power supply
9…32 V DC (PROFIBUS PA)
9…17,5 V DC (FISCO/FNICO)
Communication
PROFIBUS PA
Installation
Terminal head form B
Accuracy
(Pt100) <= 0,1 K
(Pt100) <= 0,18 °F
Galvanic isolation
yes
Certification
ATEX Ex ic, Ex tb, Ex ia, Ex nA,Ex tc, Ex d
ATEX IECEx Ex ia
IECEx Ex ia, Ex tb, Ex d
CSA C/US General Purpose
CSA IS, NI, XP, DIP
FM IS, NI, XP, DIP
FM+CSA IS, NI
INMETRO Ex ia [ia Ga], Ex d, Ex tb
NEPSI Ex ia, Ex d, Ex tb
EAC Ex ia, Ex d
UKCA Ex tb, Ex tc, Ex ia, Ex nA, Ex db
Features
- Accuracy for Pt100 sensor: ≤ 0.1 K.
- Installation in terminal heads according to DIN EN 50446, or in field housings (including Ex d zones) via mounting bracket.
- Extensive diagnostics: sensor monitoring (open/short/cable corrosion), device hardware fault recognition.
- Compliant for use in hazardous areas: approvals such as ATEX Ex ia, Ex nA etc. FISCO/FNICO conformity (IEC 60079-27) for use on PROFIBUS segments in explosive atmospheres.
- Communication via PROFIBUS PA ensures standardized digital integration in automation systems.
- Rapid tool-free wiring option (spring terminals) for installation convenience.
- Compatibility mode for easy replacement of previous model (TMT184).
