HART® temperature transmitter as head, field or DIN rail device with two universal sensor inputs suitable for use in hazardous areas and SIL 2. Safe operation in hazardous areas; International approvals such as FM, CSA, ATEX, EAC, NEPSI, IECEx, DNV GL. 2-channel universal signal inputs: RTD, thermocouple, resistance (Ω) and voltage transmitters (mV), HART® 7 protocol. Suited for use in marine applications. Installation in explosion proof field housings; Protection class up to IP 68. Fits in flat-face terminal heads as per DIN EN 50446. Cabinet or DIN rail mounting; width: 17.5 mm.
Benefits
- Robust temperature transmitter delivering precise, long-term stable measurements for high plant availability
- SIL certification up to SIL2, SC3 according to IEC 61508:2010

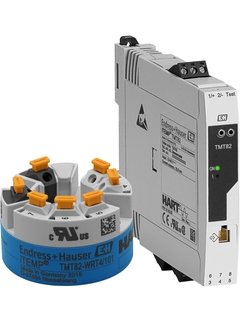

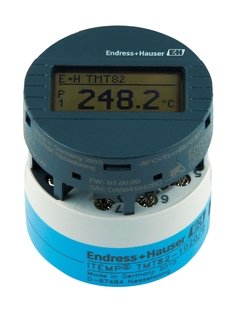

- Versatile mounting and housing options: terminal head form B, DIN rail, field housing with separate terminal compartment, integrated display (TID10)
- Transmitter-sensor matching for highest measurement accuracy
- Sensor and hardware failure detection; diagnostic status information according to NAMUR NE 107

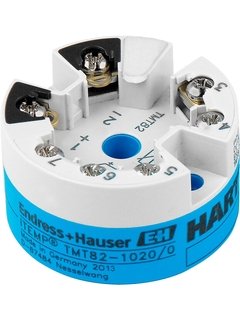

- Time-saving installation: Tool-free wiring with push-in terminal technology
Measuring principle
Head transmitter
Input
2 x RTD, TC, Ohm, mV
Output
1 x analog 4…20 mA / HART
Auxiliary power supply
11…42 V DC (head transmitter)
12…42 V DC (Din rail device)
11/12…30 V DC (Ex ia)
Communication
HART-protocol
Installation
Terminal head form B, DIN-Rail housing or field mount housing
Accuracy
(Pt100, -50…200 °C) <= 0,1 K
(Pt100, -58…392 °F) <= 0,18 °F
Galvanic isolation
yes
Certification
ATEX Ex ia, Ex ic, Ex tb, Ex tc, Ex nA, Ex d
ATEX IECEx Ex ia
IECEx Ex ia, Ex tb, Ex d
CSA C/US General Purpose
CSA IS, NI, XP, DIP
FM IS,NI, XP, DIP
FM+CSA IS, NI
INMETRO Ex ia [ia Ga], Ex d, Ex tb
NEPSI Ex ia, Ex d, Ex tb, Ex ec
EAC Ex ia, Ex d
UKCA Ex ia, Ex tb, Ex tc, Ex nA, Ex db
Features
- Dual‐channel input: supports two independent sensor inputs (e.g., two RTDs or two thermocouples) for redundancy or differential/average measurement.
- Universal sensor input types: RTD (Pt100, Pt200, Pt500, Pt1000 etc.), thermocouples (TC), resistance (Ω), and voltage (mV).
- Output: Analog 4‑20 mA loop plus digital communication via HART® (HART® 7 protocol) in the standard version.
- High accuracy: For Pt100 in range –50…+200 °C the accuracy is ≤ 0.1 K.
- Advanced diagnostics: Sensor monitoring (open/short circuits, wiring errors), corrosion detection of sensor wiring (NAMUR NE 89), diagnostics in line with NAMUR NE 107.
- Functional safety certification: SIL 2 / SC3 compliant (hardware/software) per IEC 61508.

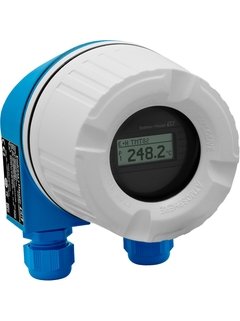

- Flexible mounting/housing: Can be installed in terminal head (DIN EN 50446 Form B), DIN‑rail housing or field housing including Ex d mounting.
- Wide approval list for hazardous areas: ATEX, IECEx, FM, CSA, NEPSI, EAC etc.
- Protective rating and ruggedness: Options up to IP68 for field mounting.
