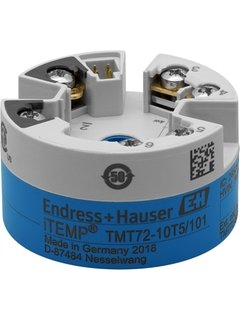

HART® temperature transmitter as head, field or DIN rail device with one universal sensor input suitable for use in hazardous areas. Bluetooth®-enabled temperature transmitter with HART® communication for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal. Improved process efficiency and increased plant uptime. Universal input for RTD, TC, resistance transmitters (Ω), voltage transmitters (mV). Installation in terminal head form B (flat face) as per DIN EN 50446. Installation in cabinets with DIN rail housing. Optional installation in field housing even for use in Ex d applications.
Benefits
- Safe operation in hazardous areas thanks to international approvals
- Reliable operation thanks to sensor and device monitoring
- Integrated Bluetooth® interface for the wireless display of measured values and configuration via E+H SmartBlue (app), optional
- Diagnostics information according to NAMUR NE 107

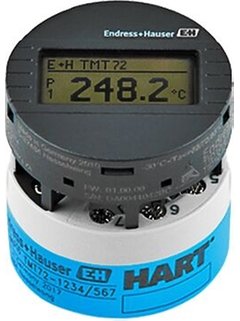

- Available with plug-on display TID10
Measuring principle
Head transmitter
Input
1 x RTD, TC, Ohm, mV
Output
1 x analog 4…20 mA / HART
Auxiliary power supply
10…36 V DC (Head transmitter)
11…36 V DC (DIN rail device)
10/11…30 V DC (Ex ia)
Communication
HART-protocol
Bluetooth® wireless technology
Installation

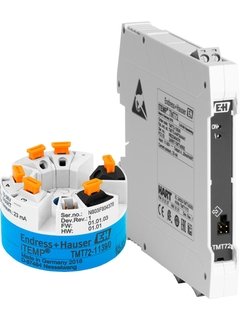

Terminal head form B / DIN rail / field mount housing
Accuracy
(Pt100, -50…200 °C) <= 0,1 K
(Pt100, -58…392 °F) <= 0,18 °F
Galvanic isolation
yes
Certification
ATEX Ex ia, Ex ic, Ex tc, Ex nA, Ex db, Ex tb
ATEX IECEx Ex ia, Ex tb
IECEx Ex d, Ex tb
CSA C/US General Purpose
CSA C/US IS, Ex ec, XP, DIP
INMETRO Ex ia, Ex d, Ex tb
NEPSI Ex ia, Ex d, Ex tb
EAC Ex ia, Ex d
UKCA Ex ia, Ex tc, Ex nA, Ex db, Ex tb
Features
- Universal input types
- RTD: Pt100, Pt200, Pt500, Pt1000, etc.
- Thermocouples: types J, K, T, E, N, R, S, B, C, D, etc.
- Resistive sensors and voltage input (Ω, mV) over appropriate ranges.
- Typical accuracy: For Pt100 in the range –50…+200 °C the accuracy is ≤ 0.1 K.
- Communication and configuration: HART® protocol, optional Bluetooth® interface for wireless display/configuration via the SmartBlue® app.
- Wiring & installation: Push-in terminals optional for tool-free wiring.
- Diagnostics: Sensor and device monitoring, diagnostics per NAMUR NE 107.
- Power supply: 10-36 V DC (typical for head / DIN-rail versions) depending on variant.
