4-20 mA temperature transmitter as head or DIN rail device with one RTD or one TC sensor input suitable for use in zone 2 (Ex ec) / Div. 2 areas. Reliability, long-term stability, high accuracy and diagnostic functions. Installation in industrial and hygienic thermometers with terminal head form B. DIN rail device for installation in control cabinets. Available with input for either RTD thermometers or for TC thermometers. Can be parameterized or pre programmed at the factory.
Benefits
- Push-in terminals for fast and tool-free wiring during installation or maintenance
- Optimization of the accuracy of the measuring point through sensor-transmitter-matching (CvD)
- Diagnostic information according to NAMUR NE107
Measuring principle
Head transmitter
Input
1x Pt100 / Pt1000, TC
Output
1 x analog 4…20 mA
Auxiliary power supply
10…36 V DC
Communication
pc-programmable
Installation
Terminal head form B / DIN rail
Accuracy
(Pt100,Pt1000, -50…+250°C) <= 0,1 K
(Pt100,Pt1000, -58…+482°F) <= 0,18° F
Galvanic isolation
Yes (TC)
Certification
DNV (GL) marine approval
ATEX Ex ec
CSA C/US General Purpose
CSA C/US NI, Ex ec
ATEX+ CSA C/US Ex ec
Features

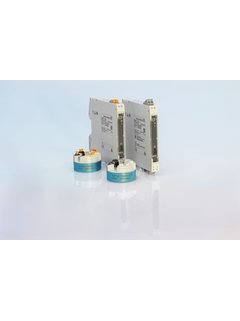

- Single-channel (one input) 4-20 mA output transmitter designed for installation either in a head (terminal head Form B) or DIN-rail.
- Supports RTD (e.g., Pt100 / Pt1000) or thermocouple (TC) sensor input, depending on variant.
- Accuracy: e.g., for Pt100 / Pt1000 in range –50…+250 °C it achieves ≤ 0.1 K.
- Diagnostics in accordance with NAMUR NE 107 for sensor status, wiring issues etc.
- Fast wiring: optional push-in terminals for tool-free wiring.
- Suitable for hazardous areas: approvals include ATEX Ex ec (Zone 2) and general purpose versions.
- Power supply: approx. 10…36 V DC (depending on variant).
