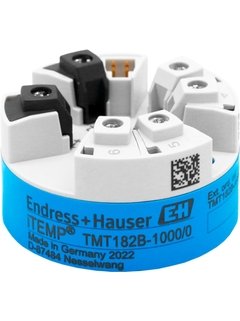

iTEMP TMT182B temperature transmitter

iTEMP TMT182B temperature transmitter

The iTEMP TMT182B temperature head transmitter is designed for applications across all process industries that require accurate temperature measurements and HART® communication. The device provides valuable additional diagnostic information and stable measurement performance, helping to improve process efficiency and stable plant operation.

Get a quote

HART® temperature head transmitter with one universal sensor input suitable for use in hazardous areas. Temperature transmitter with HART® communication for the conversion of various input signals into a scalable, analog 4-20 mA output signal. Universal input for resistance thermometers (RTD), thermocouples (TC), resistance transmitters (Ω), voltage transmitters (mV). Reliability, long-term stability, high precision and advanced diagnostics for safe operations. Installation in terminal heads form B or cabinets.

Benefits

  • Safe operation in hazardous areas; international approvals
  • Reliable operation with continuous sensor and device monitoring
  • Diagnostics information according to NAMUR NE 107
  • Ready to use: pre-programmed ex-works if required
  • Easy configuration with free software​

Measuring principle

Head transmitter

Input

1 x RTD, TC, Ohm, mV

Output

1 x analog 4…20 mA

Auxiliary power supply

10…36 V DC (standard-version)

10…30 V DC (Ex-version)

Communication

HART-protocol

Installation

Terminal head form B

Accuracy

(Pt100, -50…200 °C) <= 0,14 K

(Pt100, -58…392 °F) <= 0,25 °F

Galvanic isolation

yes

Certification

ATEX Ex ia, Ex ec

ATEX IECEx Ex ia

NEPSI Ex ia

Features

  • Universal input: supports RTDs (e.g., Pt100, Pt500, Pt1000), thermocouples (TC), resistance (Ω) and millivolt (mV) signals.
  • Output: 4-20 mA current loop with HART® communication protocol for configuration/diagnostics.
  • Installation: head-mounted (“terminal head form B”) suitable for direct mount on sensor heads.
  • High accuracy: for example, Pt100 input in range −50 °C to +200 °C has an accuracy of ≤ 0.14 K.
  • Diagnostics: supports sensor monitoring (open circuit, short circuit, wiring errors) and device self-monitoring, with diagnostics in line with NAMUR NE 107.
  • Ex / hazardous-area suitability: international approvals (ATEX, IECEx etc) for use in hazardous areas.
  • Power supply: Standard version 10-36 V DC; Ex-version 10-30 V DC.
  • Wide measurement range: e.g., for RTD inputs the device supports very wide spans (-200 °C up to +850 °C depending on sensor).
  • Galvanic isolation between input and output
