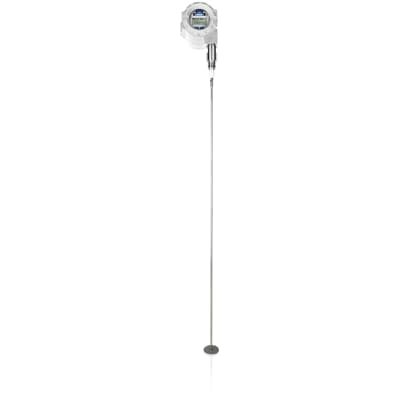

The MT5000 Series Guided Wave Radar transmitters feature a graphic display incorporated into an all digital electronics module. Using this new format K-TEK has been able to add waveform screens to the modular electronics along with easy to follow multiple choice setup menus.
The MT5000 Series Guided Wave Radar transmitters feature a graphic display incorporated into an all digital electronics module. Using this new format K-TEK has been able to add waveform screens to the modular electronics along with easy to follow multiple choice setup menus. These menus can be changed to many different languages for easy commissioning throughout the world. MT5000 Series Guided Wave Radar transmitters provide superior performance in tough applications. Pulses of microwave energy are directed to the product surface using a rigid rod or flexible cable type probe. This assembly has no moving parts and no loss of energy due to beam divergence. Multiple coupler and probe types are available to accommodate applications such as knock out drums, feed water heaters, production vessels and separators. 316L stainless steel is the standard probe material however materials such as Hastelloy C-276 and Monel are available for use in acidic or caustic services.
+/- 0.063in. /1.6mm
0.1 in. / 3 mm
-40 to 151ºF (-40 to 66ºC)
Coax Probe or in stilling well/chamber +/- 3mm
Single cable or rod +/-5mm to 15.24m (50.0ft)/ +/-25mm to 66m (217ft)
+/-1.0in / 25mm
13.5 to 36 Vdc – 4-20mA HART loop powered
9 to 32 Vdc – FOUNDATION fieldbus
4-20 mA HART
FOUNDATION fieldbus
ITK 5.1.0 Compliant
5 AI and 1 PID blocks
15.8 mA quiescent current draw
LAS Capable
4-20mA at 36.0 Vdc – 3.6mA 0.13 watts; 21mA 0.76 watts at 13.5 Vdc – 3.6mA 0.046 watts; 21mA 0.28 watts
(4.0mA) at 36.0 Vdc 0.144 watts at 13.5 Vdc 0.054 watts
FOUNDATION fieldbus 0.5 watts maximum
4-20mA at 36.0 Vdc and 21mA, 1740 ohms*
*maximum with HART communication is 700 ohms at 13.5 Vdc and 21mA, 645 ohms
(4.0mA) < 650 to 700 ohms
FOUNDATION fieldbus 43.6 ohms/km @ 20 C
Diode in series with loop
2 outputs per second
Field adjustable, range 0.1 to 36 seconds
NE43, Jumper selectable upscale (21 mA) or downscale (3.6 mA)
0 to 100% RH, non-condensing
0 point linearization table available
Field Selectable Units in Feet, Inches, Millimeters, Centimeters, Meters or Percentage and Waveform Screens
Dual compartment
Cast low copper aluminum with polyester powder coat or 316 stainless steel
1/2” FNPT, M20 adapter and bus connectors available
IP66, TYPE 4X
