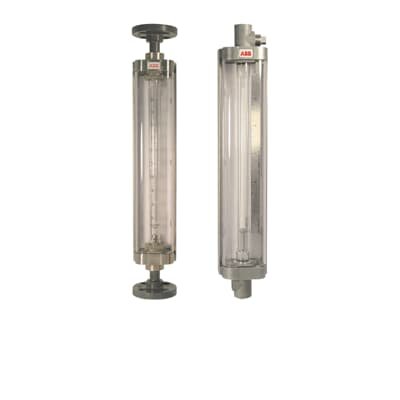

Glass tube variable area flowmeter FGM4500 V/A Master

Glass tube variable area flowmeter FGM4500 V/A Master

The V/A Master meter is a glass tube variable area flowmeter providing visual indication of flow rate over a 12-1/2 to 1 range on a linear scale. Meter seals are either O-ring or packing gland to suit the application. The glass tube can easily be removed for range change or for cleaning. Meters are available with optional one or two bi-stable alarms systems.

Get a quote

Designed for flowrate measurements in many industries including system manufacture, food, water treatment plants and chemical. Aggressive fluid applications are possible because the fluid wetted parts can be made from a variety of metals and

  • Design type FGM4500 (10A4500)– O-Ring Seals Design

With Horizontal/vertical threaded or flanged connections

  • Design type FGM4650(10A4650)- Packing Gland Design

Flanged connections

With Horizontal/vertical threaded or flanged connections

  • Easy range change and cleaning-no removal from the line required.
  • Excellent wide angle visibility of flow rate over a linear scale.

Application

Clean, low viscosity liquids and gases

Mounting

Vertical, Horizontal in line

Connections

1/2 in. to 1-1/2 in., threaded, or flanged

Flow ranges

Water flows: 12 -5400 GPH

Air flows: 48-8940 SCFH

Flow turndown

Typically 12-1/2:1

Operating pressure

Up to 300 PSIG

Operating temperature

Up to 250F (120 °C)

Nominal scale length

10 in.

Accuracy

2% Full Scale

Alarms

Inert gas switches, up to 2 off

Tube material

Borsilicate 3.3 glass

Float material

Stainless steel, PVC, Tantalum, HastelloyTM, PTFE, Monel, Others

Fitting material

Stainless steel, PVC

Features

  • Provides visual indication of flow rate on a linear scale over a turndown of about 12½ : 1.
  • Removable glass tube — allows range change or cleaning without removing the meter from the line.
  • Meter seal options: either O-ring seals (design type FGM4500 / 10A4500) or packing gland seals (design type FGM4650 / 10A4650) to suit different applications.
  • Mounting options: horizontal or vertical, with threaded or flanged connections.
  • Intended for clean, low-viscosity liquids and gases.
  • Maximum water flows up to ~5,400 GPH (≈20,400 l/h) in certain sizes.
  • Operating pressure up to ~300 psig (≈20.7 bar) in some configurations.
  • Maximum operating temperature around ~250 °F (≈120 °C) for standard version.
  • Tube material: borosilicate 3.3 glass.
  • Float/ wetted-part material options are wide (stainless steel, Monel, Hastelloy, tantalum etc) to suit various fluids / environments.
  • Optional alarm systems: one or two bi-stable alarms for flow condition monitoring.
