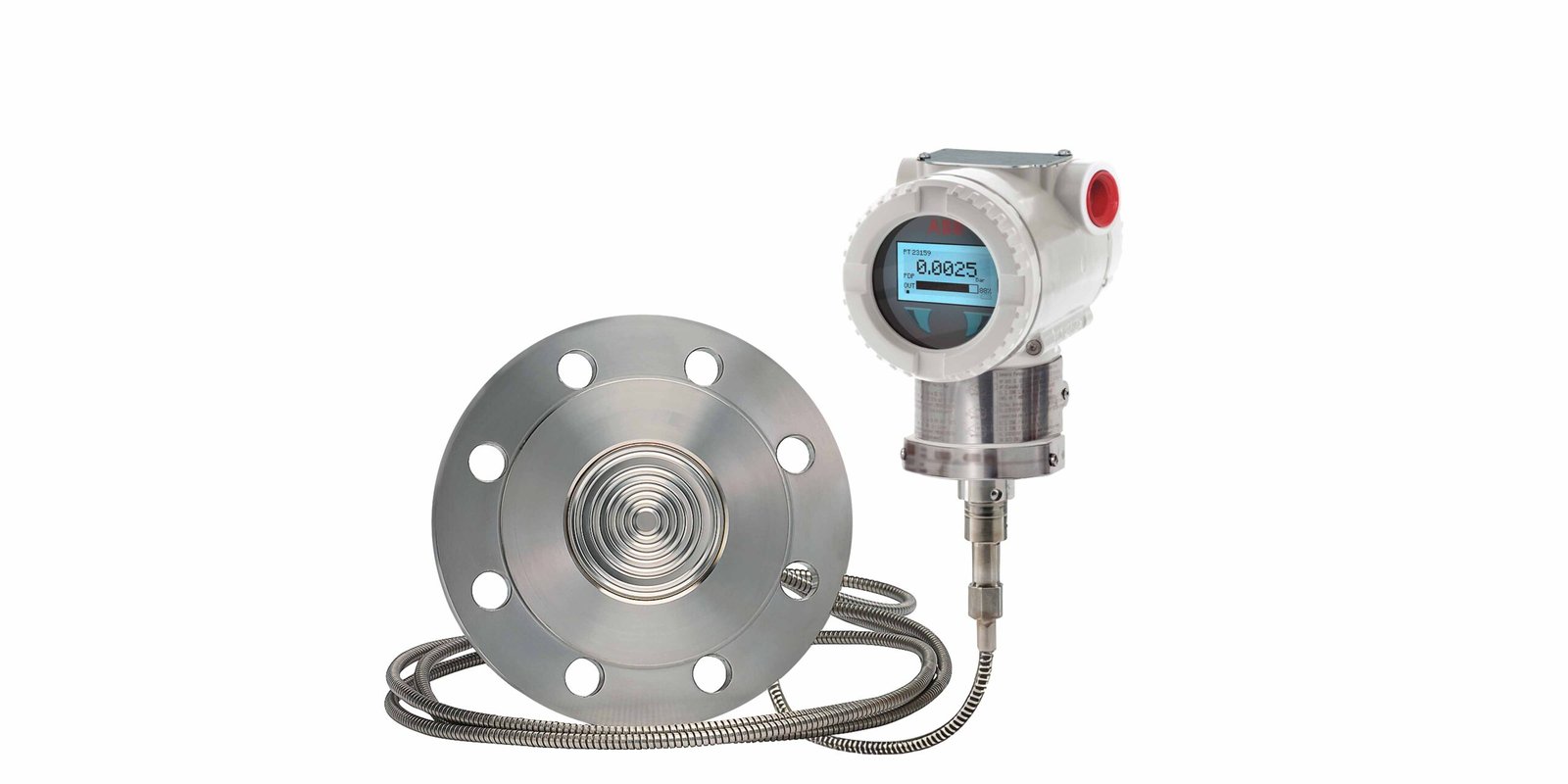

With the new Backlight display and optional Bluetooth, Digital Advanced Diagnostic feature and the QR code ensure a top-level usability experience. Users can easily find the right application solution for their measurement needs with an excellent precision for pressure, level and flow measurements with advanced materials availability to withstand highly critical process fluids and hydrogen permeation condition (H-Shield). The PGD300 have a straightforward accuracy performance level +/- 0.055% of span, full process compatibility to highest industry standard (e.g. NACE, ASME, etc.), manifolds M26 mounting option and combined multiple certifications (i.e. ATEX/IECEx/CSA North America and others). SIL 2/3 certificate (COMING SOON) according to IEC 61508 standad for use in safety instrumented systems for SIL2 applications in a single transmitter configuration (1oo1) and for SIL3 applications in a redundant configuration (1oo2). PGD300 features WirelessHART (COMING SOON) communication protocol allowing the addition of pressure measurement points throughout your operation. You can now monitor hard-to-reach locations and keep your employees out of dangerous and hazardous areas. The transmitters have a battery life of about 10 years at 32 sec update rates, delivering a very cost-effective and reliable solution to monitor your process assets. Shorten installation times by eliminating complex wired infrastructures, and lower overall implementation costs of process measurement, with ABB wireless devices featuring WirelessHART communications – Measurement made easy. The PGD300 with Modbus® (COMING SOON) protocol of communication provides the user precise measurements of gauge pressure and optional process temperature (the latter by means of an externally connected Pt100 resistance temperature detector) in a single device. Information is available to any host device that can communicate using Modbus® protocol.
Base accuracy
0.055% of calibrated span
Span limits
0.2 … 60000 kPa; 0.8 in. H2O … 8700 psi
Output signal
Multiple protocol availability offering interchangeability and transmitter upgrade capabilities
4 to 20 mA, HART – Including Easy Set up
Modbus RS 485 (COMING SOON)
Low-power consumption 1 to 5 V DC (COMING SOON)

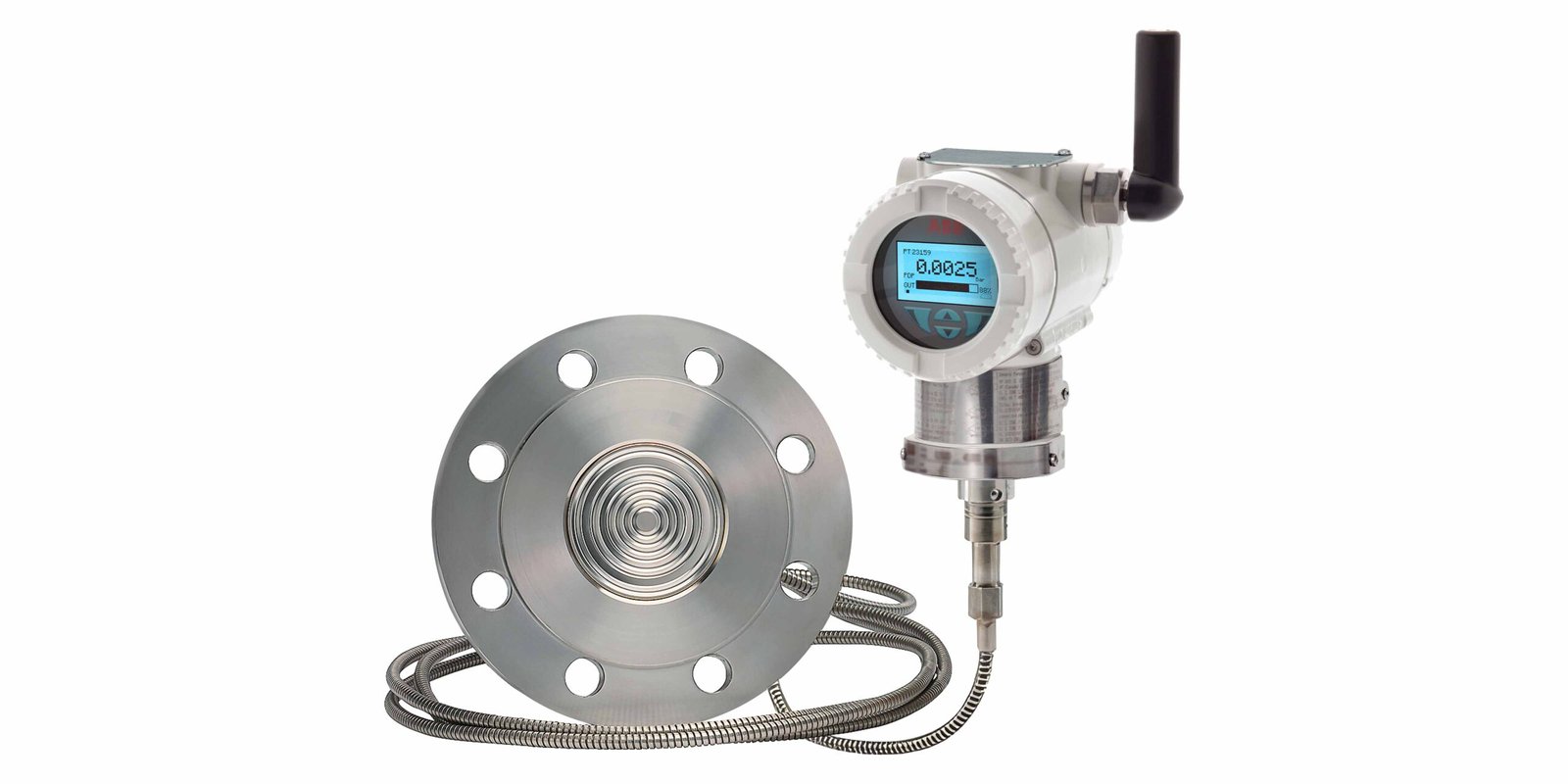

WirelessHART (COMING SOON)
Easy local configuration via keys on LCD indicator
Backlit display with optional Bluetooth (COMING SOON)
Conforms
to SIL2 / SIL3 acc. to IEC 61508 (PENDING)
Full compliance with PED Category III
Features
- Ideal when you need a gauge pressure transmitter that works with a diaphragm seal, allowing measurement of challenging processes (high temp, aggressive media, open tank level) while protecting the sensor.
- Excellent accuracy combined with advanced diagnostics and modern communication options makes it suited for critical process applications.
- Flexible in terms of materials and configurations, which is helpful if you operate in demanding conditions (like chemical, oil & gas, or food/biotech environments).
