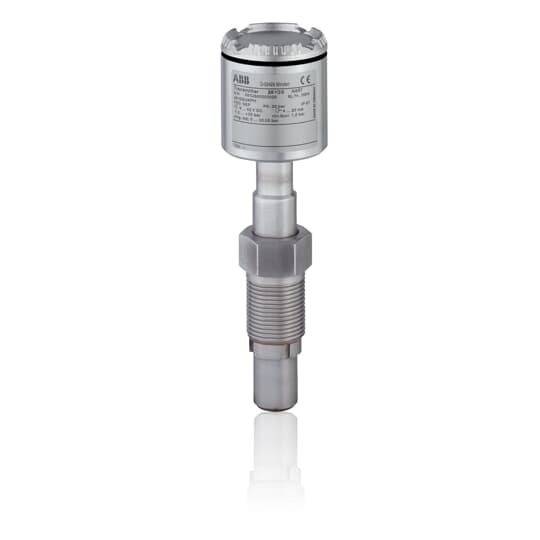

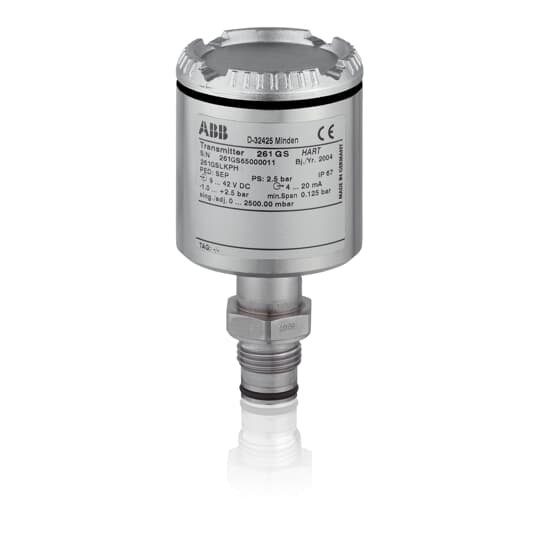

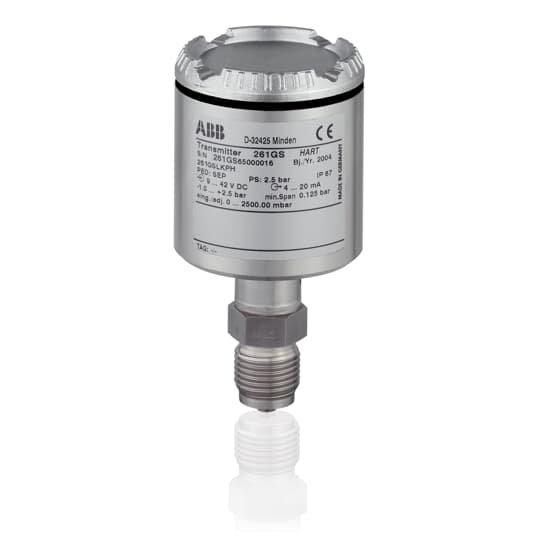

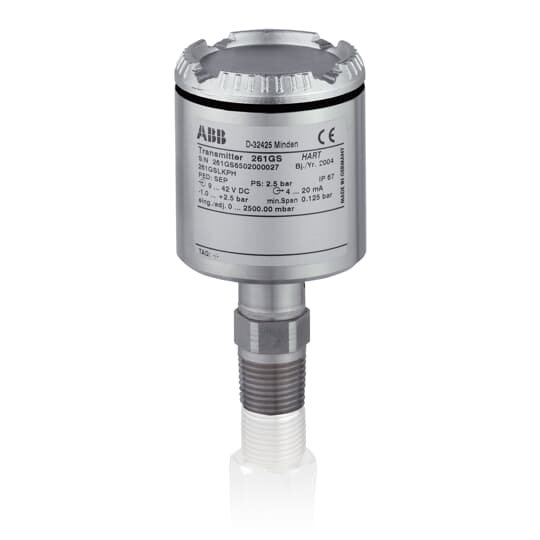

Gauge pressure transmitter 261GS

The compact transmitter class for gauge pressure within the 2600T series. The reliable sensing system with the very latest digital technologies, provides a large turndown ratio of up to 20:1.

Get a quote

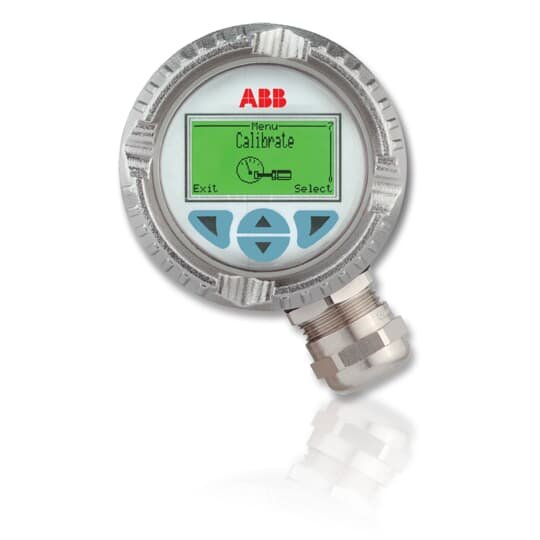

The compact, robust transmitter housing is made of 316 stainless steel as a standard. Due to its high corrosion resistance it can be used in a wide variety of process and ambient conditions without any problems. The user friendly display allows simple and intuitive local transmitter operation. Full device support, including diagnostic / maintenance information is guaranteed via the Device Type Manager software used in either a stand alone or system engineering tool. The transmitter provides local zero and span adjustments even without display.

Base accuracy

± 0.1 %

Span limits

6 to 60000 kPa; 24 inH2O to 8700 psi

Output signal

4 to 20 mA, HART

Conforms to SIL2 acc. to IEC 61508 / IEC 61511

Full compliance with PED Category III

Features

Excellent accuracy and turndown flexibility, making it suitable for many process applications.
Rugged design with good corrosion resistance and suitability for harsh environments.
Full digital communication with HART allows integration into modern automation systems.
Flexible configuration and optional display/local adjustment.
Strong certifications and suitability for safety-relevant installations (SIL2, PED).
