The compact transmitter class for gauge pressure and level with frontbonded diaphragms works within a broad selection of variants, options, fill fluids and wetted materials.

Get a quote

The compact, robust transmitter housing is made of 316 stainless steel as a standard. Due to its high corrosion resistance it can be used in a wide variety of process and ambient conditions without any problems. The user friendly display allows simple and intuitive local transmitter operation. Full device support, including diagnostic / maintenance information is guaranteed via the Device Type Manager software used in either a stand alone or system engineering tool. The transmitter provides local zero and span adjustments even without display.

The wide range of available process connections meets even special industrial requirements:

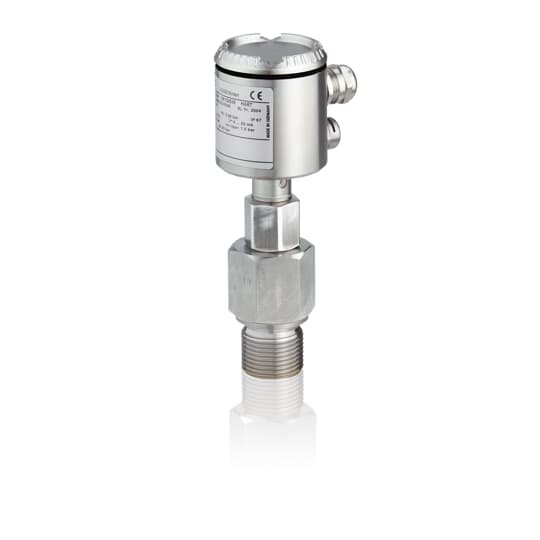

  • Threaded connections: e.g. for the power, pulp/paper, or oil and gas industries

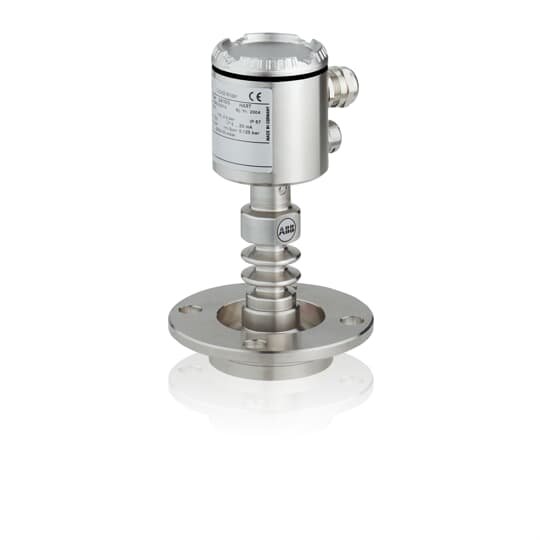

  • Flange connections: e.g. for the chemical industry

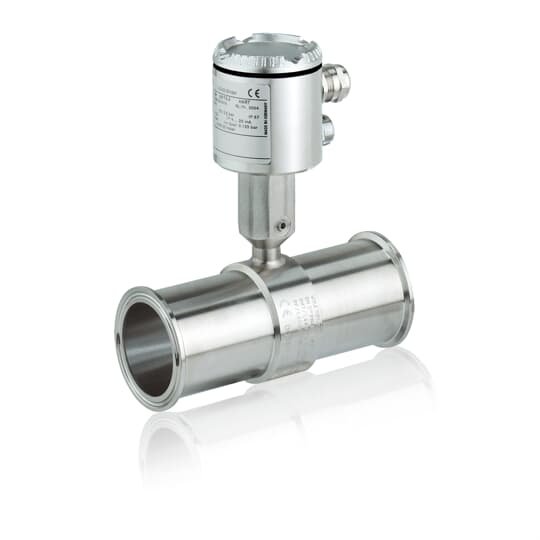

  • Hygienic connections: e.g. for the pharmaceutical or food and beverages industries

Base accuracy

± 0.1 %

Span limits

6 to 60000 kPa; 24 inH2O to 8700 psi

Output signal

4 to 20 mA, HART

Conforms to SIL2 acc. to IEC 61508 / IEC 61511

Full compliance with PED Category III

Features

  • Compact, rugged stainless-steel 316 housing as standard.
  • Designed to measure gauge pressure or level (via hydrostatic pressure) using a front bonded diaphragm.
  • Wide measuring range: from approx. 6 kPa to 60 000 kPa (24 inH₂O to 8700 psi), depending on model.
  • Output signal: 4–20 mA with HART communication.
  • Safety compliance: suitable for SIL2 applications according to IEC 61508 / 61511.
  • High corrosion and chemical resistance for use in harsh industrial environments.
  • Optional LCD display for pressure indication, current output (%), and diagnostics.
  • High accuracy: up to ±0.1% of calibrated span.
  • Excellent long-term stability and easy configuration using HART or local keys.
