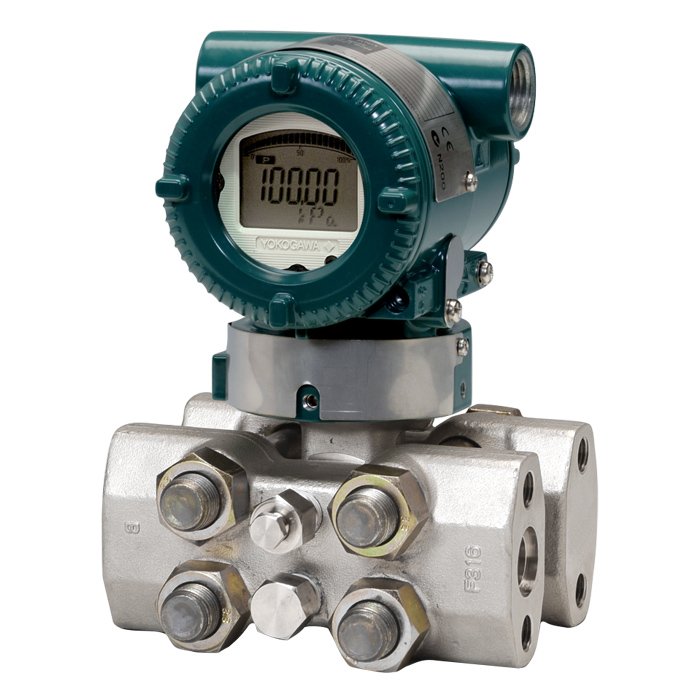

EJX440A Traditional-mount High Gauge Pressure Transmitter

Diaphragm Seal System consists of gauge pressure or differential pressure transmitter with one or two diaphragm seal. Suitable for various kinds of pressure measurement. Ruggedly constructed differential pressure transmitter can help your plant reduce failures. Yokogawa pressure transmitters have construction features that are designed to allow it to outlive your plant. Four-bolt pressure retaining design, Active DPharp sensor, Teflon coated 316L stainless steel flange gasket, and dual seal certified to ANSI/ISA 12.27.01 – all design features to extend the life of the transmitter.

Get a quote

All Yokogawa pressure transmitters are designed and certified to IEC61508:2010 Parts 1 through 7 and IEC61511:2004 Parts 1 through 3. They are certified for single transmitter use in SIL 2 safety applications and dual transmitter use in SIL 3 safety applications with no special option required. With Yokogawa’s transmitters, no longer will you have to maintain two seperate inventories – one for production applications and one for safety applications. Diaphragm Seal System can provide the solution. For measurement of:

high/low temperature fluids
highly corrosive/high viscosity fluids
the fluids which may cause clogging of impulse piping in the low temperature
toxic fluids
Various process connection size

Measurement Types

Primary Variable Gauge Pressure

Reference Accuracy

Primary Variable ±0.04% of Span

Stability

Primary Variable ±0.1% of URL per 15 years

Response Time

Primary Variable 90 msec

Rangeability

Primary Variable 200:1

Features

± 0.04% Accuracy
± 0.1% per 15 years Stability
90 ms Response Time
Exida and TUV SIL 2/3 Certified
Local Parameter Setting (LPS)
