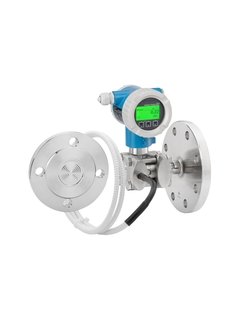

Specialist with one or two capillaries for accurate differential pressure measurement. Intuitive and clear wizards for commissioning, proof tests and verification.
- Pressure measuring ranges up to 40 bar (600 psi)
- Process temperatures up to 400 °C (752 °F) with diaphragm seal
- Static pressure: up to 160 bar (2400 psi)
- Accuracy: up to +/- 0.075%
Benefits
- Wireless control of the device in hard to reach areas with the SmartBlue App and a Bluetooth® connection
- Reduce systematic failures – error free SIL commissioning and instrument guided proof testing
- With Heartbeat Technology you are able to verify the health of the device while the process is running. This increases plant availability.
- Simple indication of device status – display changes from green to red when diagnostic messages occur
Supply voltage
Ex d, Ex e, non-Ex:
10.5…35V DC
Ex i: 10.5…30V DC
Reference Accuracy
Standard:
up to 0.1 %
Long term stability
0.025 % of URL/ year
0.05 % of URL/ 5 years
0.10 % of URL/ 10 years
Process temperature
-70°C…+400°C
(-x°F…+752°F)
Ambient temperature
-40°C…+85°C
(-40°F…+185°F)
Measuring cell
100 mbar…40 bar
(1.5 psi…600 psi)
Smallest calibratable span
5 mbar (0.075 psi)
Vacuum resistance
50 mbar (0.73 psi)
Max. Turn down
100:1
Max. overpressure limit
240 bar
(3600 psi)
Process connection
Thread: MNPT1/2, G1/2
Flange: NPS 2″…4″, DN50…100
Material process membrane
316L, AlloyC,
Tantal,
Monel
PTFE
Gold
Material gasket
PTFE, FKM,
EPDM, FFKM
Fill fluid
Silicone oil,
inert oil,
vegetable oil,
low- / high temperature oil
Material housing
Aluminium, 316L
Communication
4…20 mA HART
PROFIBUS PA
PROFINET with Ethernet-APL
Bluetooth® wireless
technology and app (optional)
Certificates / Approvals
ATEX, CSA, IECEx, JPN Ex, INMETRO, NEPSI, UK Ex
Safety approvals
SIL
Design approvals
EN10204-3.1,
NACE MR0175,
NACE MR0103
Specialities
Heartbeat Technology,
Bluetooth® Operation and maintenance SmartBlue App,
LED Module,
RFID TAG for easy identification,
Plug and play functionalities,
HistoROM
Measuring range (differential pressure): approx. 100 mbar…40 bar (≈1.5 psi…600 psi). Process temperature range: -40 °C…+400 °C (-40 °F…+752 °F) when used with diaphragm seal. Static pressure / over-pressure limit: up to ~160 bar (≈2400 psi) in some configurations. Accuracy: Standard version up to about ±0.1 % of span. Wetted materials / membrane materials: 316L stainless steel, Alloy C, Tantalum, Monel; optional PTFE or gold coating. Connectivity & diagnostics: 4-20 mA output with HART; optional wireless Bluetooth via SmartBlue App; diagnostic functions including “Heartbeat Technology”.
