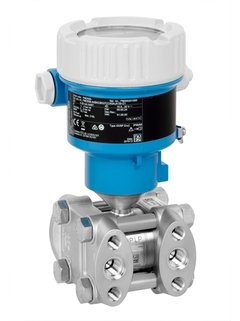

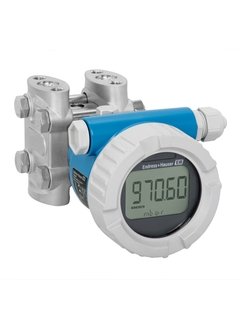

Deltabar PMD55B – differential pressure transmitter
Deltabar PMD55B – differential pressure transmitter

Deltabar PMD55B – differential pressure transmitter

This transmitter belongs to the new Deltabar generation. It is robust and easy to operate either locally or remotely. The transmitter can be controlled wireless via app on a mobile device using a secure Bluetooth connection. The PMD55B allows condition-based maintenance which increases efficiency in technical service significantly.

Get a quote

Transmitter with metal membrane for differential pressure monitoring in liquids or gases. Intuitive and clear wizard for commissioning. The software is designed to simplify the handling. Intuitive wizards guide you through the setup and proof testing of the device which minimizes operating errors.

  • Pressure measuring range: up to 40 bar (600 psi)
  • Static pressure up to 250bar (3750psi)
  • Accuracy: up to +/-0.055%

Benefits

  • Wireless control of the device in the process area with the SmartBlue App without interrupting the process
  • Reduce on site accidents and protect equipment when instruments are in difficult to reach areas
  • Reduce systematic failures – error free SIL commissioning and instrument guided proof testing

Specialities

Bluetooth® Operation and maintenance with SmartBlue App,

RFID TAG for easy identification,

Plug and play functionalities

Supply / Communication

Ex d, Ex e, non-Ex::

10.5…35V DC

Ex i: 10.5…30V DC

Accuracy

Standard:

up to 0.075 %

Platinum:

up to 0.055 %

Long term stability

0.05 % of URL/ year

0.13 % of URL/ 5 years

0.23 % of URL/ 10 years

Ambient temperature

-40°C…+85°C (-40°F…+185°F)

Process temperature

-40°C…+110°C (-40°F…+230°F)

Process pressure / max. overpressure limit

250 bar (3750 psi)

Pressure measuring range

10 mbar…. 40 bar (0.15 psi… 600 psi)

Main wetted parts

316L, AlloyC

Process connection

NPT 1/4-18, RC1/4″

Communication

4…20 mA HART

PROFINET with Ethernet-APL

Bluetooth® wireless

technology and app (optional)

Certificates / Approvals

ATEX, CSA, IECEx, JPN Ex, KC, INMETRO, NEPSI, UK Ex

Safety approvals

SIL

Design approvals

EN 10204-3.1,

NACE MR0175,

NACE MR0103,

AD2000

Drinking water approvals

NSF, KTW

Application limits

None

Type: Differential pressure transmitter with a metal sensor (welded metallic membrane) for measuring pressure differences. Accuracy: Typical reference accuracy ±0.10 % of span; in “PLATINUM” version up to ±0.075 %. Measuring range: From very low differential pressures (~0.5 mbar) up to about 40 bar. Turn-down ratio: Up to 100:1. Process temperature / ambient: Ambient approx –40 °C to +85 °C (for standard versions). Process connection temperatures vary. Output / communications: Typical 4-20 mA + HART; available also with PROFIBUS PA / FOUNDATION Fieldbus as options. Approvals / Safety: Certified up to SIL2 (functional safety) according to IEC 61508 / IEC 61511. Materials: Wetted parts in 316L stainless steel; membranes may be 316L or Alloy C. Application range: Flow (volume or mass) measurement (in combination with primary elements), level/volume/mass measurement in liquids, differential-pressure monitoring (e.g., filters/pumps).
