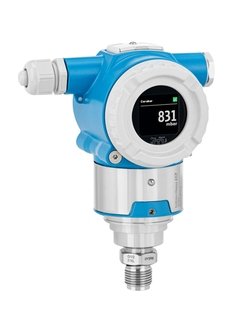

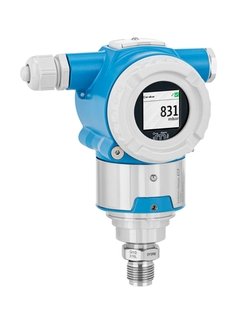

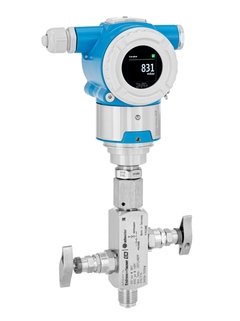

Pressure transmitter with metal membrane for highly accurate measurement of liquids and gases. The Cerabar PMP50 is a pressure transmitter with metal membrane for measurement of liquids and gases. It is optimized for standard applications and offers intuitive and safe operating functions.

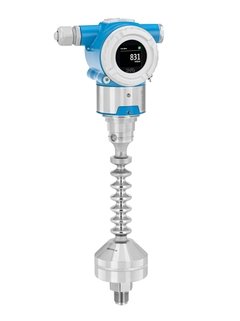

Pressure transmitter with metal membrane for accurate measurement in liquids or gases. Available with diaphragm seals. Intuitive and clear wizard for commissioning. Pressure measuring range: up to 400 bar (6000 psi). Process temperatures up to 400°C (752°F) with diaphragm seal. Accuracy: up to +/-0.055%.
Ex d, Ex e, non-Ex:
10.5…35V DC
Ex i: 10.5…30V DC
Standard:
up to 0.065 %
Platinum:
up to 0.055 %
0.1 % of URL/ year
0.2 % of URL/ 5 years
0.25 % of URL/ 10 years
Standard:
-40°C…+125°C
(-40°F…+257°F)
Diaphragm seal:
-70°C…+400°C
(-94°F…+752°F)
-40°C…+85°C
(-40°F…+185°F)
1 bar…400 bar
(14.5 psi…5800 psi)
20 mbar (0.29 psi)
50 mbar (0.73 psi)
20:1
600 bar (9,000 psi)
Thread:
G1/2, NPT1/2
Flange:
DN25…DN80,
NPS 1″…3″
316L, AlloyC, Gold
PTFE
Silicone oil, high temperature oil,
Inert oil
Aluminum, 316L
4…20 mA HART
ATEX, FM, IECEx, JPN Ex,
INMETRO, NEPSI
SIL
EN10204-3.1,
NACE MR0103,
NACE MR0175
Zero/Span buttons,
Testclamp,
RFID TAG for easy identification
