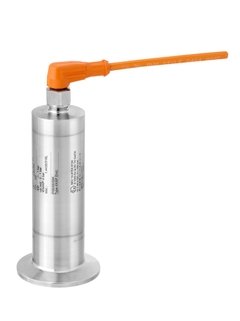

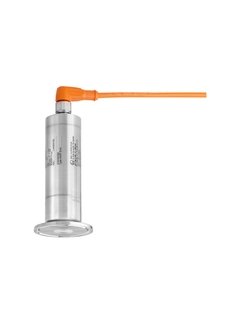

Cost-effective pressure transducer with fully welded design for the food & beverage industry. Pressure transducer to measure absolute or gauge pressure in gases or liquids.
- Process connections: Flush-mounted hygienic connections, flush mounted thread connections
- Process temperature: -10°C to +100°C (-40°F to +212°F) and +135°C (+275°F) for max. 1h
- Process pressure: 400mbar to +40bar (6 to 600psi)
- Accuracy: ±0.3% of span
- International explosion protection certificates, hygienic certificates
Benefits
- Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges
- IO-Link reduces costs and complexity due to easy configuration via simple configuration tools or through the engineering system
- Fully welded process connections maximize process safety by minimizing the use of gaskets
- Enhanced process availability is ensured by the stringent use of 316L material and the possibility of IP 69 ingress protection for washdown conditions, as well as the high reproducibility and long-term stability of the product
- A high flexibility of use and therefore lower storage costs are guaranteed as the PMP23 is suitable for CIP / SIP cleaning
- The PMP23 can support the need for hygienic documentation and traceability in the plant as certification such as EHEDG, 3-A or (EC)1935/2004 are available among other relevant certificates and manufacturing declarations
Supply voltage
10…30 VDC
Reference Accuracy
0.3 %
Long term stability
0.2 % of URL/year
Process temperature
-10 °C…+100 °C
(+14 °F…+212 °F)
+135 °C for 1 h
(+275 °F for 1 h)
Ambient temperature
-40 °C…+85 °C
(-40 °F…+185 °F)
Measuring cell
+400 mbar…+40 bar
(+6 psi…+600 psi)
Max. overpressure limit
160 bar (2400 psi)
Process connection
Threads:
G1, M24
Process connection hygienic
DIN11851,
Clamp,
SMS,
Varivent,
Universal adapter
Communication
4…20 mA
IO- Link
Certificates / Approvals
ATEX, FM, CSA, IEC Ex, NEPSI, UK Ex
Design approvals
EN 10204-3.1Final inspection report
Cleaned from oil + grease
Surface roughness measurement
Hygienic approvals
3A, EHEDG
EG1935/ 2004
Features
- Very compact design → easy installation and saves space.
- Customized measuring ranges possible (up to 40 bar).
- IO-Link makes configuration easier and potentially reduces engineering/setup cost.
- Suitable for CIP / SIP cleaning (sanitary processes).
- High process safety thanks to fully welded design (minimal gaskets).
- Good long-term stability & reproducibility, thanks to 316L and a robust design.
- High process availability due to hygienic design and reliable sensor construction.
